10. Physical specifications
Dimensions: (L / W / H): 100 x 74 x 36 mm
Weight: 0.25 Kg (no batteries)
Power consumption: 90 mA (3 Volts, typical)

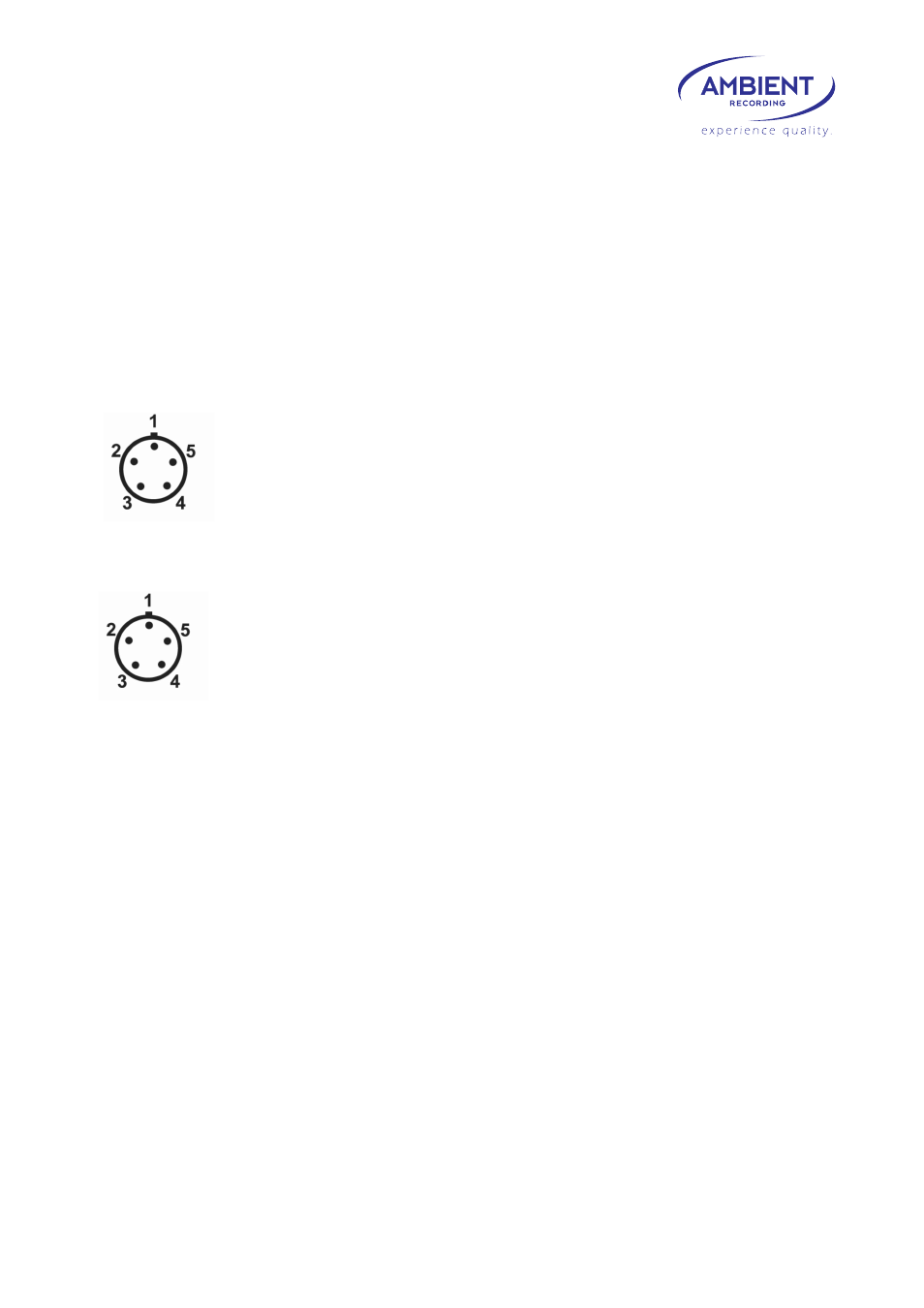

Connectors:
“A”: Lemo series 0B 5-pin (matching connector FGG/JGG.0B.305.CLADxx)
pin 1: ground
pin 2: LTC IN
pin 3: ASCII IN / OUT
pin 4: Tune reference 1.92 MHz out / DC-IN 5 to 18 Volts
pin 5: LTC OUT
“B”: Lemo series 0B 5-pin (matching connector FGG/JGG.0B.305.CLADxx)
pin 1: ground
pin 2: LTC IN
pin 3: ACN / RS232 TX
pin 4: ACN / RS232 RX
pin 5: LTC OUT / 3.3 Volts DC OUT
SYNC:
BNC coax 75 Ohms / 2x 75 Ohms parallel selectable
Antenna: SMA-F
USB: Mini-B 5-pin
