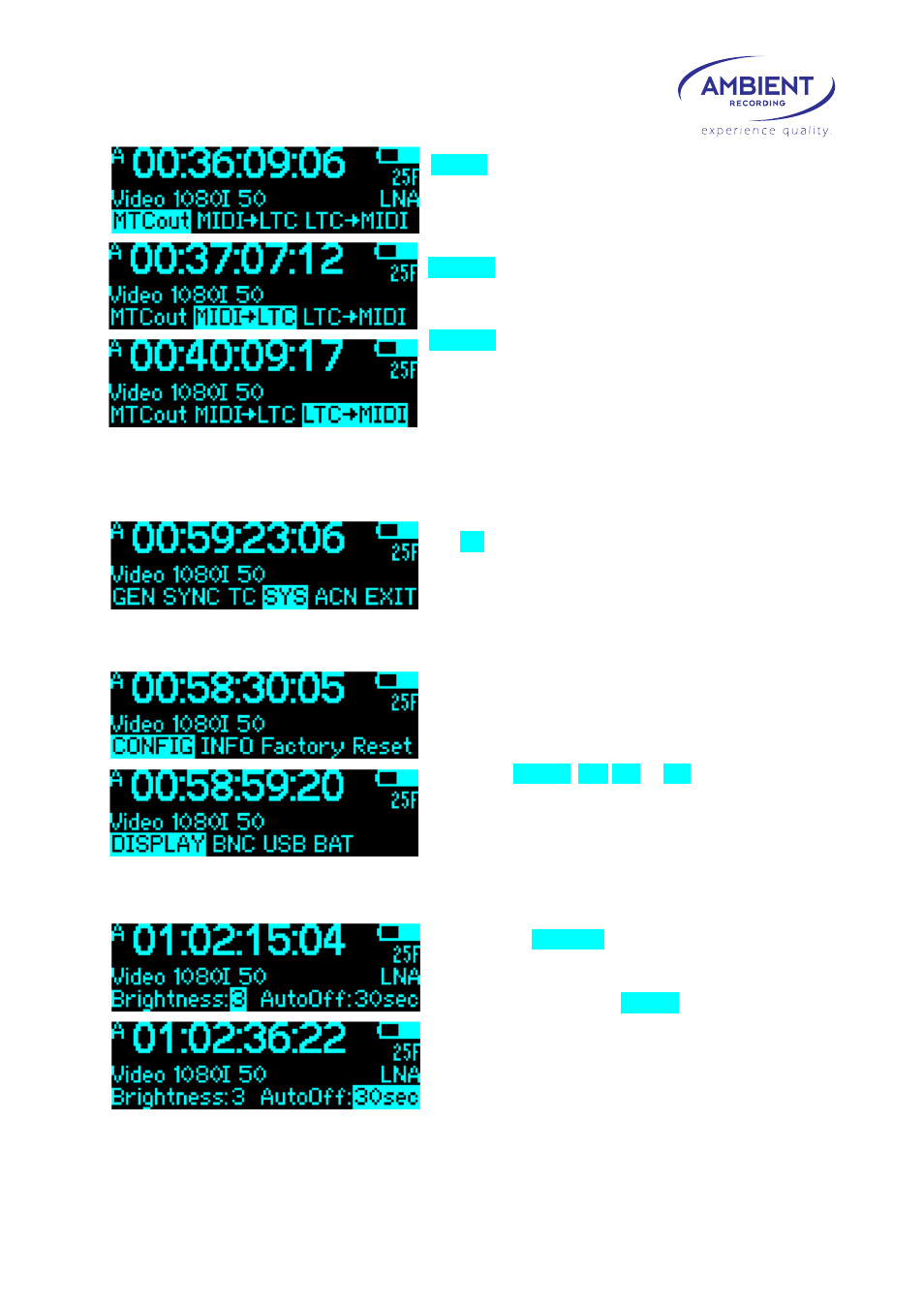

MTCout: this is the default mode. The ACL 204 always
puts out MTC, unless the USB port is set to COM (see
SYS > Config > USB).
MIDI>LTC: MTC received through USB will be converted
into LTC and put out on both Lemo sockets, pin 5.
LTC>MIDI: LTC received on Lemo/TC pin 2 will be
converted and put out as MTC via USB.
SYS MENU
The SYS menu serves to configure various parameters,
in this release version the display behavior and the
BNC sync signal impedance are set. Push the config
switch to enter.
SYS > CONFIG
Enter the configuration by pushing in the config switch
Navigate to DISPLAY, BNC,USB or BAT, push the config
switch to select.
SYS > CONFIG>DISPLAY
Adjust display brightness from 1 to 10 toggling the
config switch left/right. Push in to select value.
The curser will jump to the Auto-off settings:
Select after what time the display shuts off after
entering the main operation display.
Choices are:
Never – 5 seconds – 30 seconds – 1 minute – 5 minutes
Select by toggling the config switch left/right. Push in to select value.
