SYNC MENU
The SYNC menu lets you set the sync signal format,
type and rate. Select the different settings by pushing
the config switch. Navigate by toggling the config
switch left or right.
“VIDEO” – selects a genlock video sync signal. Use this to clock video cameras (and some advanced
audio recorders)
“AUDIO” - selects a wordclock or black audio sync
signal. Use this to clock most professional audio
recorders.
“PPF” is a pulse per frame to trigger certain cameras.
“OFF” – deactivates any sync signal generator, reducing the power consumption by almost 50%. Use
this if time code only is required.

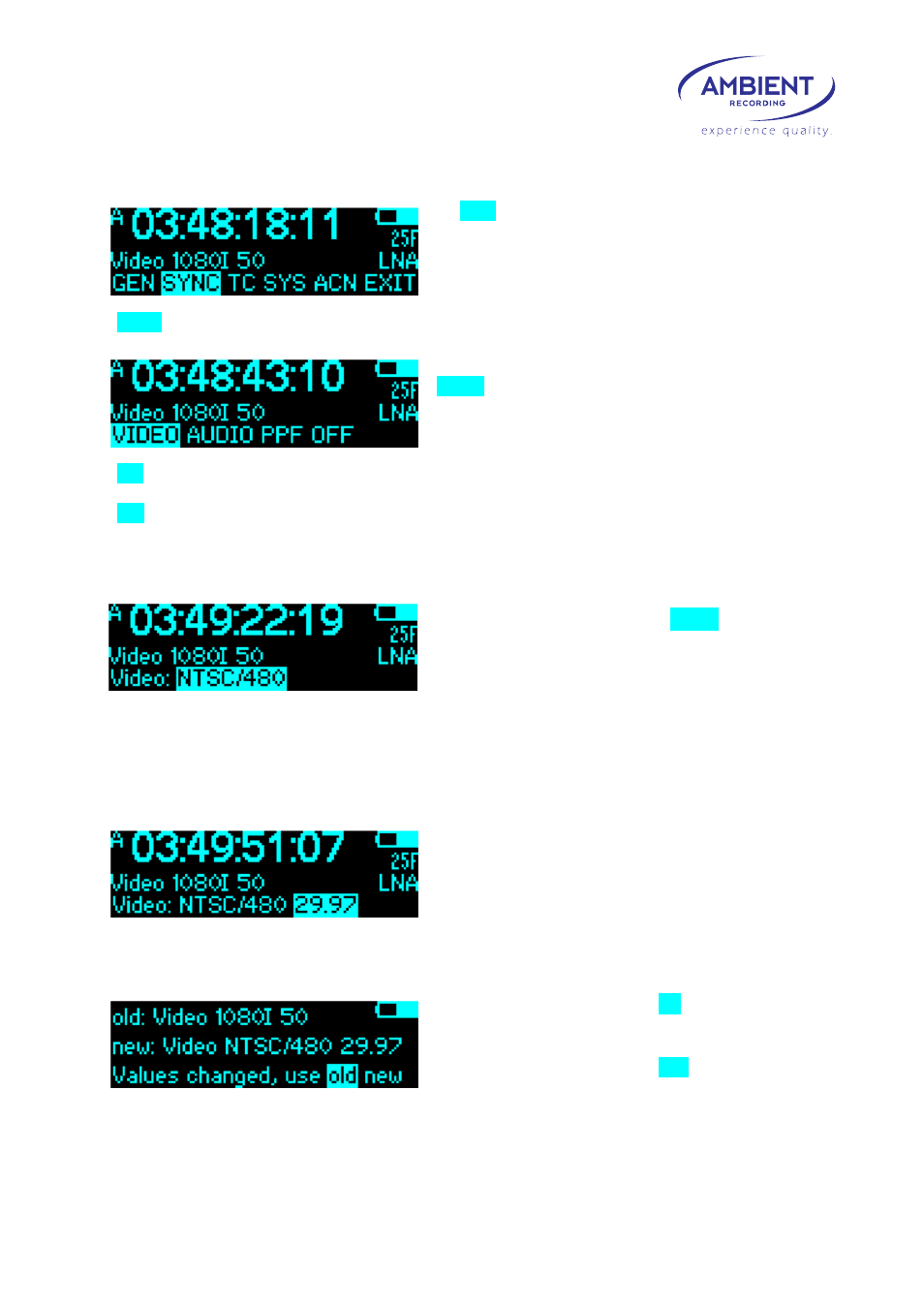

SYNC>VIDEO
Pushing the config switch while VIDEO is
highlighted takes you to the genlock settings. The
curser is on the signal type. Change by toggling
left/right. Select by pushing the config switch.
Types available:
NTSC (480i), PAL (576i), 720p, 1080i, 1080p, 1080PsF
Pushing the config switch selects and takes you to the rates setting.
Rates available:
23.976, 24, 25, 29.97, 30, 50, 59.97, 60
pictures per
second.
Not all rates are available with all of the signal types,
only those which are specified by SMPTE / EBU / ITU.
Pushing the config switch selects. If any changes have been selected, you will be asked to confirm:
Pushing the config switch while “old” is highlighted
discards the changes and returns to the main menu.
Pushing the config switch while “new” is highlighted
will set the sync signal to the selected format.
