10 www.ambient.de

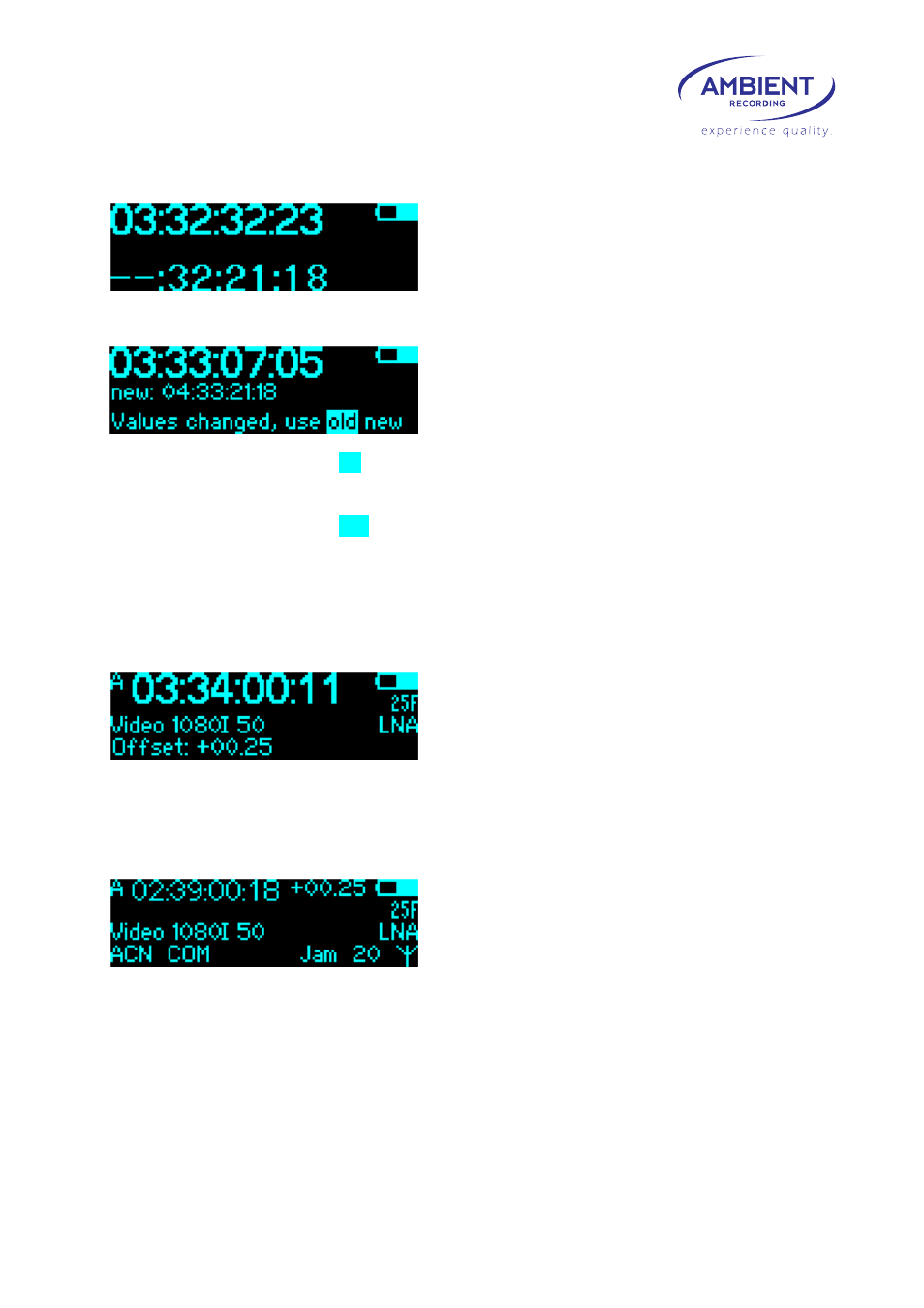

GEN>EDIT
In this screen, you can edit a time code value manually.
Decrease or increase by toggling left/right. Holding
left/right is fast backward/ forward. Push to select.
Pushing the config switch while on the frames position
sets the time. To avoid inadvertently changing the time code, you will be asked:
Pushing the config switch while “old” is highlighted discards the changes and returns to the main
menu.
Pushing the config switch while “new” is highlighted will set the generator to the selected value.
CAUTION! Resetting the generator will restart the video or audio sync signal, doing this
while recording will result in a corrupted file.
GEN>OFFSET
An offset can be entered between the jammed time
code and the time code on the output of the ACL 204.
Use this to compensate the processing delay that some
file base cameras produce.
This shifts only the time code, the sync signal stays locked to the frame start of the jammed time
code running in background.
The offset has a range of +/- 10 frames in 0.05 frames steps (equals 2 ms at 25 fps).
The selected offset is displayed next to the time code
in main window and menus.
