4 Rockwell Automation Publication GMC-RM005B-EN-P - September 2013
Kinetix 3 Drive Systems

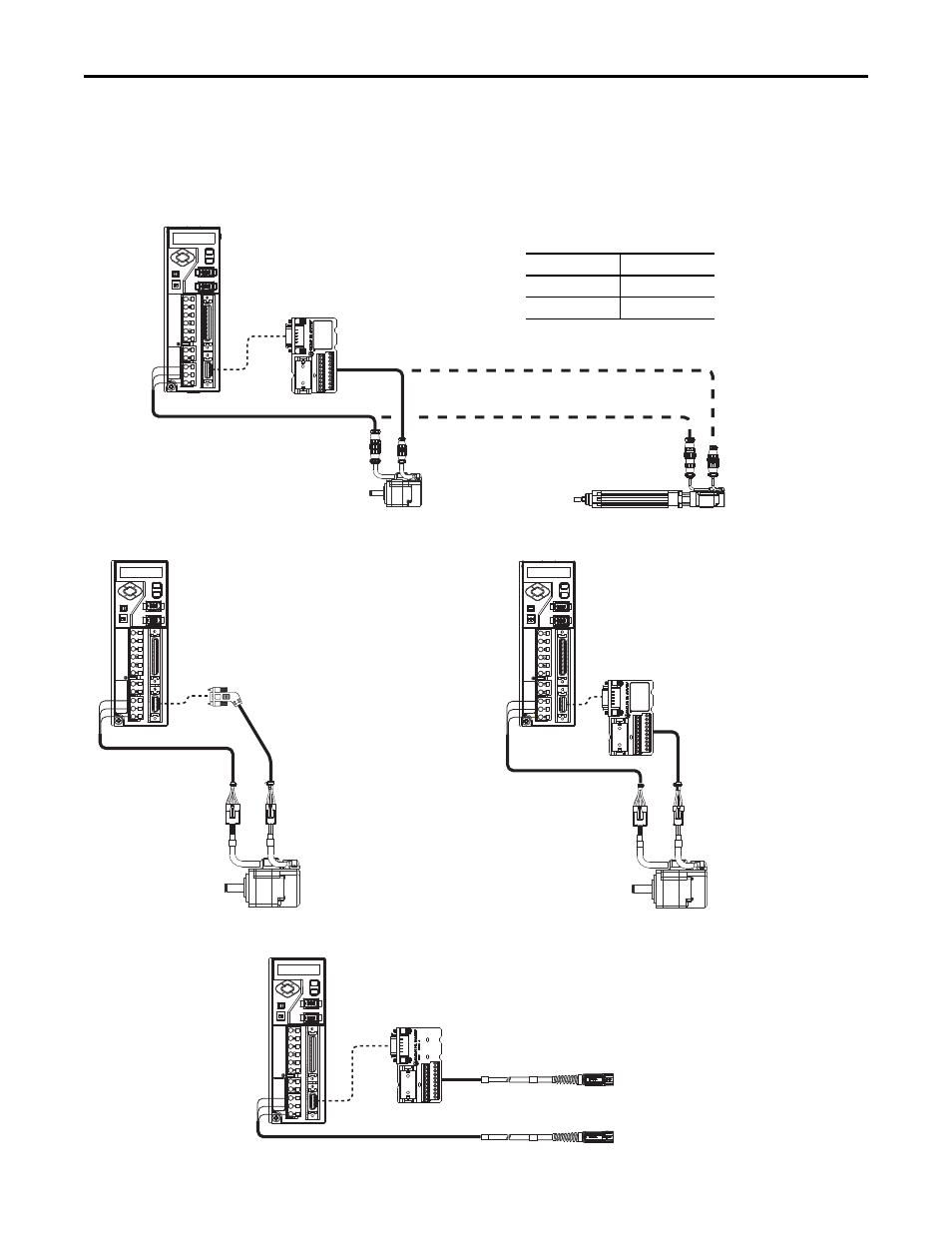

Kinetix 3 System Examples
These system examples illustrate how the drive modules and accessories are used in typical configurations.
Kinetix 3 Motor Feedback Example (Bulletin TLY rotary motors or TLAR electric cylinders)
Kinetix 3 Motor Feedback Example (Bulletin TL motors)
Kinetix 3 Motor Feedback Example (Bulletin MPAS, LDAT-Series, LDC-Series, and LDL-Series)
1/2AA 3.6V
2071-Axx
Kinetix 3 Drive
2071-TBMF Motor Feedback
Breakout Board
(shown with battery backup option)
2090-CFBM6DF-CBAAxx
Motor Feedback Cable
2090-CPxM6DF-16AAxx
Motor Power Cable
TL-Series (TLY-Axxxx-x)
Rotary Motors
TL-Series™ (TLAR-Axxxxx)
Electric Cylinders
Battery Backup Requirements
Motor/Actuator Battery Backup
Bulletin TLY Optional
Bulletin TLAR Required
1/2AA 3.6V
2071-Axx
Kinetix 3 Drive 2071-Axx
Kinetix 3 Drive
2071-TBMF Motor Feedback Breakout Board
(battery backup is optional)
2090-DANFCT-Sxx
Motor Feedback Cable
(no battery backup)
2090-DANFCT-Sxx
Motor Feedback Cable
(connector removed)
2090-DANPT-16Sxx
Motor Power Cable
2090-DANPT-16Sxx
Motor Power Cable
TL-Series (TL-Axxxx-B)
Rotary Motors
(high-resolution encoder) TL-Series (TL-Axxxx-B)
Rotary Motors
(high-resolution encoder)
2071-Axx
Kinetix 3 Drive
2071-TBMF Motor Feedback Breakout Board
(battery backup not required)
Bulletin 2090 Motor Feedback Cable
Bulletin 2090 Motor Power Cable
