Rockwell Automation Publication LIQFLO-UM011B-EN-P - November 2012 7
Using the 20-HIM-A6 HIM with the LiquiFlo 2.0 AC Drive
Powering Up and Adjusting
the HIM The first time the HIM is powered up, you are prompted to select a language for
display text.
Adjusting Display Contrast
The contrast of the HIM display can be adjusted for optimal viewing by
performing the following steps.
1. Access the Status screen, which is displayed on HIM power up.

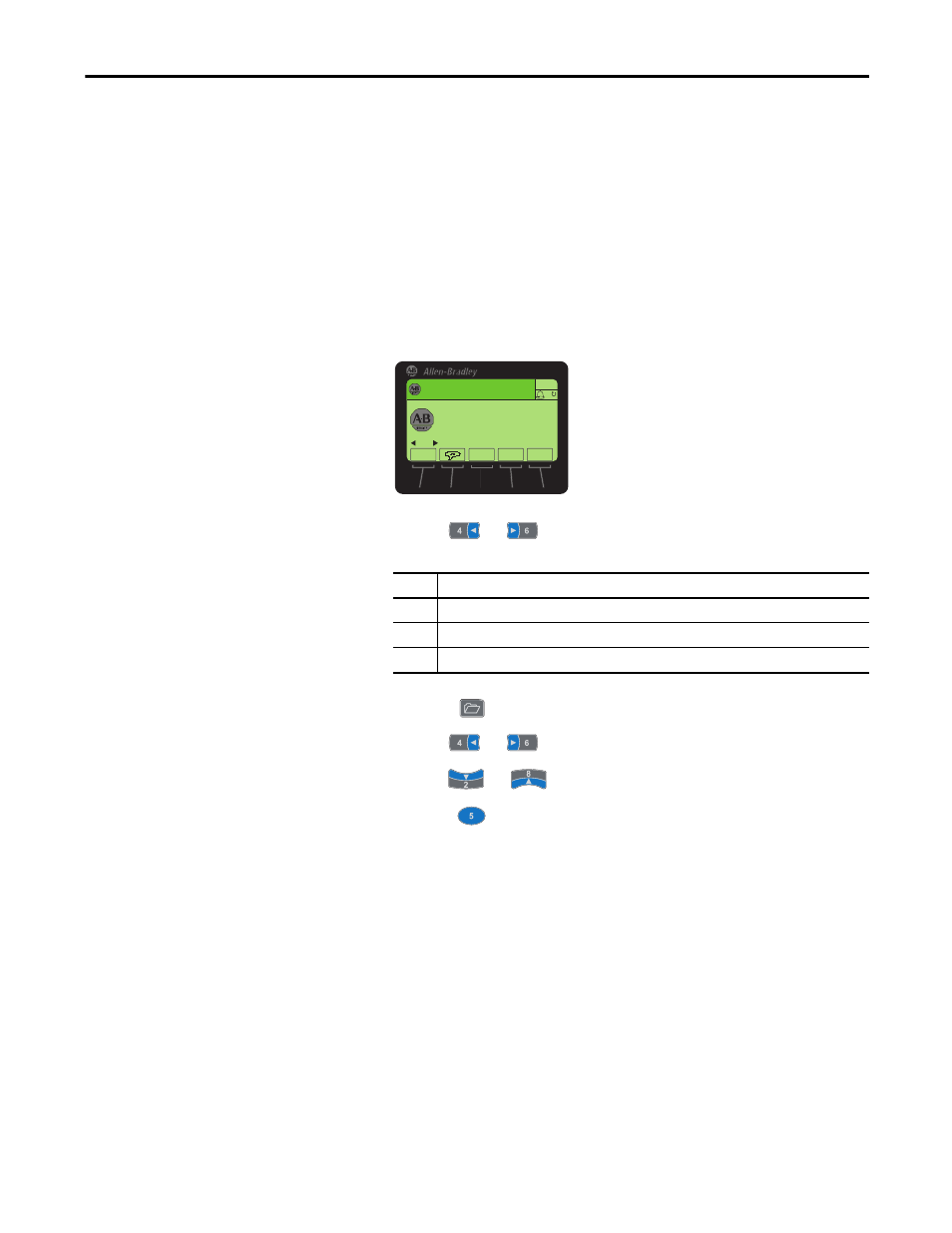

Figure 8 - Status Screen
2. Use the or key to scroll to the port to which the HIM is
connected.
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the PROPERTIES folder.
5. Use the or key to select Adjust Contrast.
6. Press the (Enter) key to display the Set LCD Contrast edit pop-up
box.
7. Use the or ‘soft key’ to adjust contrast to the desired setting.
8. Press the ESC ‘soft key’ to set the contrast and exit the screen.
Resetting the Display
To return all the options for the display to factory-default values, select ‘Set
Defaults’ under the MEMORY folder.
Port Location
01 HIM cradle on the front of the drive.
02 DPI port at the bottom of the drive.
03 Splitter cable port when the cable is plugged into the DPI port at the bottom of the drive.
00
Stopped
0.00 Hz
AUTO
LiquiFlo 2.0
480V 900A
2.012 Ser. B
ESC REF TEXT
F
PAR#
