4 Rockwell Automation Publication LIQFLO-UM011B-EN-P - November 2012
Using the 20-HIM-A6 HIM with the LiquiFlo 2.0 AC Drive

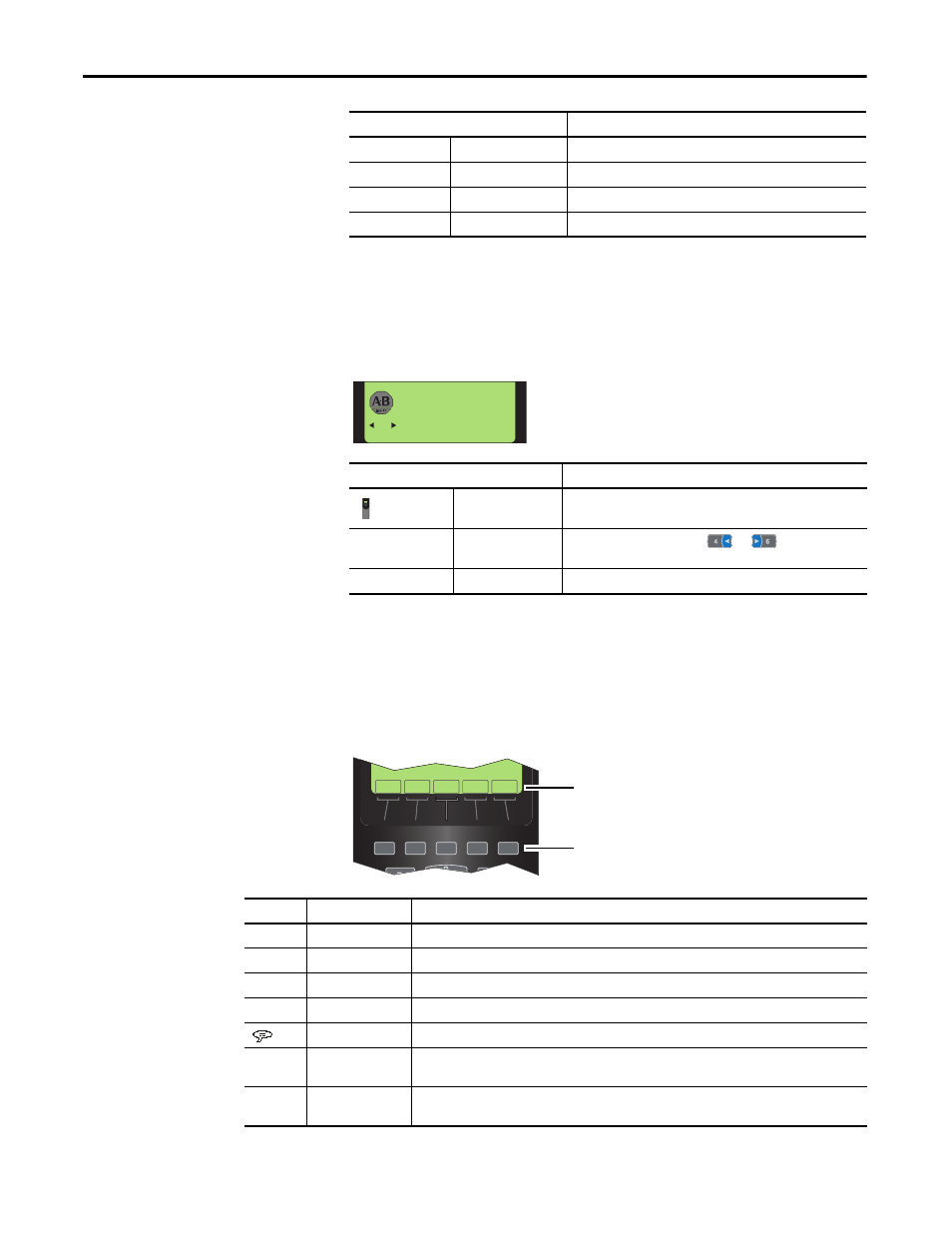

Data Area
The Data Area displays the data or function presently being acted upon.
Figure 5 - Data Area on the Display Screen
Soft Key Labels
The Soft Key Labels identify the present function of a corresponding Soft Key on
the Key Pad. Different screens may show different Soft Key Labels.
Figure 6 - Soft Key Labels Example on the Display Screen
AUTO/MAN
Mode Indication Indicates Auto or Manual HIM status.
Alarm Indication Bell icon indicates that an alarm is present.
F R
Rotation Indication Indicates Forward or Reverse direction of Host Drive operation.
DLX (not shown)
DeviceLogix Indication Indicates when the Host Drive DeviceLogix feature is enabled.
Element Meaning
Host or Device Icon Image of the Host Drive or image of the device connected to the port
selected.
00 Port Selection Indicates selected port. Use the or navigation keys to
select a port.
Host Drive
User-Definable Text Top line of text in the Data Area can be edited by the user.
Element Meaning
00
LiquiFlo 2.0
480V 900A
2.012 Ser. B
ESC VIEW REF TEXT PAR#
Soft Keys
Soft Key Labels
Label Name Function
.
Decimal Point Adds decimal point to the right-most position of a numeric value.
Backspace Deletes the character to the left of the cursor.
+ / - Sign Changes the sign of a parameter value.
# Number Selects the Direct Numeric Entry Method to change drive parameter associations.
Language Directly accesses the Select Language To Use screen.
Scroll Up • Scrolls up through display lines.
• Increases a value.
Scroll Down • Scrolls down through display lines.
• Decreases a value.
