Rockwell Automation 1768-L43 CompactLogix System Quick Start - Manual (Page 89)

Publication IASIMP-QS003B-EN-P - October 2009 89
Configure the EtherNet/IP Network Chapter 7
Assign IP Addresses
The BOOTP/DHCP Server utility is used to assign IP addresses to most devices in this quick
start, except the PanelView Plus terminal. The IP address for the PanelView Plus device was
assigned during installation in
Chapter 5 , Prepare the PanelView Plus terminal. The
BOOTP/DHCP utility is installed during the RSLogix 5000 programming software
installation.

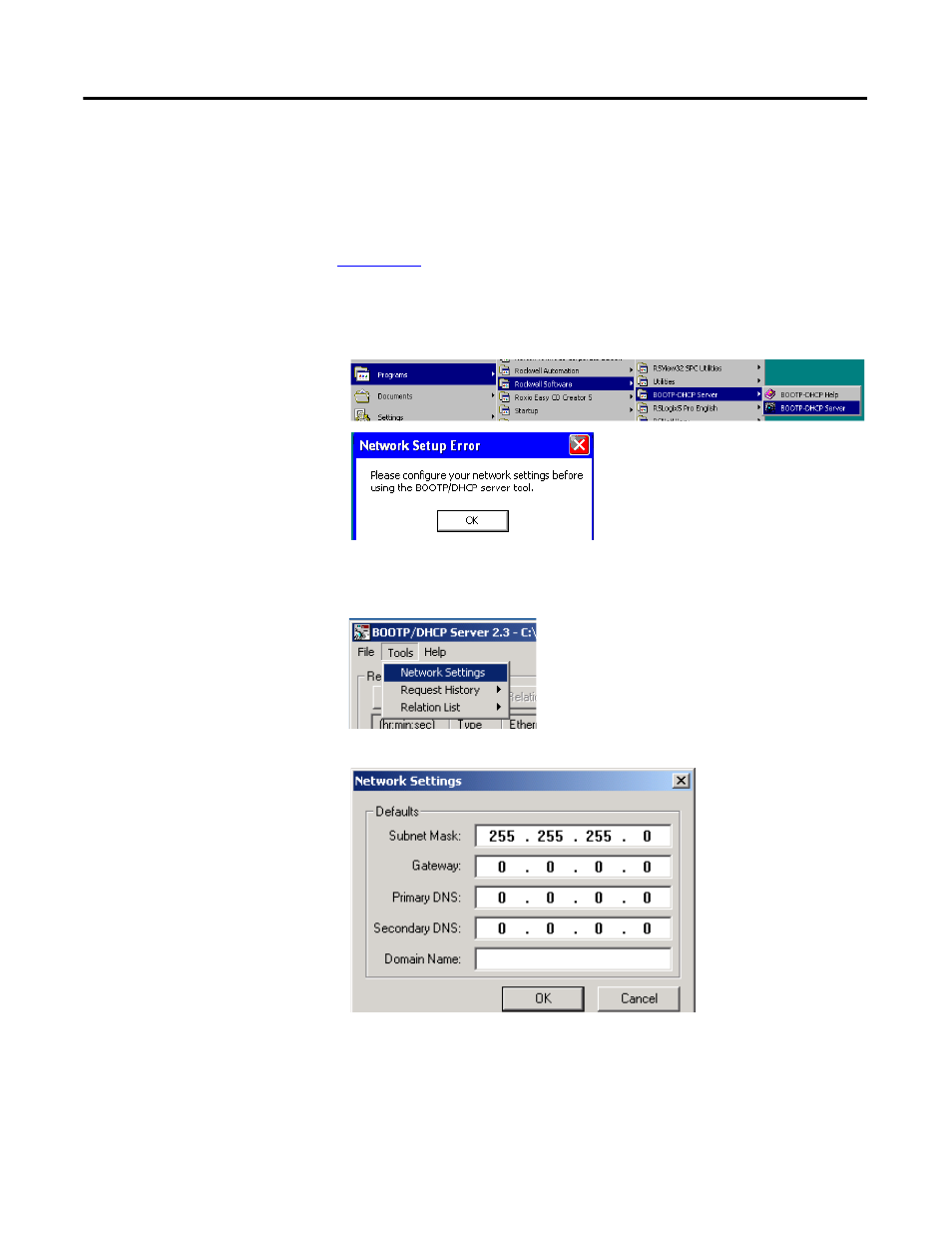

1. Launch BOOTP/DHCP
Server utility.
If running this utility for
the first time, you will get
a Network Setup Error
message. Click OK. You
are then asked to enter
the subnet mask in step 3.
2. Otherwise, select
Tools>Network Settings.
3. Enter the Subnet Mask
recorded in Appendix A
for your computer.
4. Click OK.
