38
Publication IASIMP-QS003B-EN-P - October 2009
Chapter 2 Prepare the Computer and Load Controller Firmware
Make Network Connections for Personal Computer

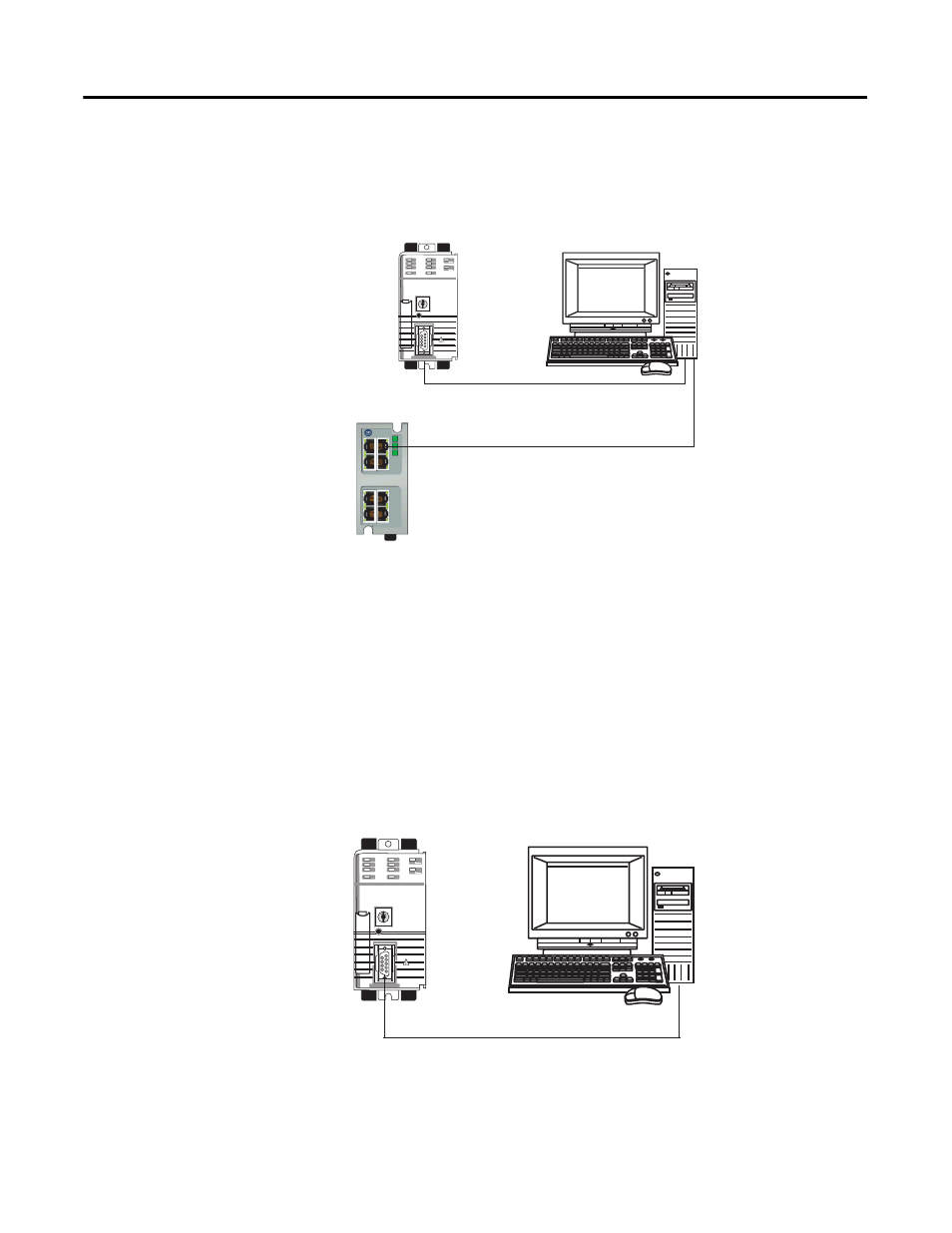

Network Connections Required for EtherNet/IP System
1. Connect a CAT5
Ethernet cable between
the Ethernet port on the
computer and the
Ethernet switch.
This connection is used
to configure the
EtherNet/IP driver in
RSLinx software.
2. Connect the 1756-CP3
cable between the CH0
serial port on the
controller and a computer
COM port.
This connection is used
to configure the serial
driver and load controller
firmware.
Network Connections Required for DeviceNet System
Connect the 1756-CP3 cable
between the CH0 serial port
on the controller and the
COM port on the computer.
This connection is used to
configure the serial driver and
load controller firmware.
1756-CP3
EtherNet/IP
Serial
Ethernet CAT 5
Serial
1756-CP3
