Rockwell Automation 1768-L43 CompactLogix System Quick Start - Manual (Page 133)

Publication IASIMP-QS003B-EN-P - October 2009 133
Add Distributed Point I/O Modules to the Project Chapter 10

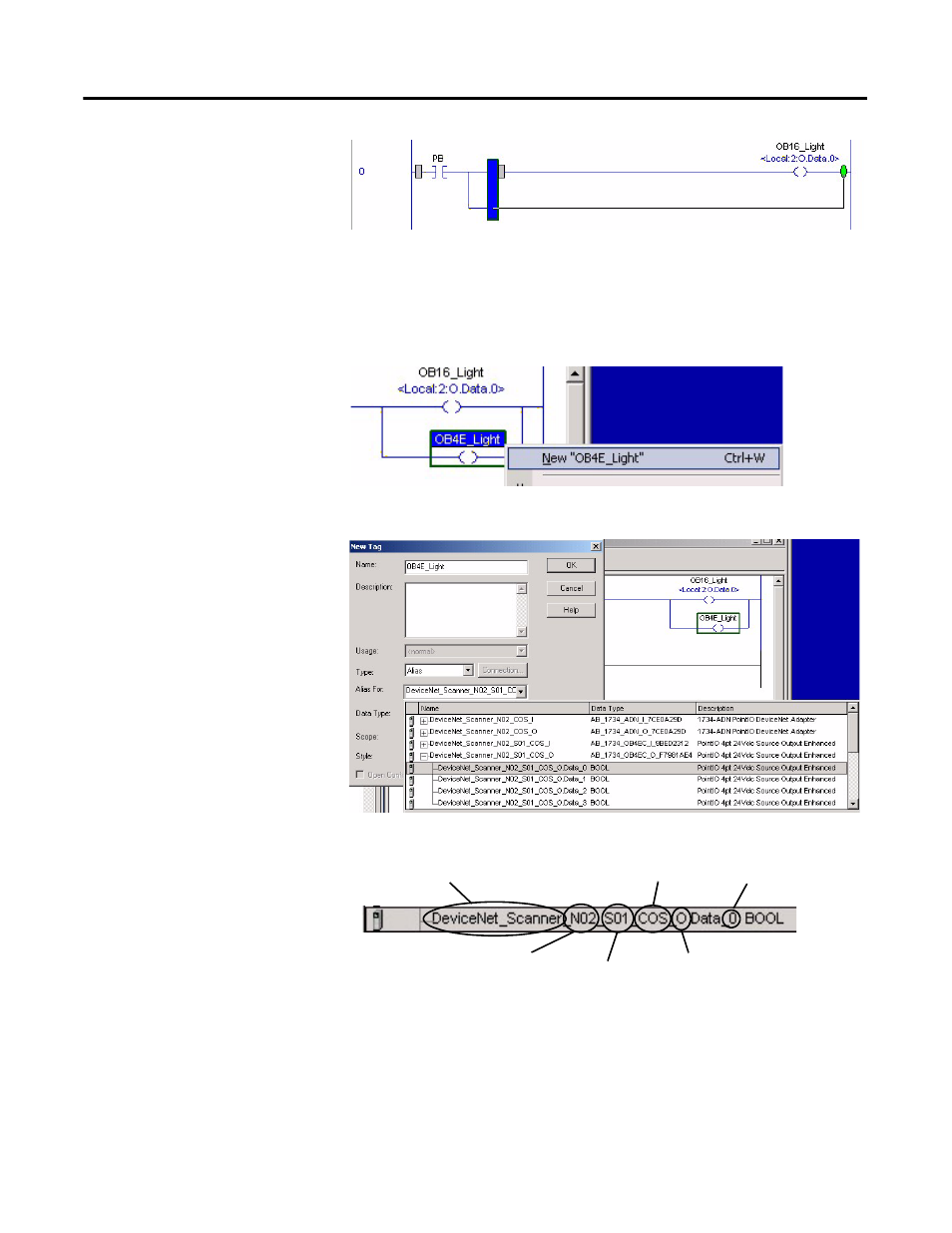

13. Expand the branch to the
right side of the
xxxx_Light.
14. Drag and drop another
Output Energize element
onto the branch and
name it xxxx_Light,
where xxxx is the suffix
of the catalog number of
the digital 1734 POINT
output module.
15. Right-click the Light and
select New ‘xxxx-Light’.
16. From the Type pull-down
menu, choose Alias.
17. From the Alias For
pull-down menu, browse
for SDN output data tags.
18. Select the output data tag
that corresponds to the
status indicator you want
to turn on.
Use this diagram to select
your output tag.
Selecting the tag that ends
with O.Data.0 will turn
on light 0 of the output
module.
SDN Module Name
Node Number
Slot Number
Connection Type Channel
Tag Type
