8

Publication PMC-QS002B-EN-P - October 2008

Chapter 1 Install the Direct Drive Technology Demonstration Machine

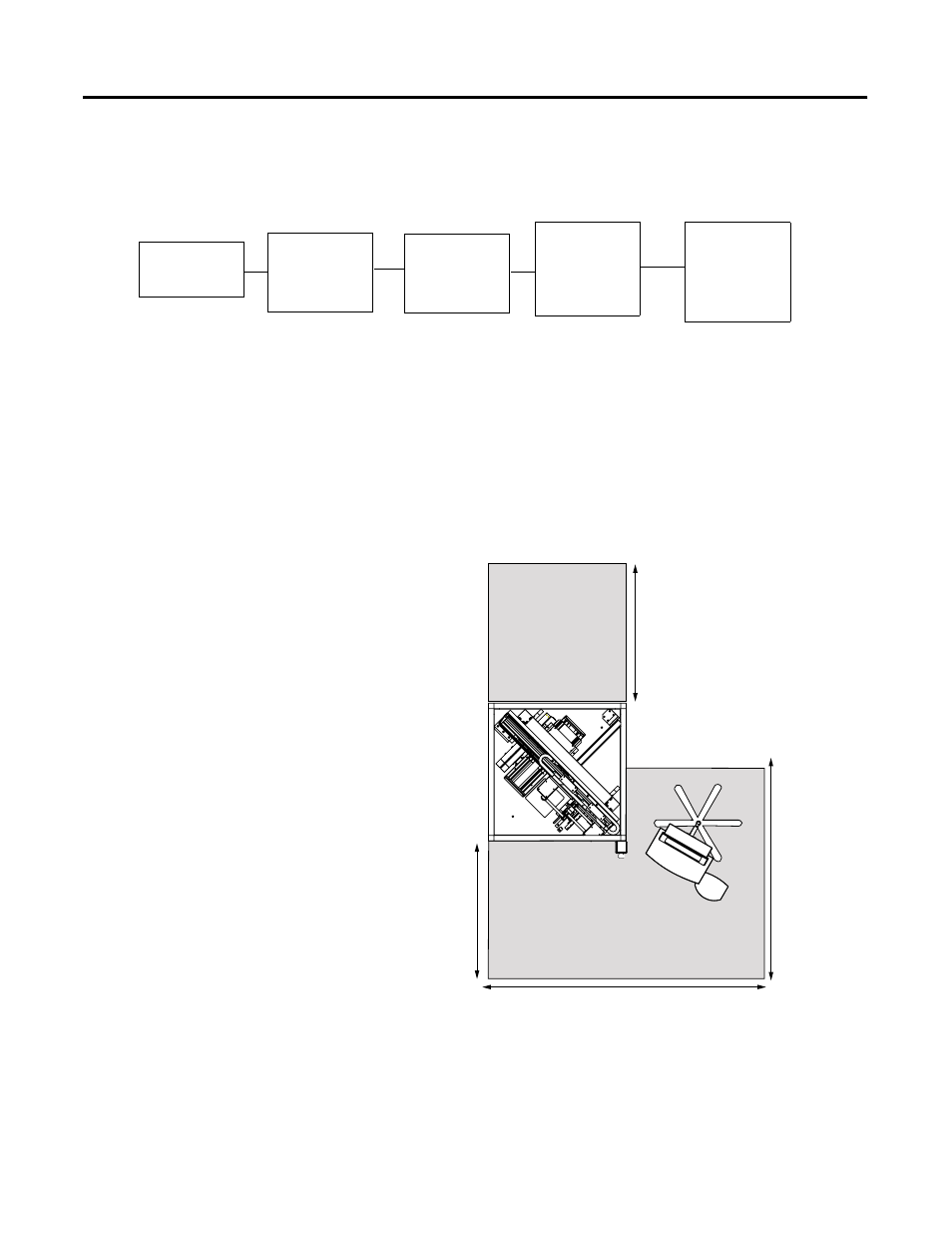

Follow These Steps

Complete the following steps to install the Direct Drive Technology
Demonstration Machine.

Position and Level
Machine

1. Position machine within 2 m (6.6 ft) of power source and with

1 m (3.3 ft) clearance in the front, back and right side of the
machine.


The position can be adjusted while the casters are supporting the
machine.

2. Extend the four leveling feet so the full weight of the machine is

off the caster and on the leveling feet.

Position and

Level Machine

Remove

Shipping

Clamps

Make

Connections

Assemble

Computer and

Computer

Stand

Install Signs

1 (3.3)

1 (3.3)

1.5 (5)

2 (6.6)

Dimensions m (ft)
