Publication PMC-QS002B-EN-P - October 2008

11

Install the Direct Drive Technology Demonstration Machine Chapter 1

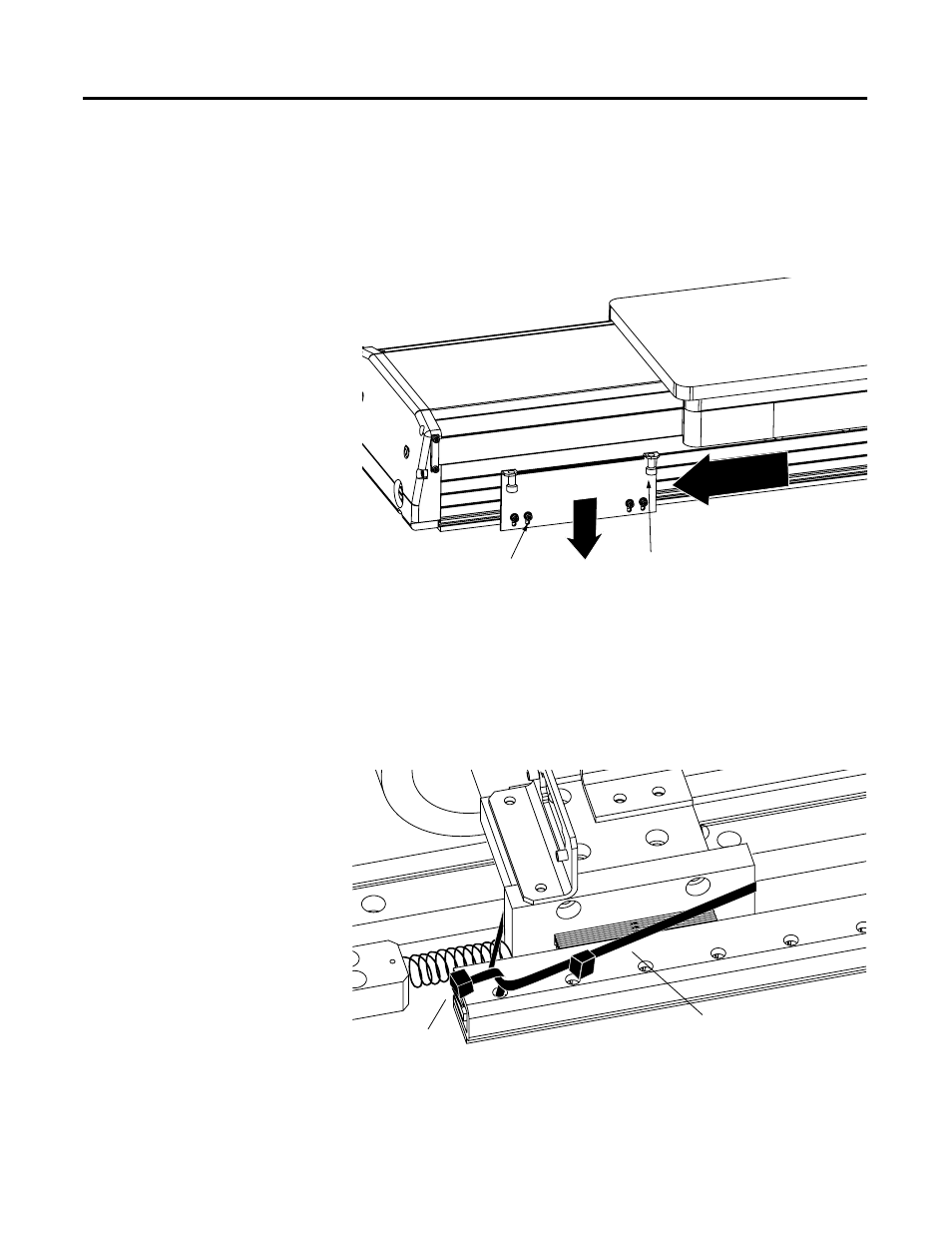

4. Remove the shipping bracket from each carriage on the dual stage

and from the cantilevered axis carriage.

a. Loosen but don’t remove the 3M SHCS.
b. Back off the 6M SHCS until they clear the carriage.
c. Slide the shipping bracket off the end of the stage.

There are two tie wraps that secure the LEU stage. One through the last
hole in the magnet channel and one through the loop created by the tie
wrap and around the motor assembly.

5. Carefully cut and remove the tie wraps.

3M SHCS

6M SHCS

A

B
