Rockwell Automation Direct Drive Technology Demonstration Machine User Manual
Page 10
10
Publication PMC-QS002B-EN-P - October 2008
Chapter 1 Install the Direct Drive Technology Demonstration Machine

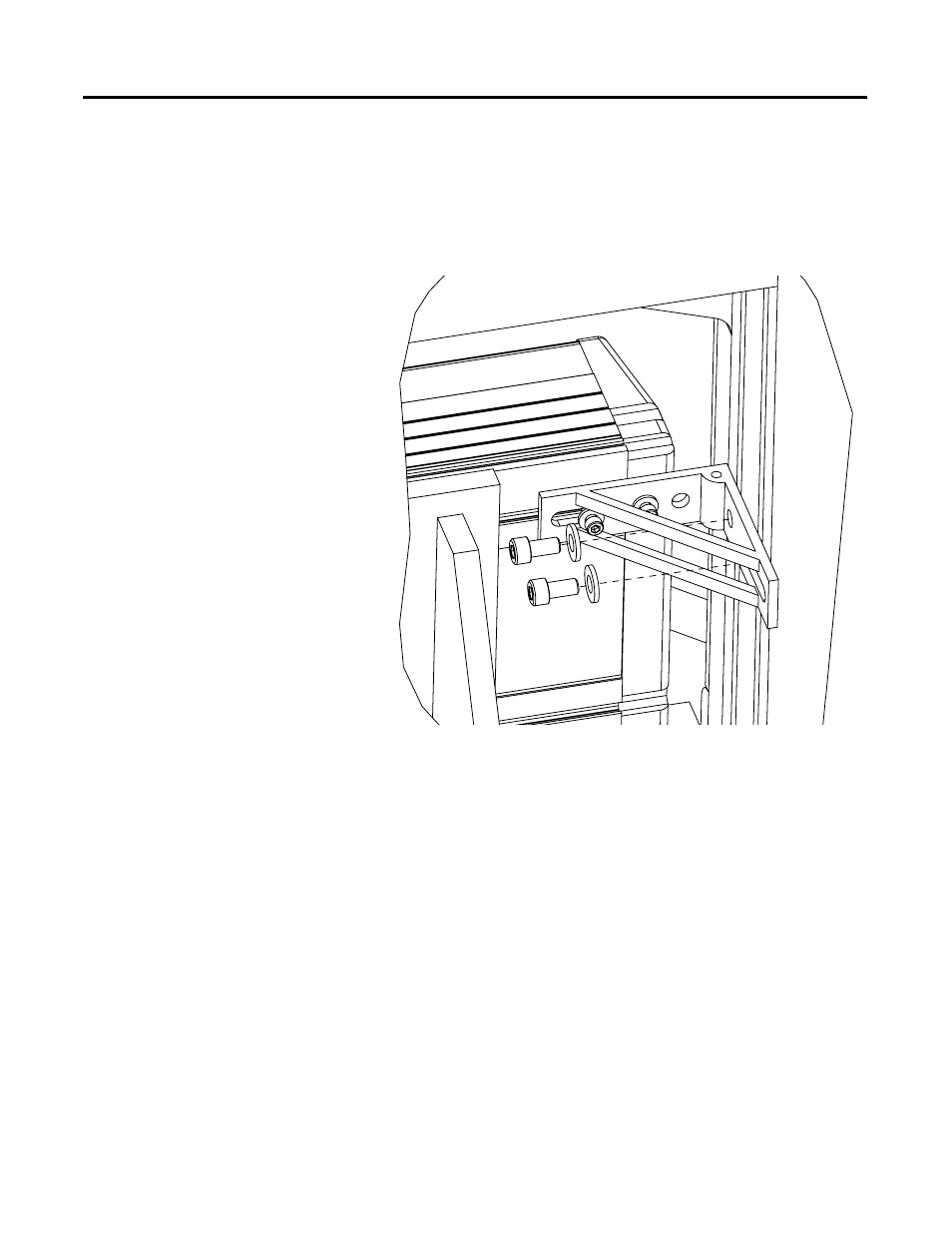

3. Remove the cantilever axis shipping brackets at each end of the
stage.
a. Remove the 8M SHCS and washers from the bridge riser.
b. Loosen but don’t remove the 6M SHCS from the stage.
c. Push the stage forward and slide the bracket off the stage.
