3-17

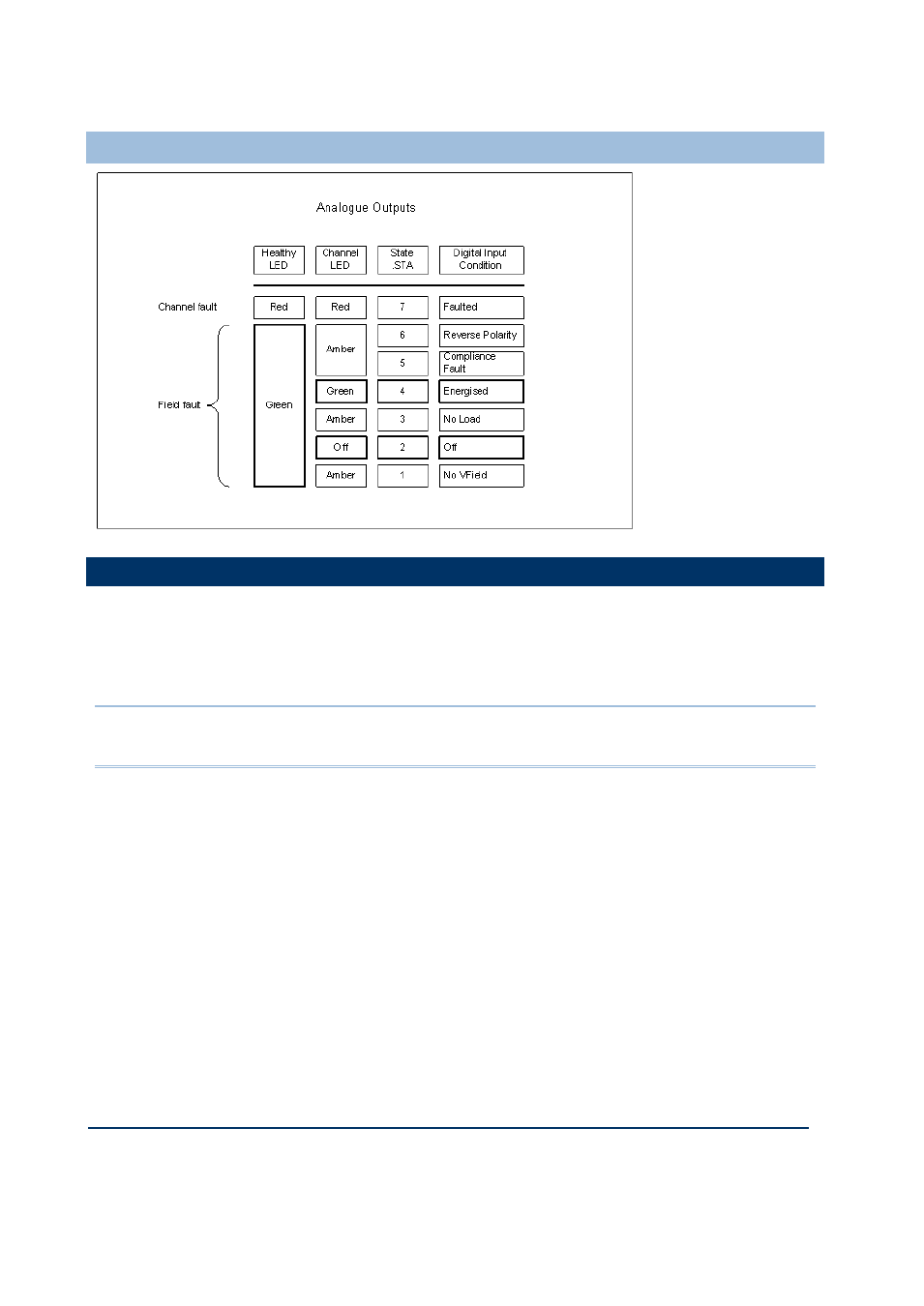

Correlation of LEDs with State Variable for an Analogue Output
View Module Firmware Versions
Using the AADvance Workbench you can view the module firmware information on screen and save
this information with your project. Using an update function view the latest information and save it as
an external text file.
To do this proceed as follows:
Note: To view the firmware version numbers of the modules you must be connected using Debug to
a running controller.
1) Select the Equipment View tab.
2) Select the desired configuration node Config4(9000 Series Controller) in
example shown below.
3) Select the Version Information tab.

The version information window appears. If the version information has
previously been requested and saved (applied) then it will be visible in this
window.
