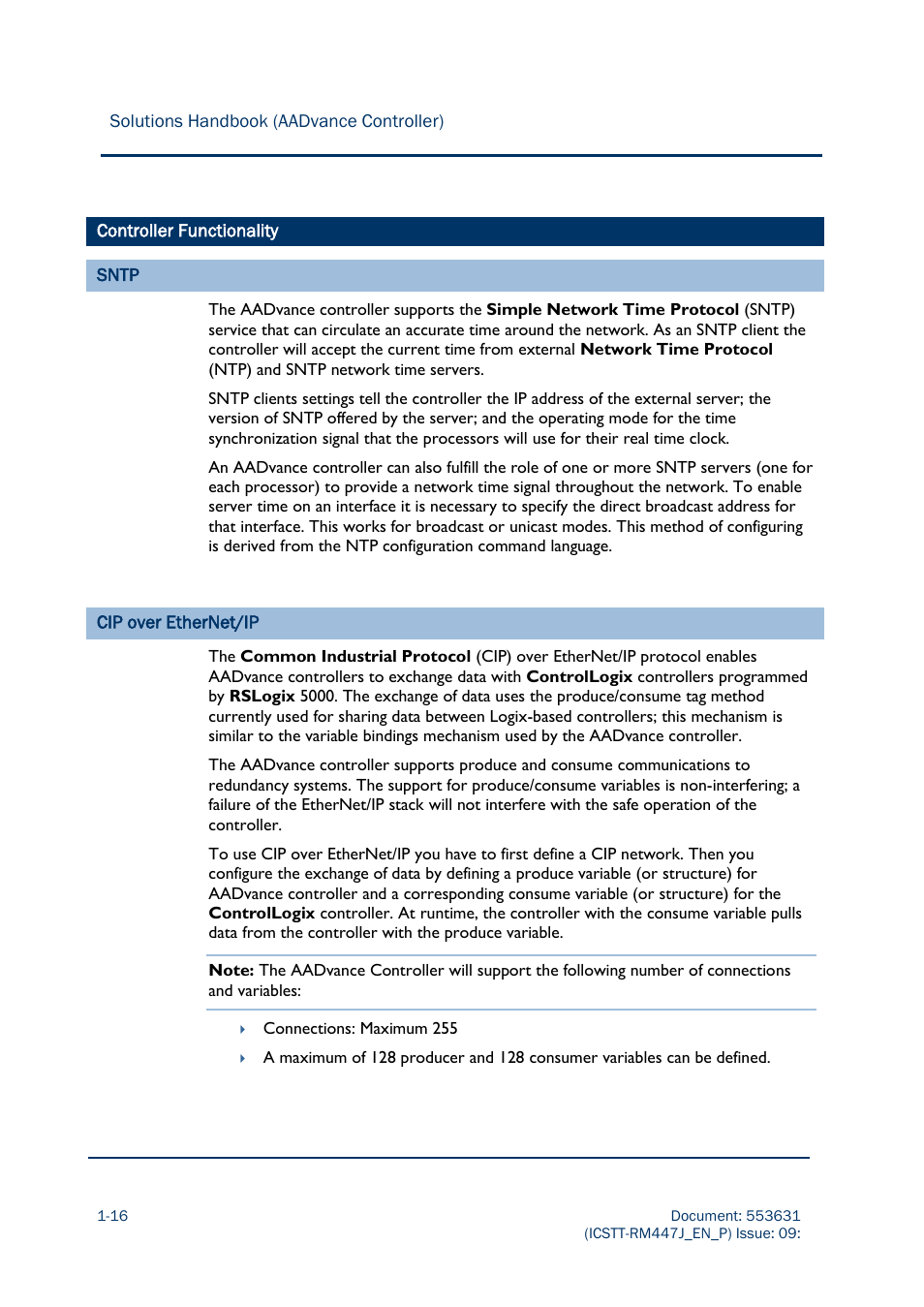

Controller functionality – Rockwell Automation AADvance Controller Solutions Handbook User Manual
Page 28
