7-2 Control and Configuration Software V6.1
To switch between the fault and alarm list boxes, select the appropriate option for Log
Select. If the drive does not support an alarm log, the alarm log option is grayed and is
not selectable.
The time stamp displays the time when the fault or alarm occurred. This time is from
the drive memory. See the drive instruction manual for information about the time
stamp.
To change the time from a time stamp to a calculated time and date, select the
Calculated time option. The software uses the drive’s elapsed timer and the PC’s clock
to calculate the time that the fault occurred.
Important: The calculated time will be incorrect if the drive was powered down or if
the elapsed timer was reset since the fault occurred. This is because the
fault log information is saved if the drive’s power has been turned off.

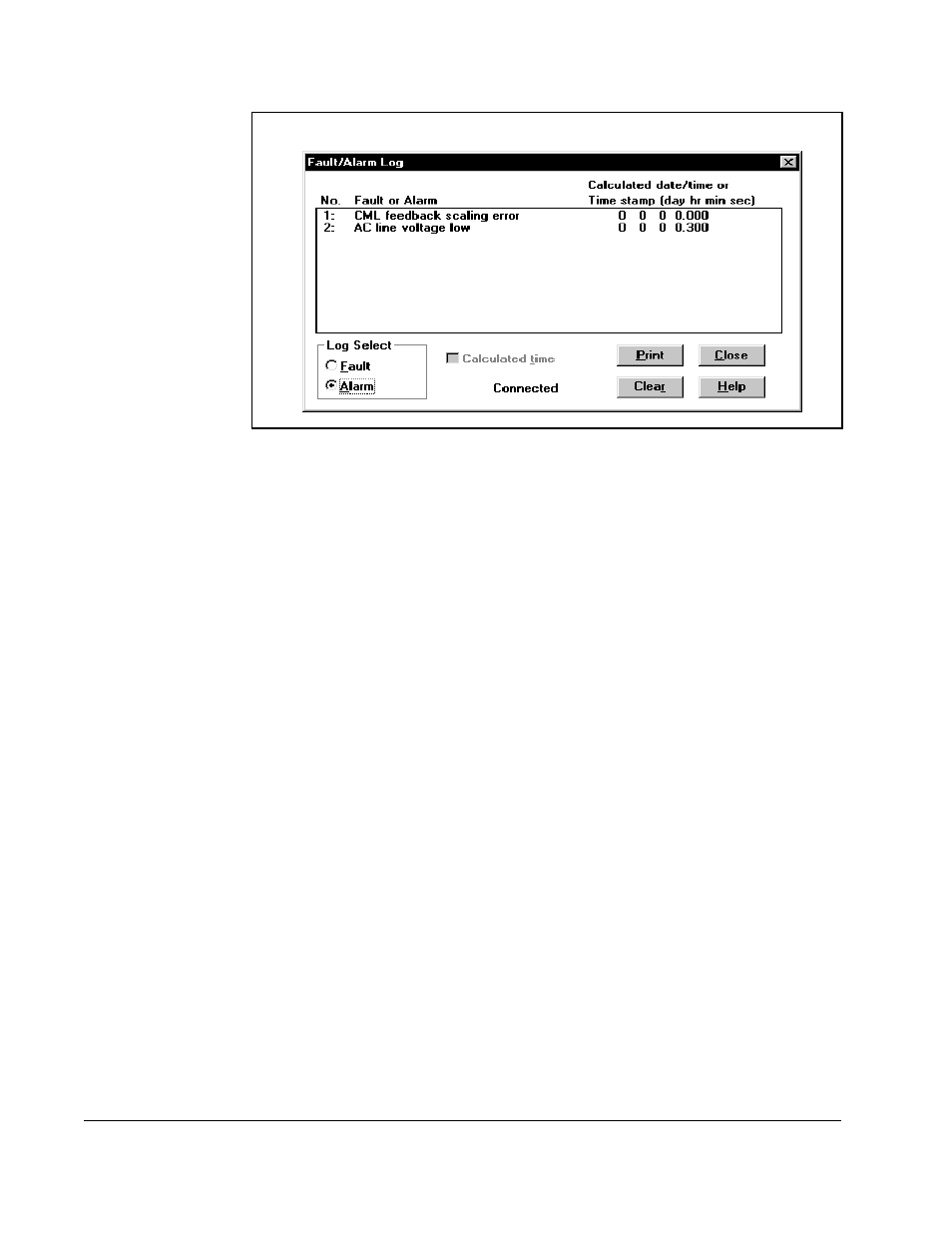

Figure 7.2 – Sample Alarm Log List Box
