Publication CNET-IN003A-EN-P - January 2006
Install a ControlNet Ex Media System 3-13
Install Cable Connectors
After you have mounted the taps, you need to attach cable connectors
to the ends of your trunk cable sections.
Collect Your Tools

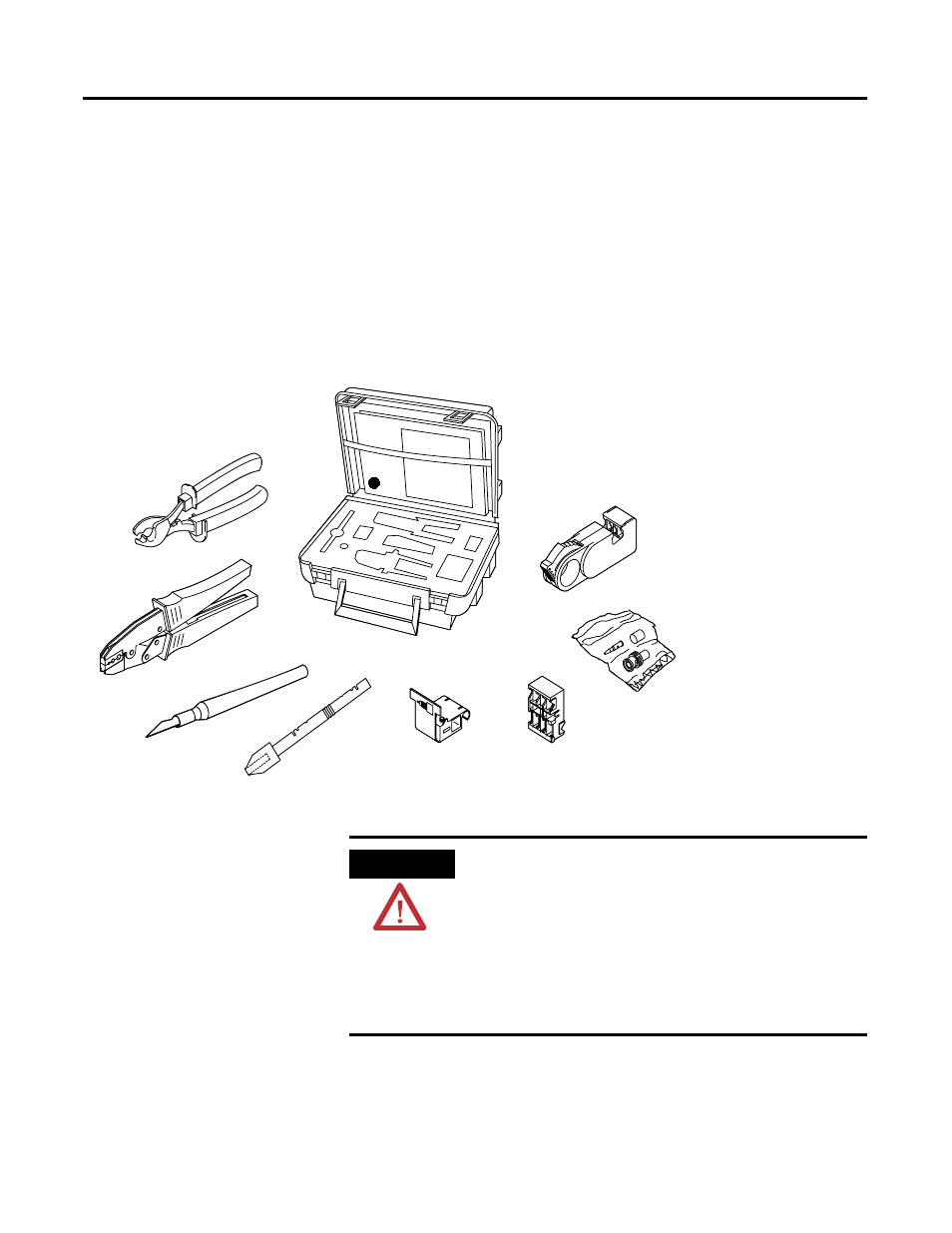

To install the cable connectors, we recommend that you use the tools
in the ControlNet Coax Toolkit, catalog number 1786-CTK.
41902
ControlNet Media Component List,
Publication AG-PA002
ControlNet Coax Media Planning and Installation
Guide, Publication CNET-IN002
Calibration/Flare Tool
Cable Strip Tool With Two Blade Cassettes
(One for PVC and One For FEP)
Terminators and Extra Connectors
Memory Blade Cartridges (Contains Two Sets of
Memory Blades)
Memory Blade Holder
Knife
Crimp Tool
Wire Cutters
ATTENTION
Be certain that you calibrate the cable strip tool the
first time you use the tool and every time you change
the blade for both memory cartridges. Refer to
Appendix B for the proper calibration procedure.
Due to slight differences between coax cables, you
should calibrate the tool when changing:
•
part numbers
•
from one cable manufacturer to another
