Rockwell Automation 1797-Series ControlNet Ex Media Plannng Installation Manual User Manual
Page 47

Publication CNET-IN003A-EN-P - January 2006
Install a ControlNet Ex Media System 3-5

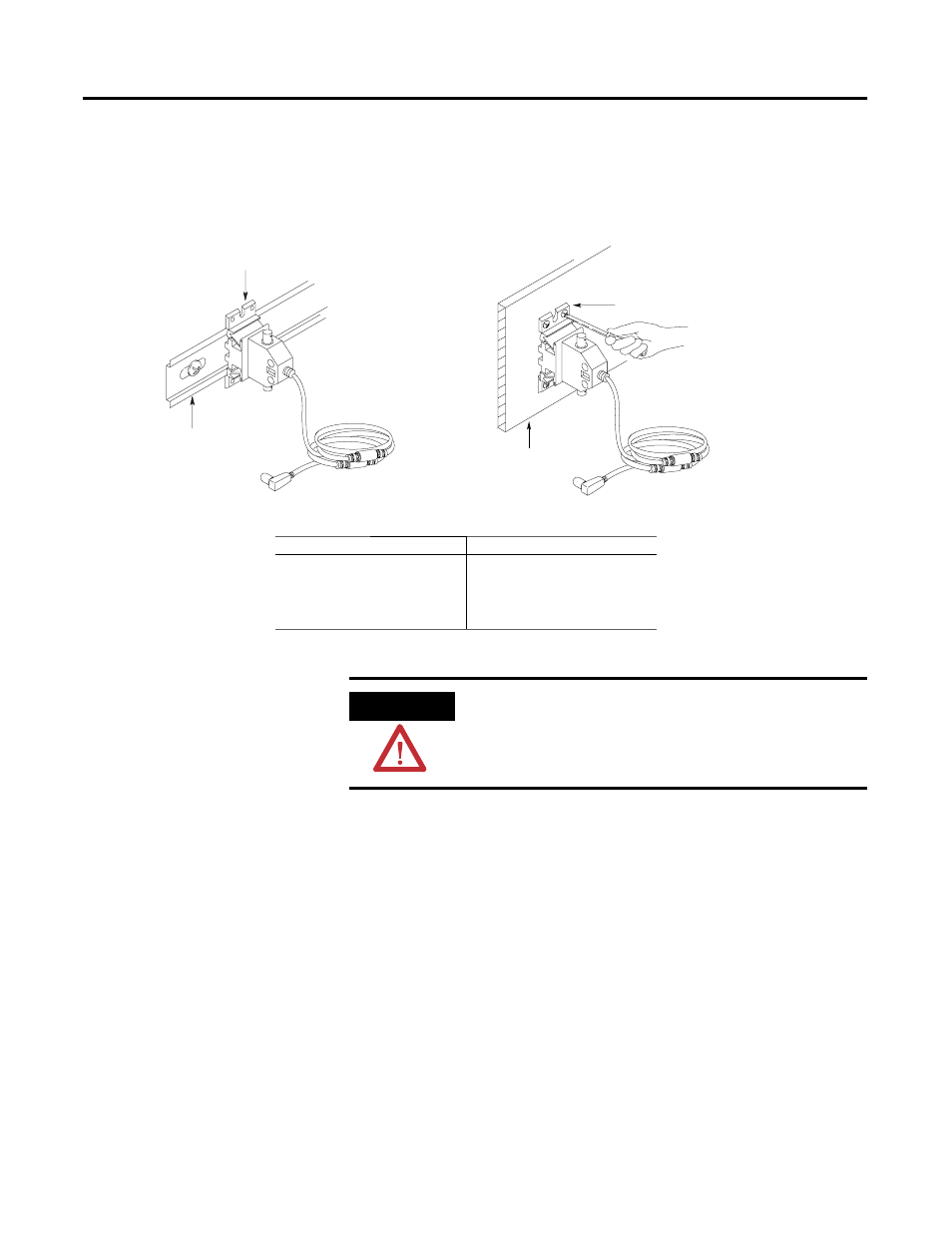

3. Mount the tap and bracket assembly to a DIN rail or another
mounting surface.
Mount the universal mounting bracket on specified Allen-Bradley mounting rails or #3 style symmetrical DIN rails (35 mm X 7.5 mm [1.38 in. x 0.30 in.])
Use four screws to attach the universal
mounting bracket to another mounting
surface.
Type of Rail
Cat. No.
Type of Rail
Cat. No.
A-B rail
1492-N1
DIN rail #3
199-DR1
1492-N22
1492-DR5
1492-N44
1492-DR6
1492-DR7
DIN Rail
Suitable Fixture
Universal Mounting Bracket
Universal Mounting Bracket
20081-M
20082-M
DIN Mounting Rail
Another Mounting Surface
ATTENTION
Use an intrinsically-safe insulator, the light-blue dust
caps we provide, or tape having a 500V insulation
rating to cover exposed metal parts. Local agencies
require their use for intrinsically-safe certification.
