Page 51: 1768 controlnet module status indicators, Appendix

Rockwell Automation Publication CNET-IN005C-EN-P - July 2014
51
Appendix
C
1768 ControlNet Module Status Indicators
The 1768 ControlNet communication modules support these status indicators.
1768-CNB and 1768-CNBR
ControlNet Modules
This section provides the following information about status indicators:
• To understand the OK status indicator and display messages,
see
Table 7 on page 52
.
• For information about viewing the network channel status indicators
individually, see
Table 8 on page 53
.
Topic
Page
1768-CNB and 1768-CNBR ControlNet Modules
Status Indicator
Description
OK status indicator
Indicates the module’s current state.
Network channel status indicators
Indicates the status of network channels A and B.

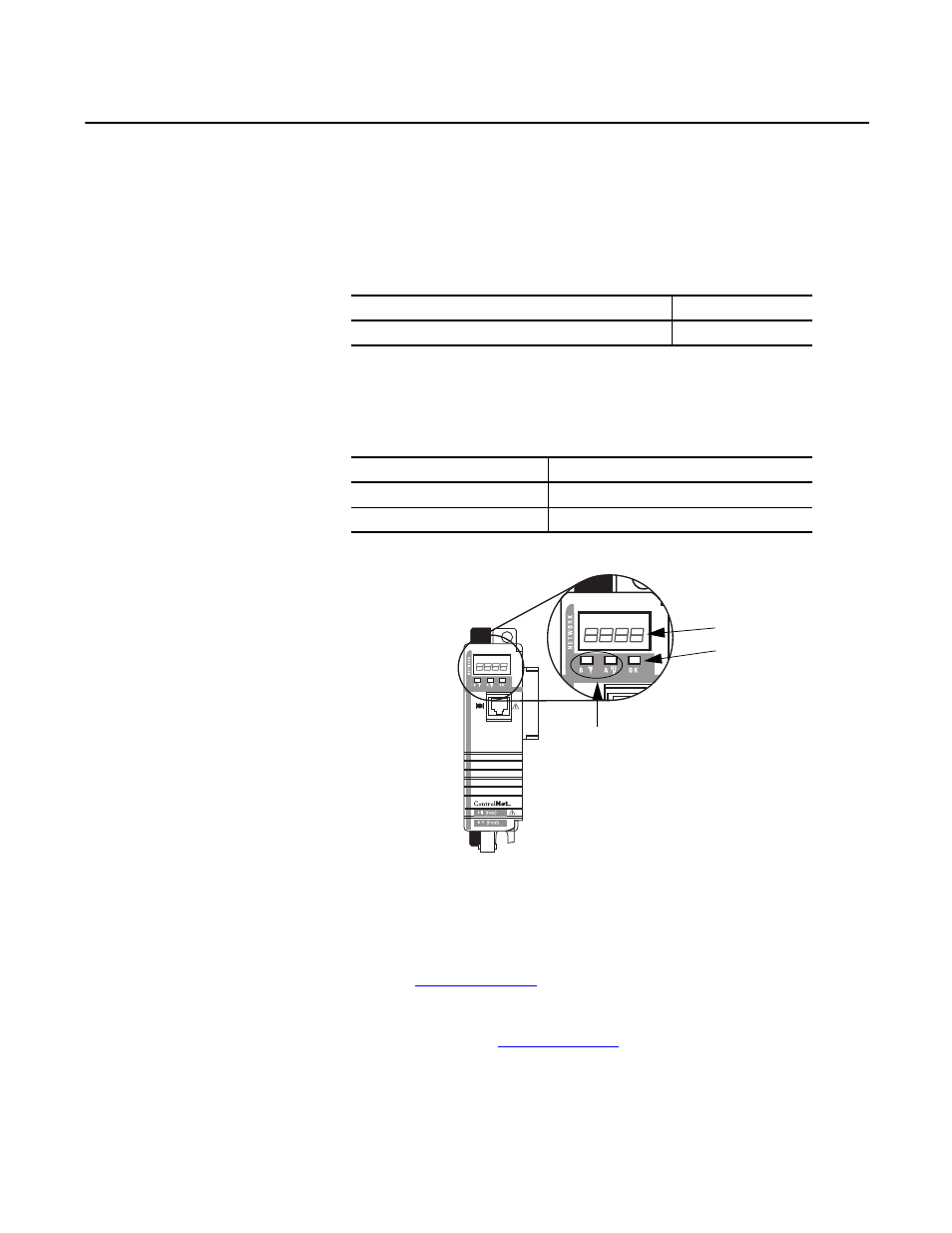

31657-M
Status Display
OK Status Indicator
Network Channel
Status Indicators
