Chapter 1
Install a 1756 ControlNet Communication Module
The Available Downloads window opens.
7. From the bulleted list, choose the firmware name.
The End User License Agreement opens.
8. Review the agreement and click I Agree.
The Rockwell Automation Download Manager opens and the download
begins. The location of the downloaded file is shown under the progress
bar.
9. When the downloaded is complete, click Close.
10. Locate the downloaded .zip file and extract it to a temporary directory.
11. Use the ControlFlash utility to install the firmware.

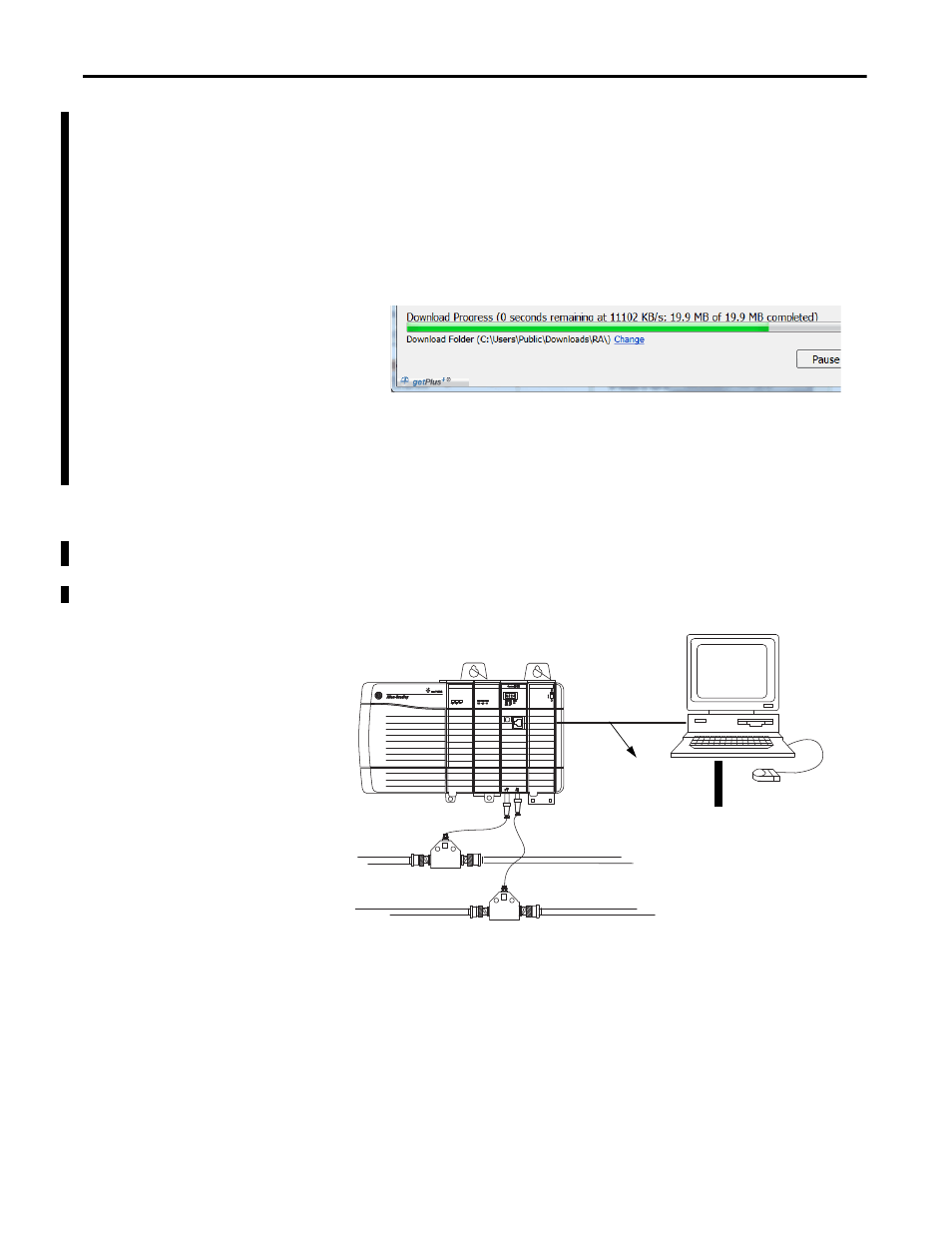

Connect a Programming
Terminal to the Network
with a 1786-CP Cable
To connect a programming terminal to the network using a 1786-CP cable, you
have the following options:
• Use a 1784-KTC, 1784-KTCx, 1784-PCC, 1784-PCIC, 1784-PKTCS,
or 1784-PCICS communication card and a 1786-CP cable.
• Use a 1770-KFC communication interface, a serial or parallel connection,
and a 1786-CP cable.
ControlNet Link
1756-CNBR/E
1784-KTC, 1784-KTC
x,
1784-PCC, 1784-PCIC,
1784-PKTCS or 1784-PCICS
Card
1786-CP Cable
