Rockwell Automation Publication 6181P-UM003A-EN-P - May 2014
Chapter 5
UEFI Set-up Utility
Access the Set-up Utility
Follow these steps to access the set-up utility in your computer.
1. Start your computer.
2. During POST, you have two selections to access the set-up utility.
Set-up Screen Overview

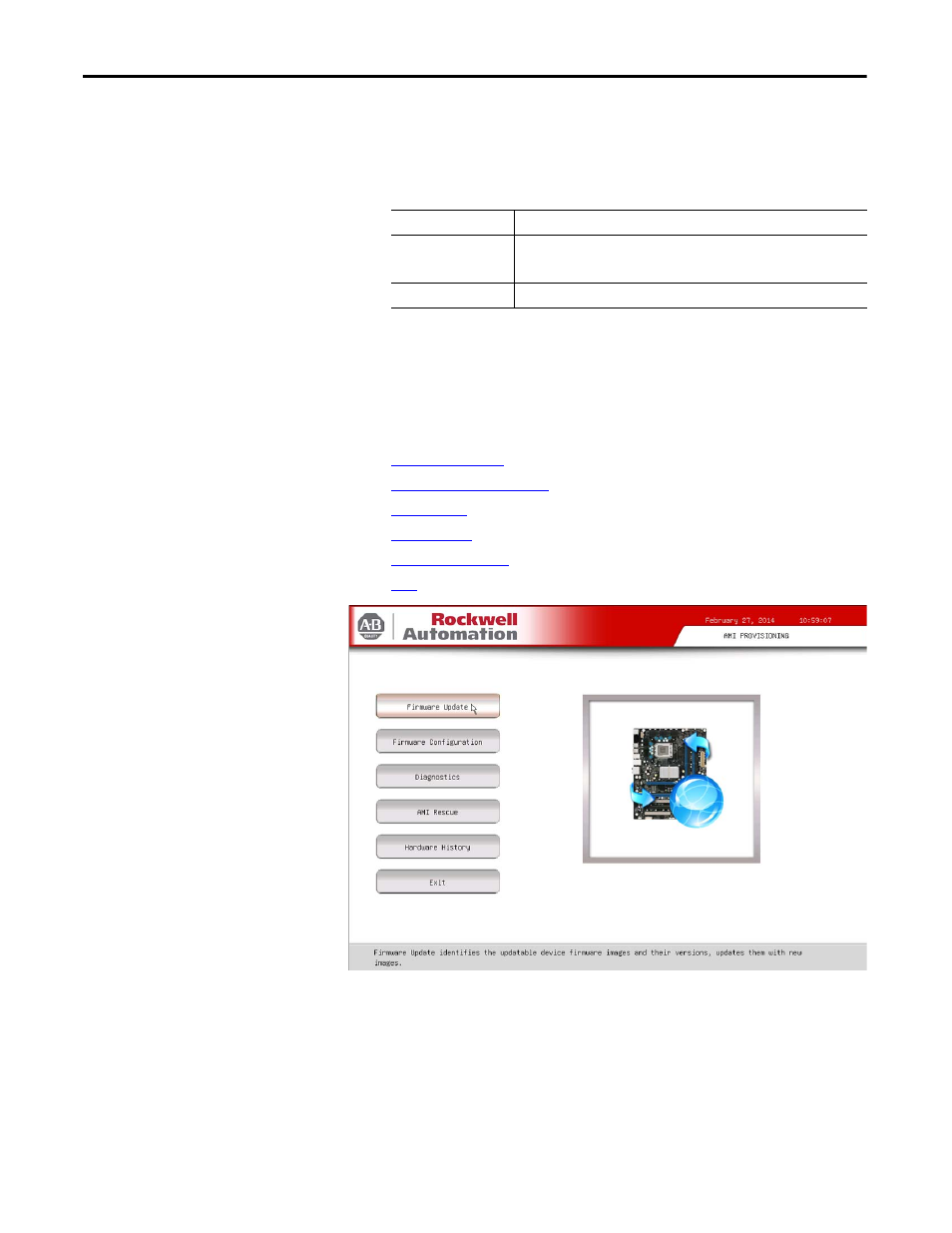

The set-up screen is the main screen for the UEFI graphical interface. On the left
are six menu buttons stacked vertically. Each menu button provides access to
information, commands, or configurable options for the following topics:
•
•
•
•
•
•
Press
Result
F2 or
UIB on front of display
(1)
(1) UIB is only available on display computers with aluminum bezels.
Accesses a graphical interface of set-up environment.
IMPORTANT: Screen shots in this chapter are from the UEFI graphical interface.
DEL (delete)
Accesses a text mode set-up environment.
TIP
The UEFI graphical interface can be driven with either the integrated
touchscreen or a keyboard and mouse. An On Screen Keyboard (OSK) pops up
automatically when a user enters an entry field.
