Page 47

Rockwell Automation Publication 6181P-UM003A-EN-P - May 2014
47
Component Replacement
Chapter 4
Drive Precautions
Follow these precautions when working with a drive.
• Do not touch internal components.
• Always handle the drive by its frame.
• Do not remove or install a drive with the power on except in circumstances
allowed by the operating system.
• Store the drive in an antistatic bag when it is not installed.

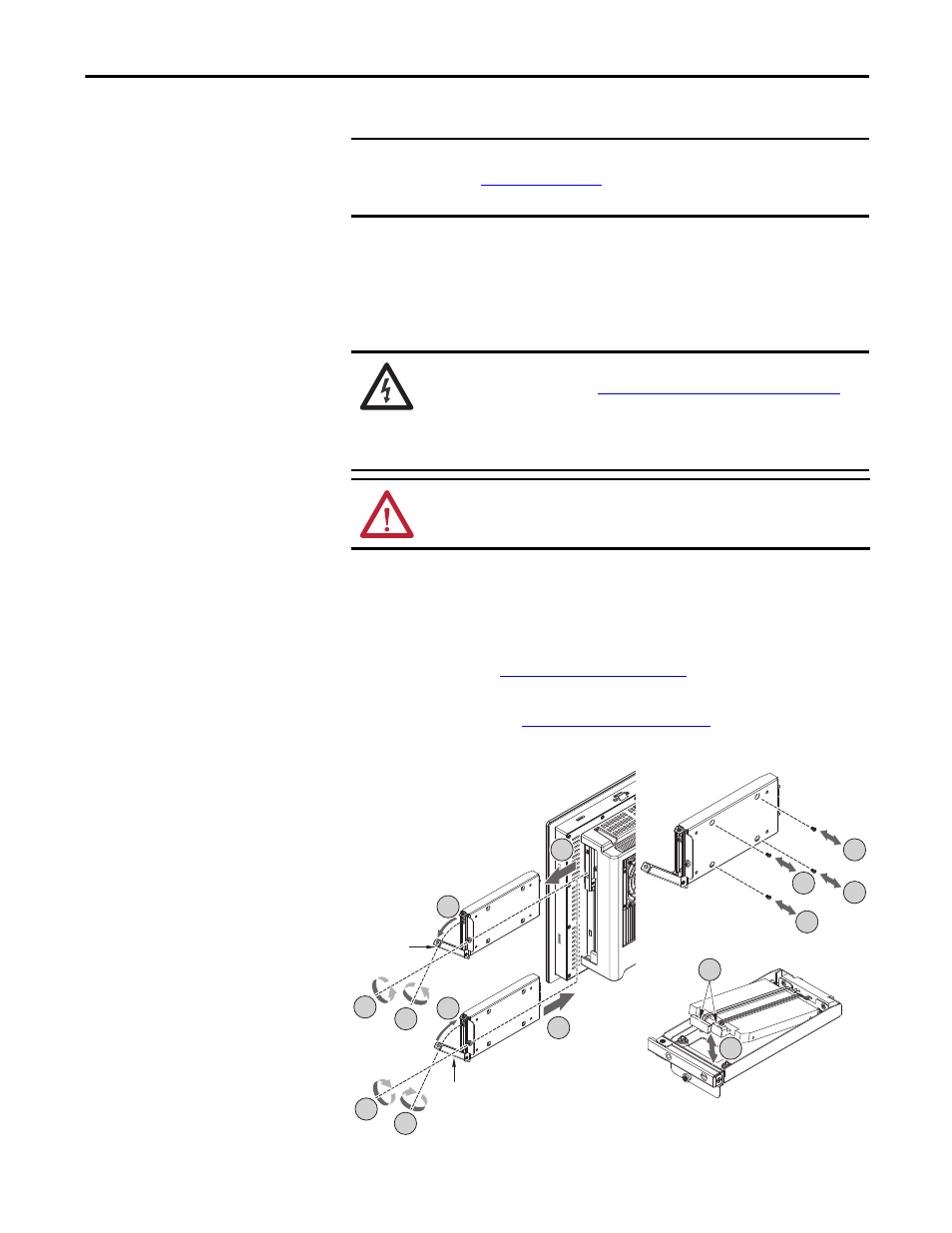

Replace a Drive
Follow these steps to replace a drive (HDD or SSD), which is on the side of the
computer.
1. Read and follow
before performing any drive
removal.
2. Follow the steps for
3. Remove the one screw that secures the drive assembly (A).
IMPORTANT
Back up or clone your computer before replacing a drive.
for more information on backing up your system
image.
SHOCK HAZARD: Electrostatic discharge (ESD) can damage the computer and
components. Read and follow
Electrostatic Discharge Precautions on page 44
before removing a drive.
Failure to follow proper safety precautions can result in severe electrical shock to
an individual or ESD damage to the computer and its components.
ATTENTION: Mechanical shock can damage a drive. Do not drop or bump the
drive.
Extended
Carrier Lever
Extended
Carrier Lever
C
D
B
A
K
J
H
F
G
E
E
E
E
I
Integrated Display Model Shown
