Use CIP Generic Client Messaging Chapter 3

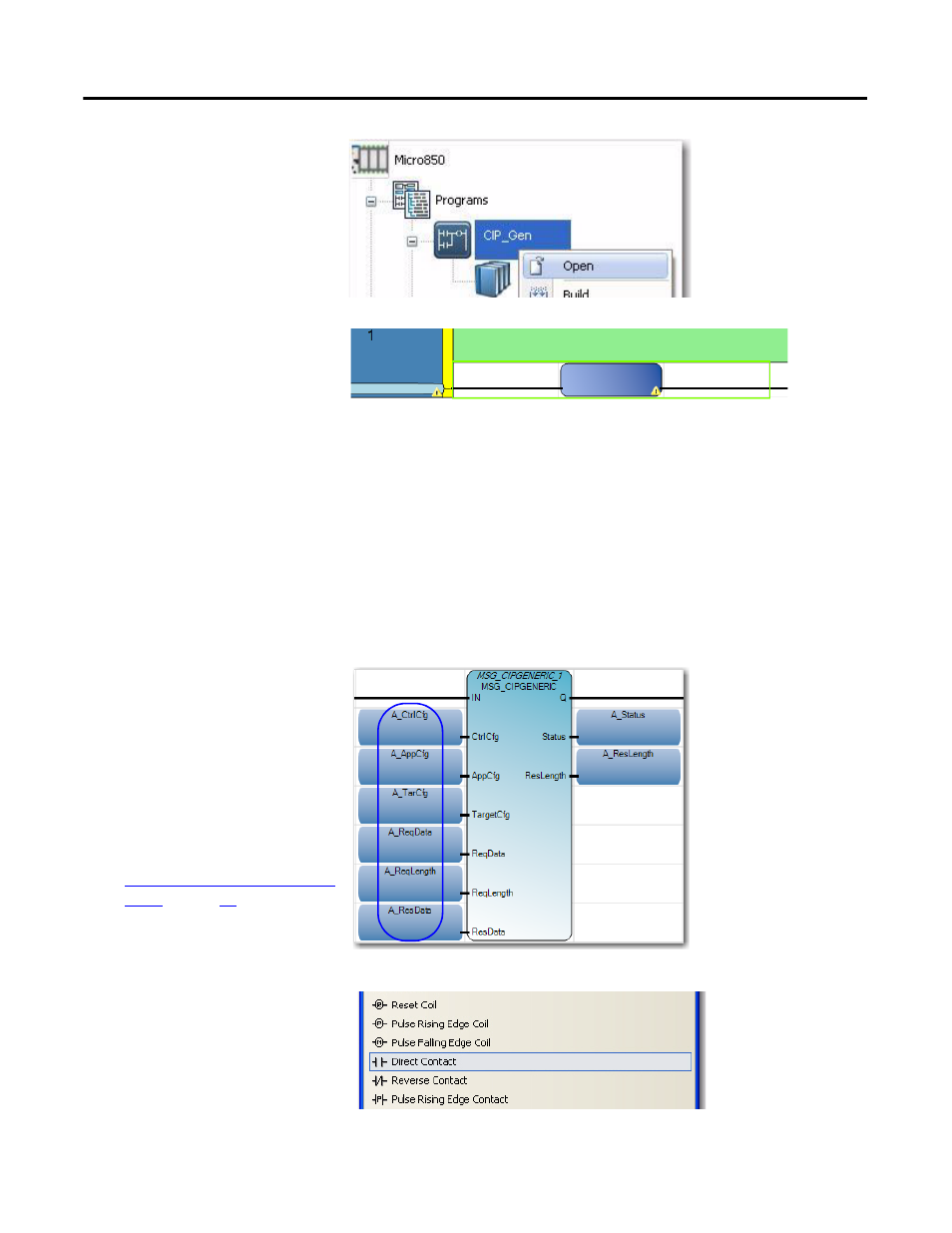

3. Right-click CIP_Gen program,
choose Open.
4. From the Toolbox, double-click
Block to add it to the rung.
Alternatively, you can drag and
drop Block onto the rung.
Your ladder rung should appear
as shown.
5. Add MSG_CIPGENERIC
function block to the rung by
typing MSG_CIPGENERIC
on the Instruction Block
Selector window that appears to
filter the function block.
Choose MSG_CIPGENERIC.
Then, click OK.
6. Create the input variables for the
MSG_CIPGENERIC as
shown.
Also, create BOOL variables
GetCatalog and ConvertString.
To learn more about the
MSG_CIPGENERIC input
and output parameter
descriptions, see
on page
7. Add Get_Catalog contact to the
rung by selecting Direct Contact
from the Toolbox and drag it
onto the rung as shown.
\
