Use CIP Generic Client Messaging
Introduction
The MSG_CIPGENERIC function block enables the sending of CIP explicit messages through Ethernet or serial cable. In
the following example, the function block is used by Controller A to query the catalog number of Controller B.
The catalog information can be retrieved by accessing Micro800 Identity Object:
Class Code: 01
Instance: 01
Instance Attribute: 07 ( Catalog number in Short String format)
Service: 14 (Get Single attribute value)
Before You Begin
Ensure that you have properly installed revision 4 of Connected Components Workbench.
What You Need
• Connected Components Workbench revision 4 or later
• Firmware revision 4 and later
Who am I
talking to?

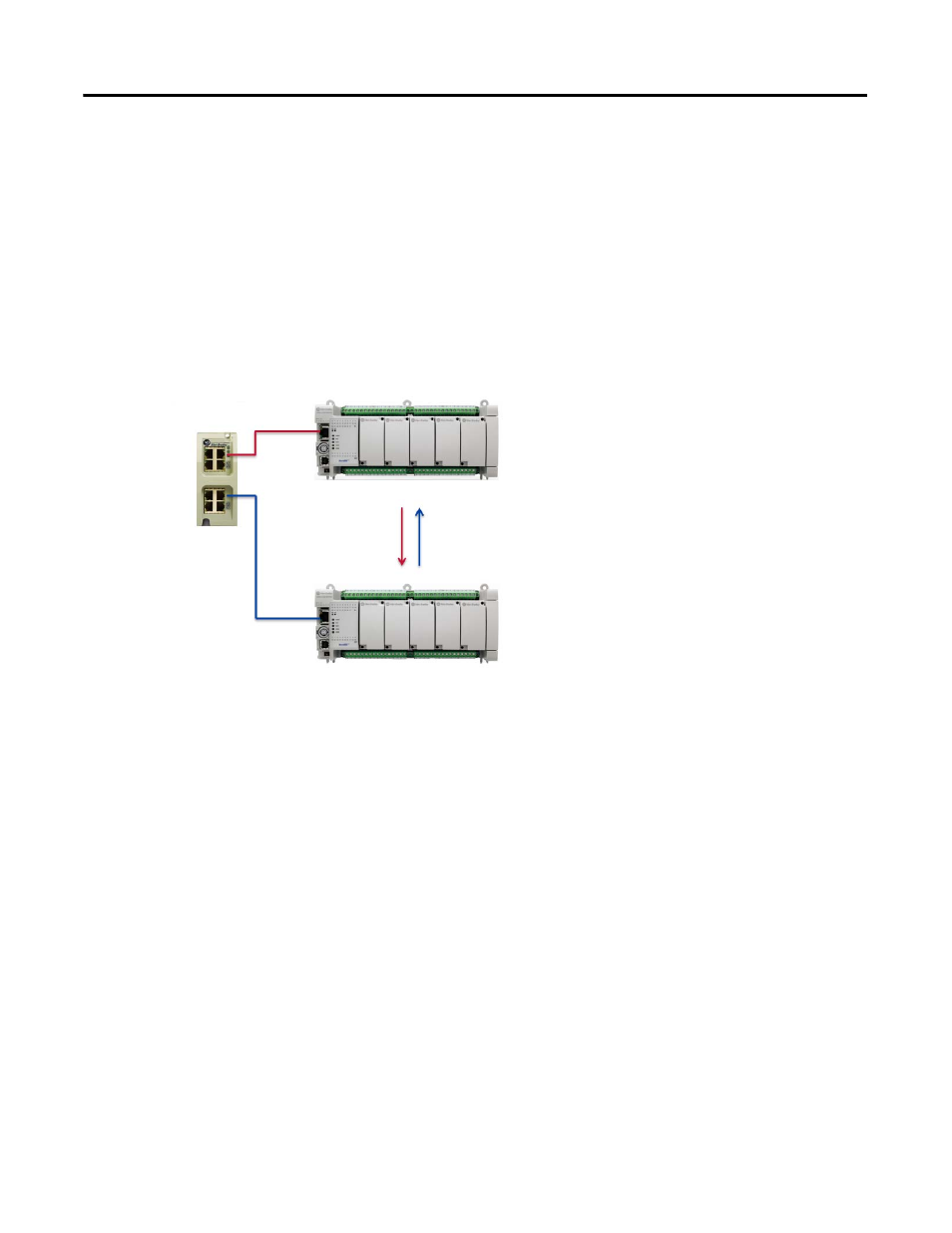

This is 2080-LC50-48QBB
Stratix
Ethernet
Switch
Controller A
Catalog: 2080-LC50-48QVB
IP Address: 192.168.1.18
Subnet Mask: 255.255.255.1
Gateway Address: 192.168.1.1
Controller B
Catalog: 2080-LC50-48QBB
IP Address: 192.168.1.19
Subnet Mask: 255.255.255.
Gateway Address: 192.168.1.1
