Install an add-in card – Rockwell Automation 6180W-xxxx VersaView Workstation User Manual User Manual
Page 38
Publication 6180W-UM001H-EN-P - August 2007
38 Replace System Components
Install an Add-in Card
Follow these steps to install an add-in card.
1. Disconnect power from the computer.
2. Remove the back cover of the 1500W or the non-display
computer; remove the top cover of the 1200W computer.
3. Remove the hold-down brackets by removing the screws
securing them to the chassis and then lifting them out of the
bracket latch at the other end.
4. Remove the screw securing the slot cover to the chassis at the
selected slot location and remove the slot cover.
5. Remove the add-in card from its anti-static packaging.
6. Hold the card by the edges and firmly press the board into the
slot on the backplane.
7. Confirm that the card is fully seated in the backplane connector.
8. Attach the card orb with the slot cover screw removed earlier.

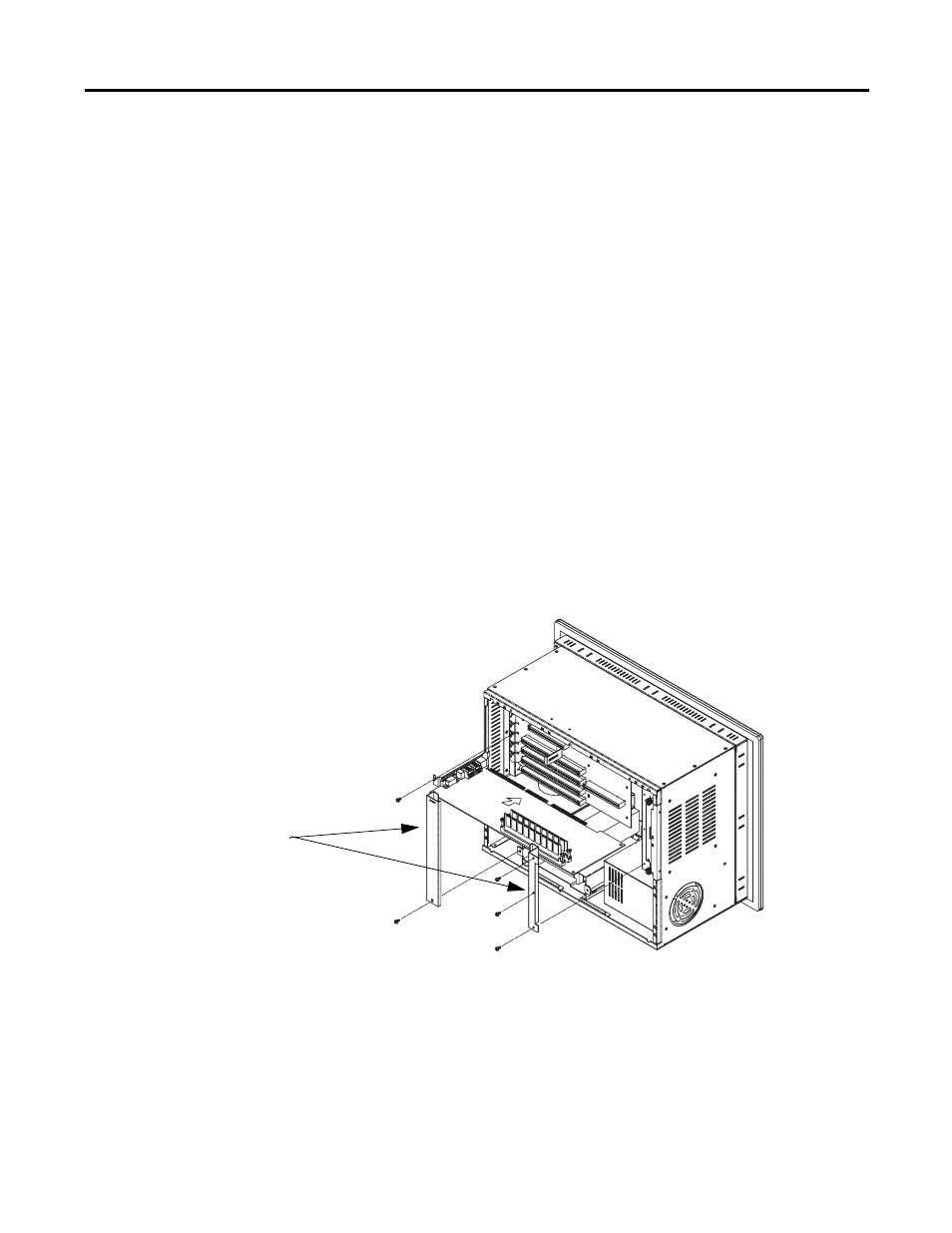

Hold Down Brackets
