Function keys, Numeric keypad, Figure 1.1 keypad terminal – Rockwell Automation 2711-KA1_KC1_TA1_TA4_TC1_TC4 PanelView Terminals for DOS/Windows User Manual
Page 19: Panelview, Numeric keypad function keys, Special keys

Introduction to PanelView 1200 Operator
Terminals
Chapter 1
1-9
You can also configure the terminal to beep when a key is pressed.

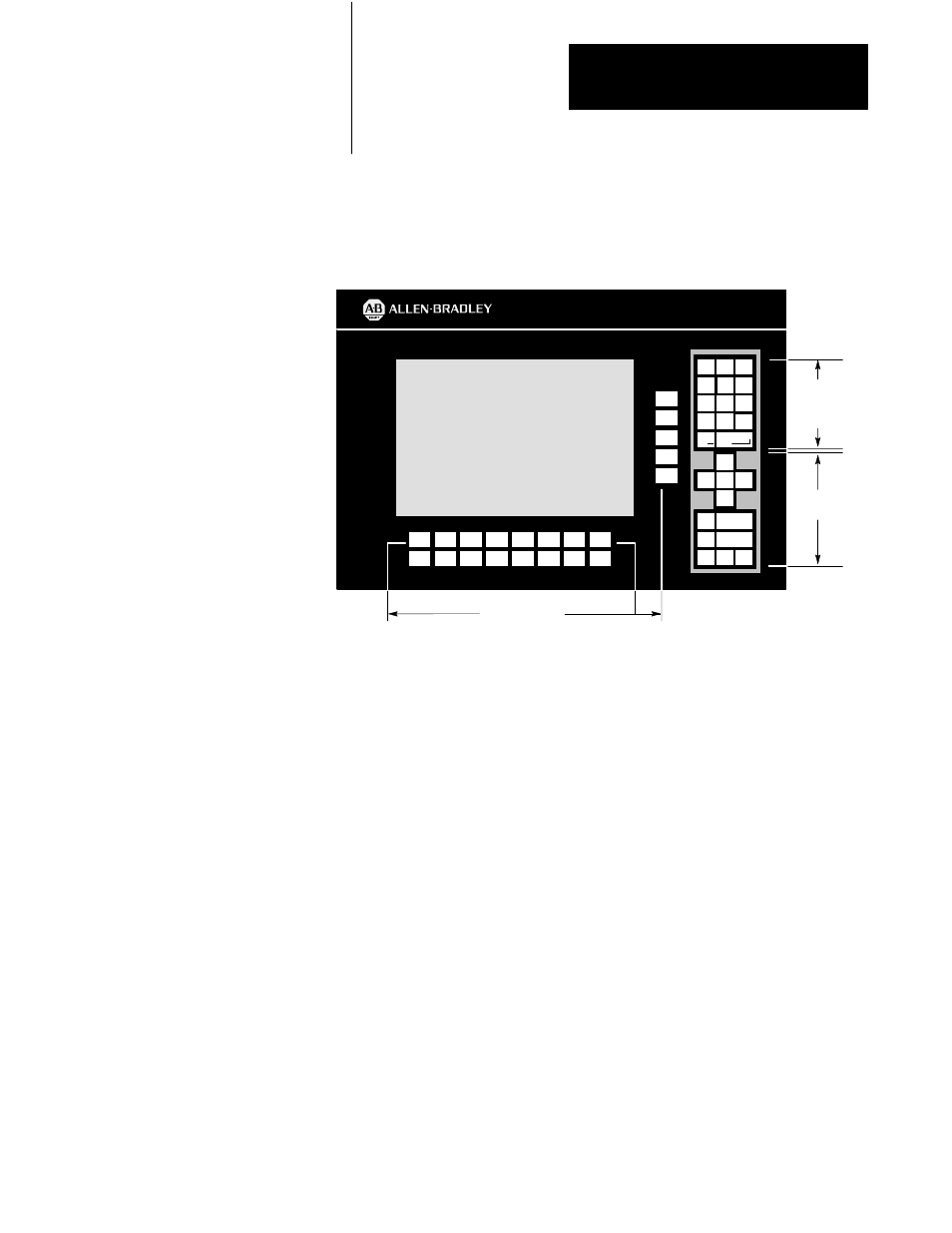

Figure 1.1
Keypad Terminal
Numeric
Keypad
Function Keys
21000
Special Keys
7
8
9
4
5
6
1
2
3
•
0
-
Y
A HOME
"
B
CANCEL
SELECT
Raise
Lower
F21
F20
F18
F17
F16
F8
F15
F7
F14
F6
F13
F5
F12
F4
F11
F3
F10
F2
F9
F1
PanelView
A
A
F19
Function Keys
When creating screens, you can assign any of the 21 function keys to
objects so that they can perform a wide variety of functions, ranging from
turning on PLC input bits to changing screens. Keys can have different
functions for each screen created.
Numeric Keypad
The keypad terminal has a numeric input keypad that includes number
keys, Enter, Backspace, – (negative), and . (decimal) keys. When you
need to make a numeric entry, you call up a pop-up Numeric Entry
Scratchpad that displays the numbers as you type.
The Numeric Entry Scratchpad is displayed on the screen any time the
operator is required to enter numeric data and send it to a PLC controller.
