3-4 NI-FBUS Configurator Overview

Each object in the Project window has its own menu that appears on
the main taskbar when you select the object. You can also view the
menu by right-clicking the object, as shown in Figure 3.3.

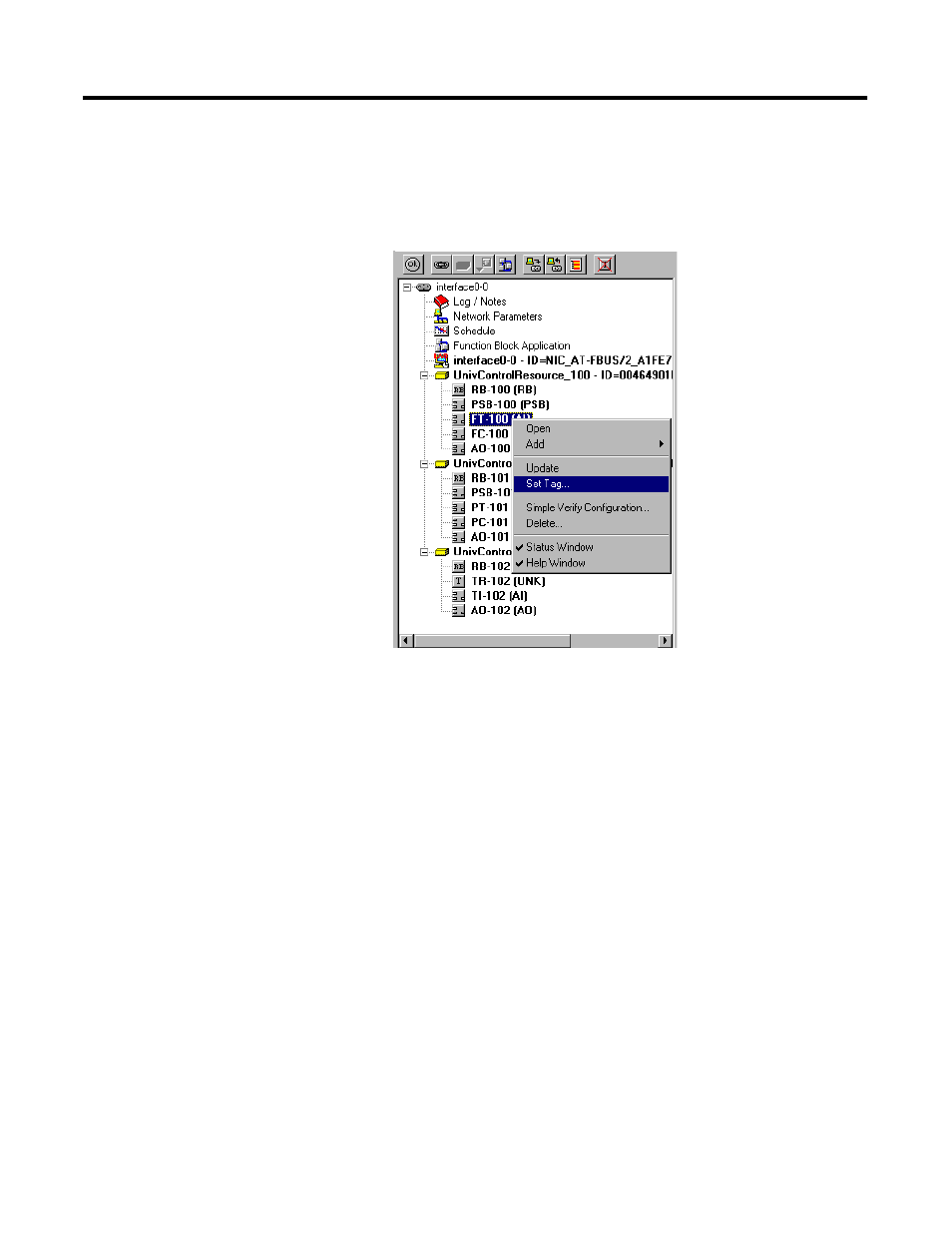

Figure 3.3 Project Window Pop-Up Menu

Conventions

The NI-FBUS Configurator uses the following standard user interface
conventions:

• Double-click an object to open the configuration interface.

• Right-click an objewct to display a popup menu that lists actions

related to that object.

• Single-click an object to select it and display a popup menu in

the menu bar at the top of the Main window.

• Single-click an object to select it and hover the cursor over the

object to view the help information for that object. The
appropriate help information appears in the Help window.

• Drag and drop icons (block or device) from one window and

into another.
