Constructing a DH II Cable System

Chapter 6

6-6

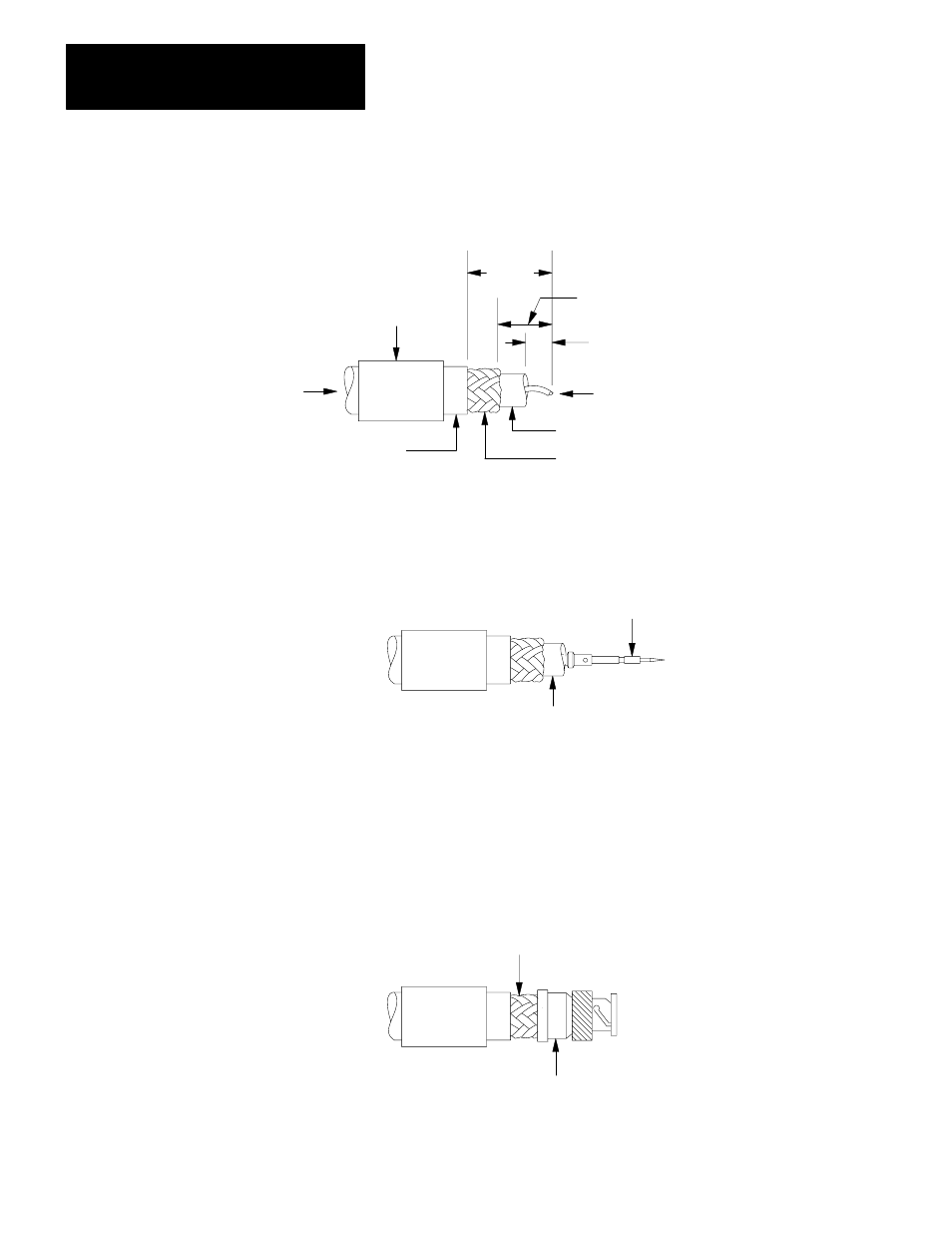

Using a stripping tool, remove 0.2 inch (5.1 mm) of dielectric from the
end of the cable segment, exposing the center conductor.

5.1mm

(0.2 in)

7.6mm

(0.3 in)

17.8mm

(0.7 in)

Center

Conductor

Dielectric

Braided Shield and

Foil Shield

Insulating

Jacket

Coaxial

Cable

Plug Sleeve

12648

Push the plug pin as far as possible onto the center conductor of the cable.

Plug Pin

Dielectric

12648

Using a crimping tool, crimp the plug pin onto the center conductor.

Push the braid back against the dielectric.

Slide the plug body over the pin and cable end. Make sure the neck of the
plug body goes under the braid. Push the plug body as far as possible onto
the cable.

Braided Shield

Plug Body

12648
