Constructing a Data Highway or
Data Highway Plus Cable System
Chapter 3
3-25

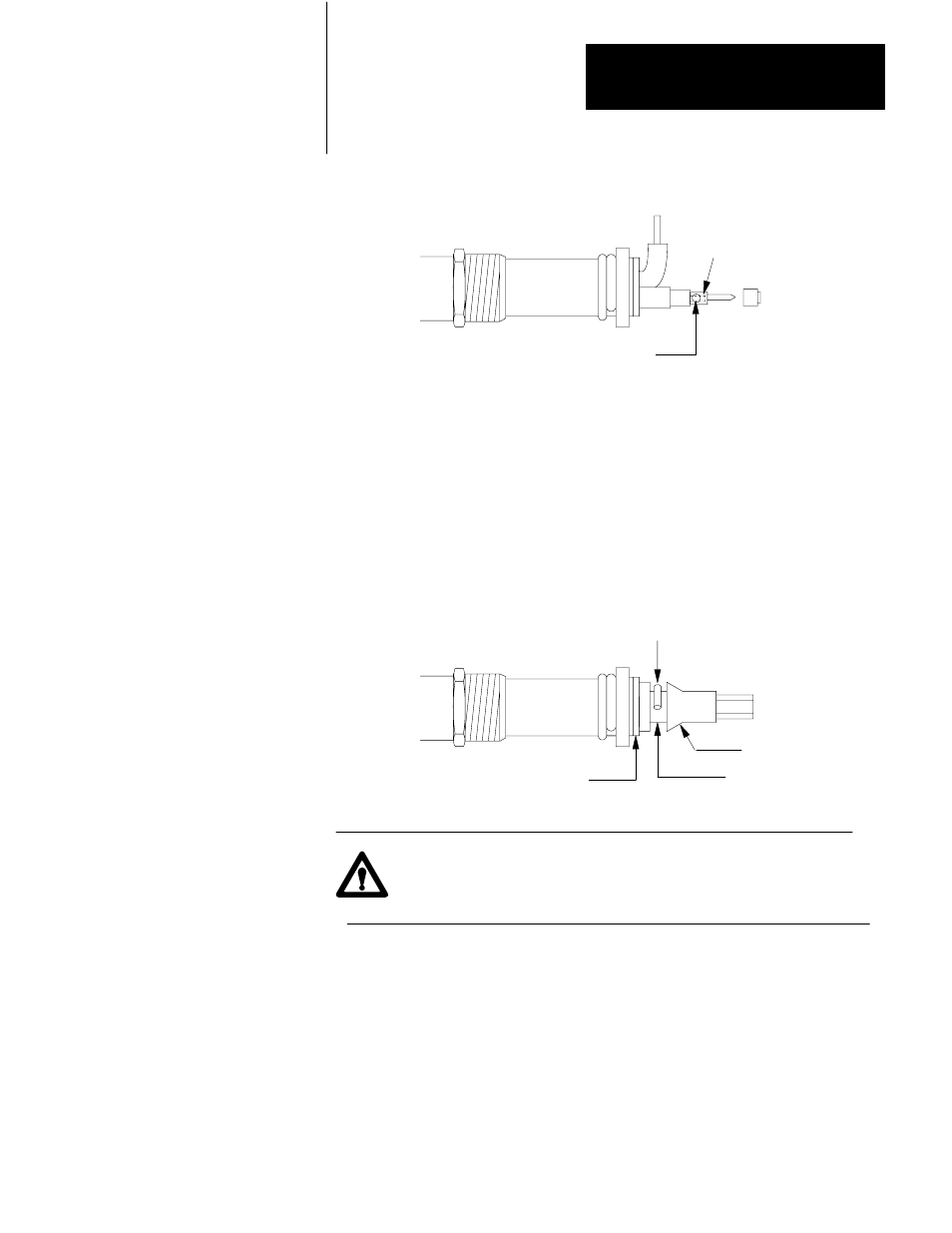

g. Slide the pin dielectric over the pin assembly.
Blue
Conductor Wire
18731
Hole in Large
End of Pin
Pin Dielectric
h. Slide the shield over the pin assembly and seat the shield against the
insulating washer. Make sure the clear conductor wire extends
through the notch in the large end of the shield.
i. Wrap the clear conductor wire around the groove in the shield.
j. Solder the clear conductor wire to the shield, making sure the solder
flows well to produce a good connection. Do not allow the solder or
the wire to extend above the ridges of the shield.
Clear Conductor Wire
Shield
Ridge of Shield
Groove in Shield
Insulating
Washer
10808B
ATTENTION: To avoid burning yourself, allow the shield and
solder to cool to room temperature before proceeding to the
next step.
k. Carefully remove any excess solder from the surface of the shield.
