Configure output modules – Rockwell Automation 1734-XXXX POINT I/O Digital and Analog Modules and POINTBlock I/O Modules User Manual
Page 203

Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
Configure POINT I/O Modules for DeviceNet Networks 211
Configure Output Modules

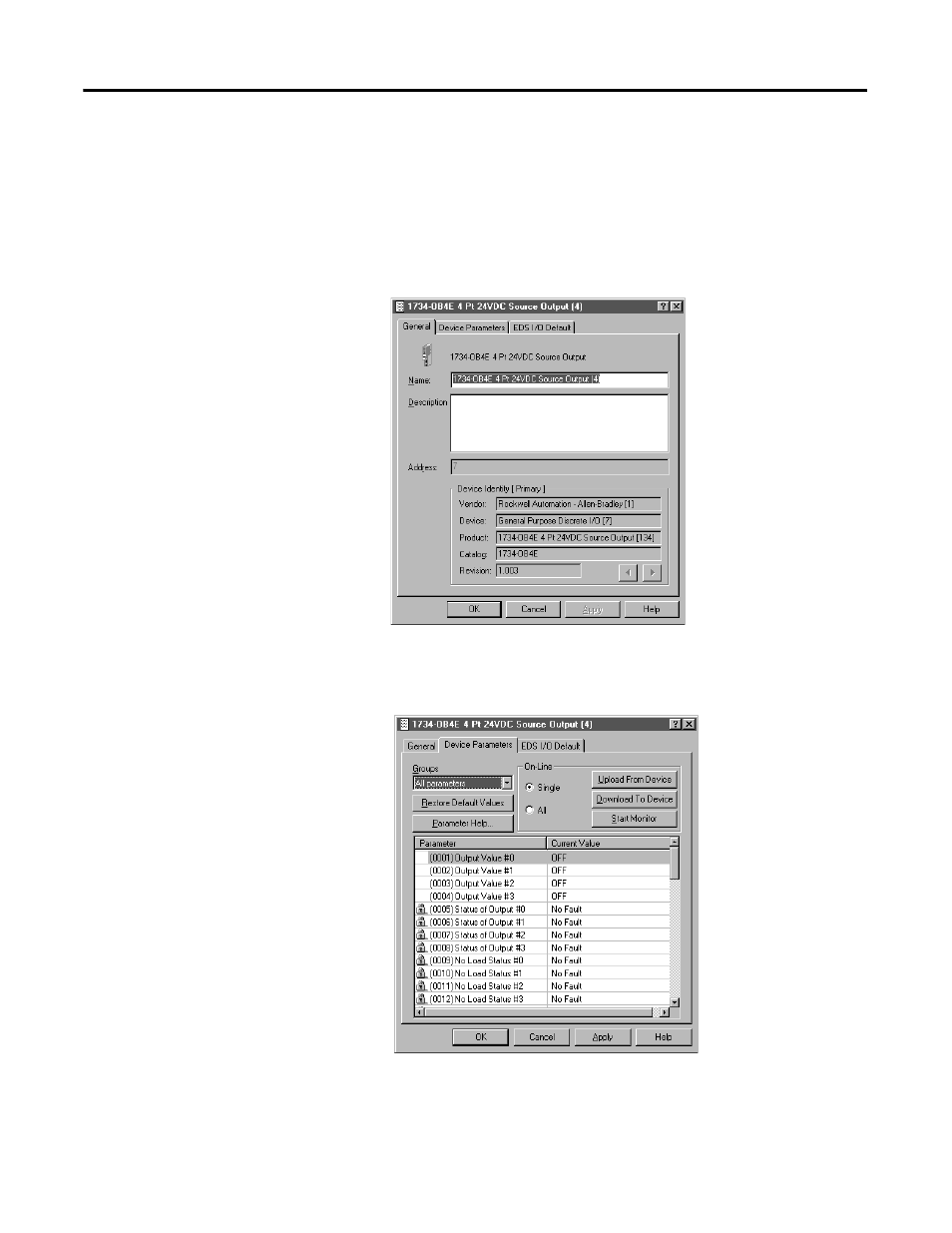

To configure output modules, follow this procedure. Output modules use dialogs
similar to the one for the 1734-OB4E output module used in this procedure.
1. From the General Parameters dialog, click Device Parameters to get the
dialog for setting parameters.
2. From the Device Parameters dialog, set parameters for the module to
include sequential addressing and autobaud or, if not using autobaud,
communication rate.
The Group’s pull-down menu includes the following:
•
All parameters
•
I/O output value
