Page 137: Chapter 6, Troubleshoot with the indicators, Chapter

Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
Chapter
6
Troubleshoot with the Indicators
About This Chapter
Read this chapter for information about troubleshooting with the following
indicators:
•
Module status
•
Network status
•
Power indication
•
Calibration status
•
I/O POINT status (ON/OFF/fault or diagnostic)
Refer to each module’s individual indicators for detailed information.
About Module Diagnostics
All status and diagnostic information (strobed, polled, cyclic, or change-of-state)
is reported back over the network communication adapter. A single point of
failure is detected and reported at the module and to the control system.

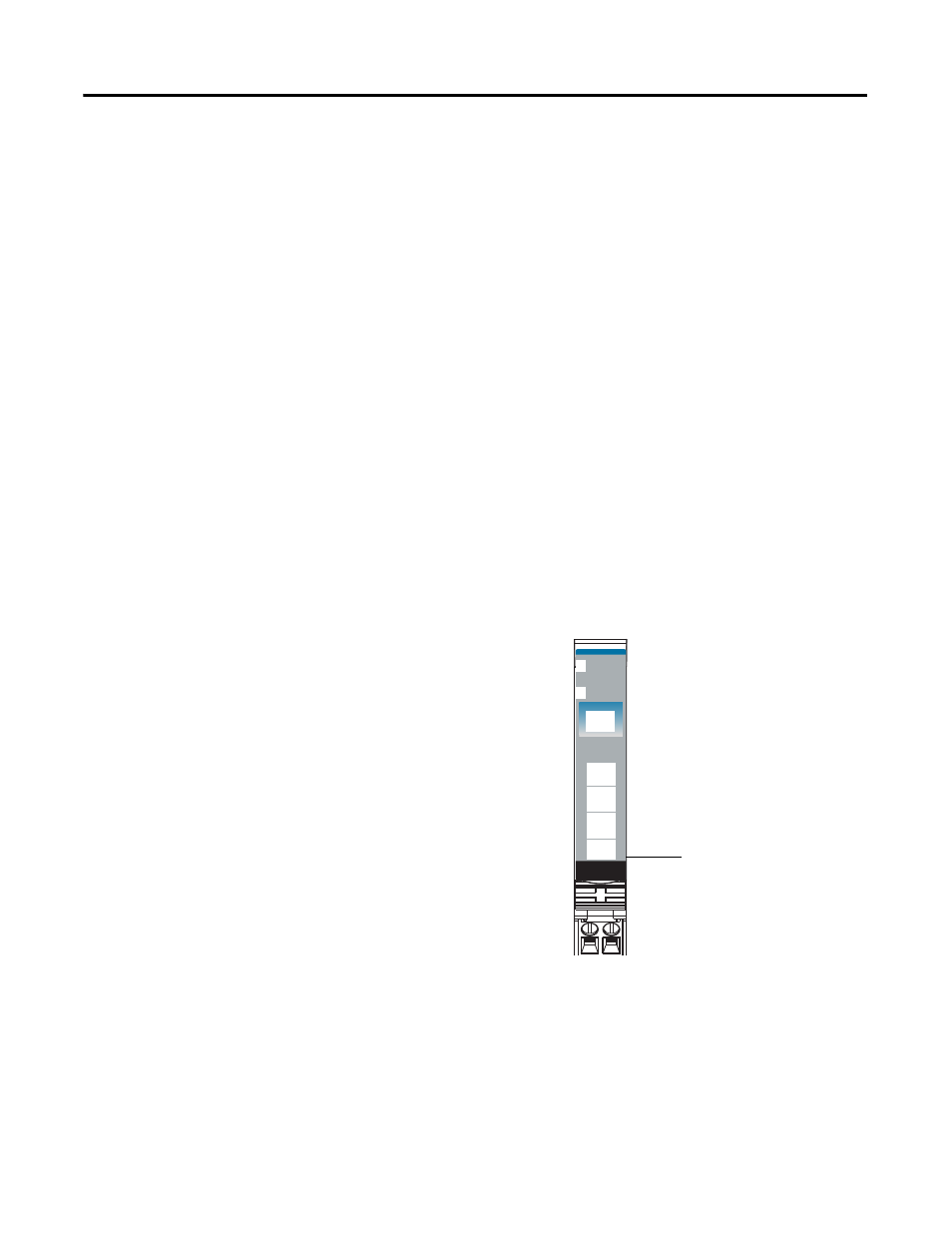

24VDC
Sink
Input
Module
Status
Network
Status
1734
IB4
NODE:
0
1
2
3
Node-level Diagnostics:
Point-level Diagnostics:
·
Module Status Indicator
indicates the health of the
module
·
Network Status Indicator
indicates the health of the
POINTBus or backplane
·
I/O Point Indicator
indicates I/O (ON/OFF or fault/
diagnostic) status
·
Digital outputs
Short circuit for ON-state
Open circuit for OFF-state
·
Analog I/O
Loss of field power
Open wire
Calibration status
I/O Channel Status
Module Status
Network Status
42011
