Rockwell Automation 1734-XXXX POINT I/O Digital and Analog Modules and POINTBlock I/O Modules User Manual
Page 174
Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
182 Configure POINT I/O Modules in RSLogix 5000 Software

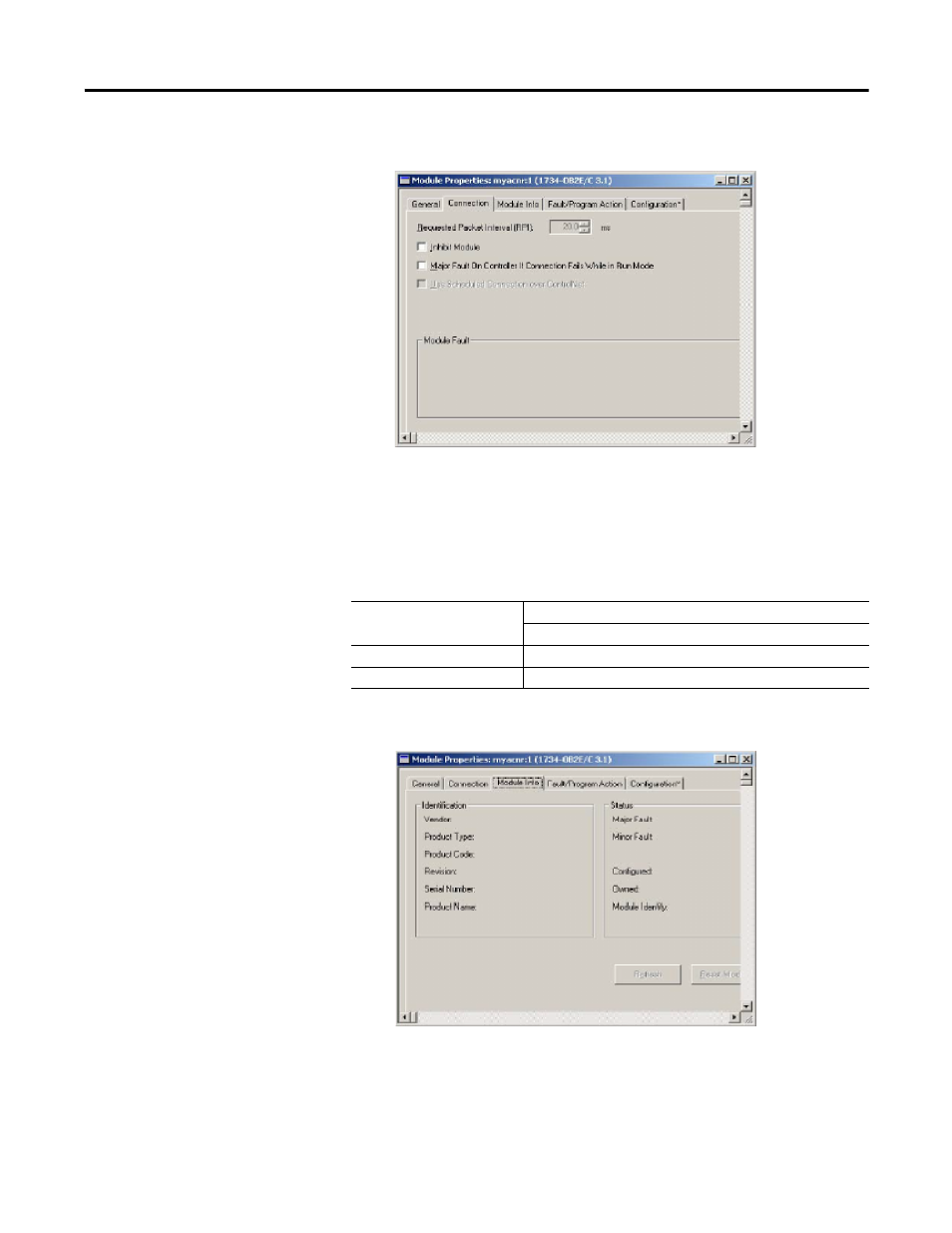

3. Choose the Connection tab at the top of the dialog.
4. Leave the following unchecked:
•
Inhibit Module
•
Major Fault On Controller If Connection Fails While in Run Mode
5. Complete the entry for Requested Packet Interval (RPI), if the field is
selectable, per the following table.
6. Choose Module Info to see a dialog that provides identification and status
information
7. See the appropriate sections of this appendix for information about the
following tabs and dialogs, which you see based on the module you added:
•
Fault/Program Action
•
Configuration
Adapter Configuration
Value for PRI for Module Type
Digital
Direct Connection
50 ms
Rack Optimization
RPI is not selectable
