Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
Configure POINT I/O Modules in RSLogix 5000 Software 185
– General
– Connection
– Fault/Program Action
– Configuration
Work with Dialogs for Digital Input Modules
To complete entries for the dialogs for input modules proceed as follows.
1. Add an input module with these entries for connection type.
• Data
• Rack Optimization
2. From the top of the General dialog, select Configuration,
You see the Configuration dialog, which is what you use to configure the
filter for input points for the following:
•
Off to On
• On to Off
The Configuration dialog displays configuration data for each channel in
individual rows in a table. Input modules support separate filter times for
Off to On and On to Off transitions. The number of input channels varies
based on the type of module as in these examples.
•
A 1734-IA2 module has 2 input channels (0 to 1).
• A 1734-IB4 module has 4 input channels (0 to 3).

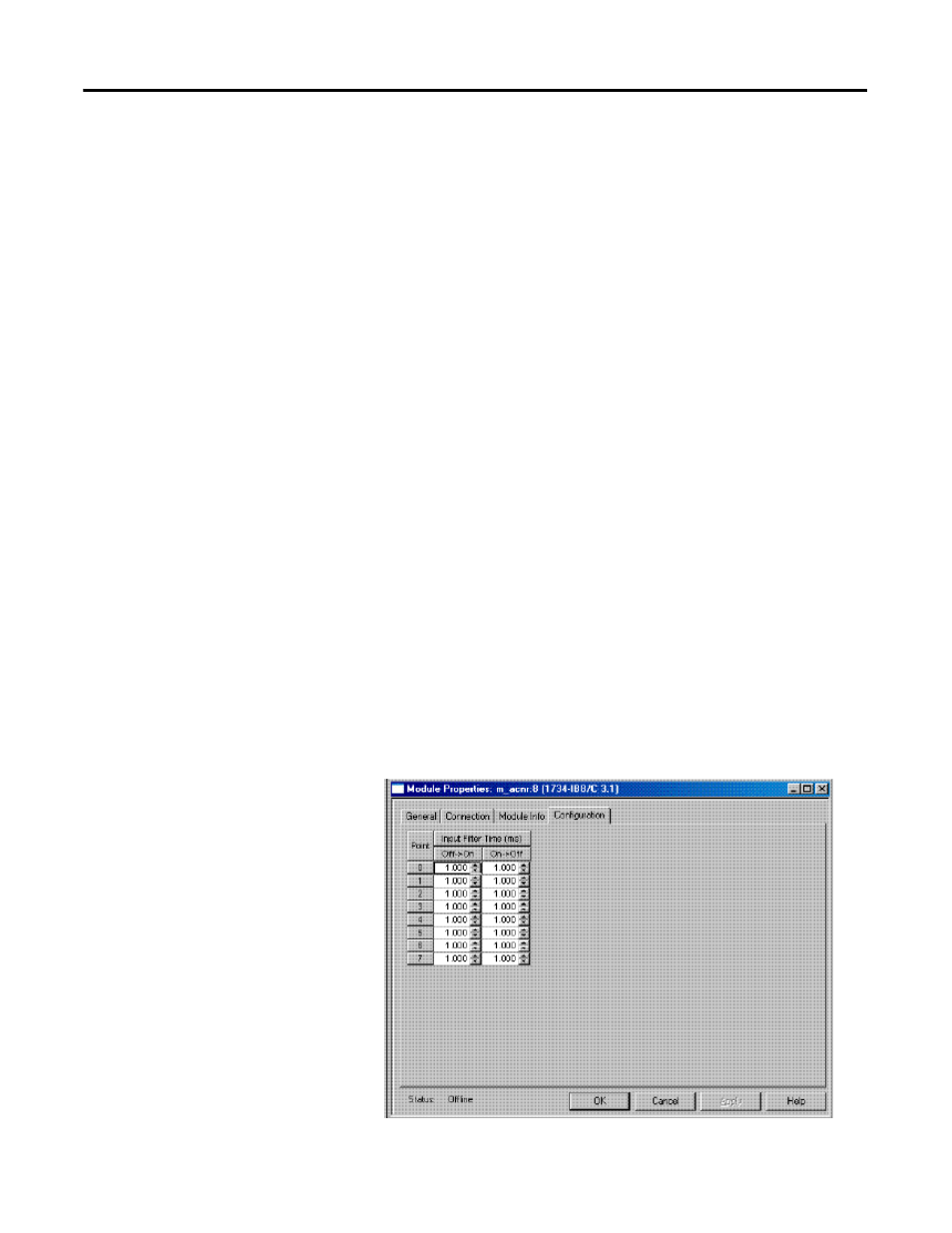

See the figure for a Configuration dialog for an 8-point input module.
