2–3

Install Power Supply

Publication 1775Ć10.1 - March 1996

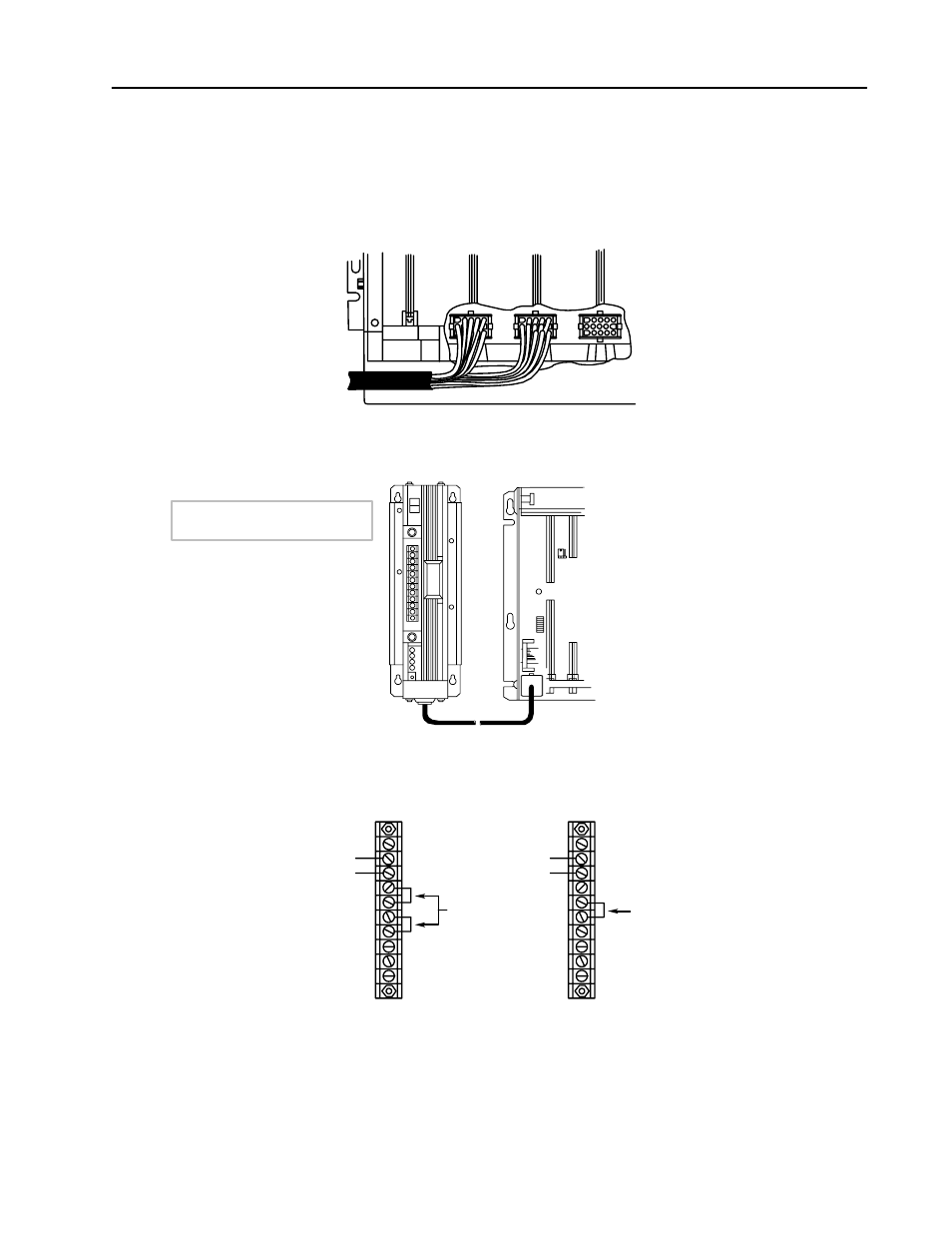

Install 1775ĆP1 Power Supply into the PLCĆ3

a

Connect the 1775ĆCAP chassis power cable to the processor chassis.

b

Optionally, connect the I/O chassis to the power supply using an I/O power cable.

c

Make AC power connections.

Power Cable

L2

120V ac

L1

L2

220/240V ac

L1

Jumpers

Jumper

(a) 120V ac Operation

(b) 220/240V ac Operation

We do not recommend this connection

for backup system configurations.
