B-2 Run the 1784-KTx Diagnostics for DOS
1784-6.5.22 - November 1999
Troubleshooting the KT x Card
If your KTx card is not functioning properly, follow these steps:
1. If you changed the default settings for the KTx card, check and correct the
configuration. You may have configured the KTx card at an address already
in use by another module.
2. Continue with the instructions in this chapter to run the diagnostics to
determine if there are any hardware failures (see pages A-4 through A-20).
F2
F7
F5
F4
F3
F10
F1 F10
Exit

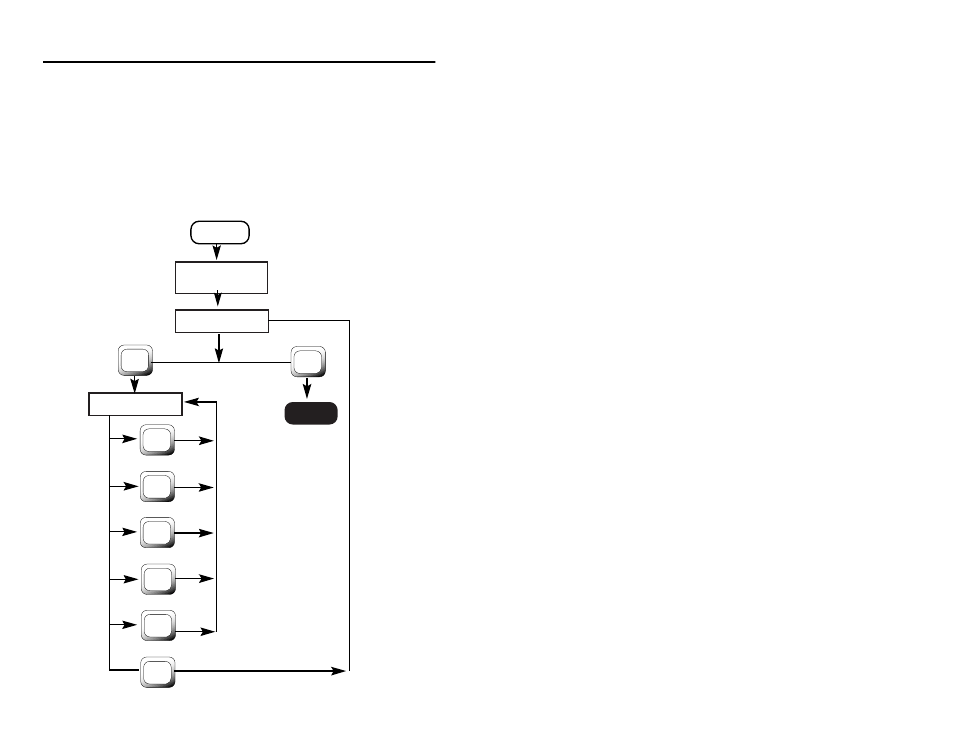

Define a card to test
M16 Tests
Computer Host Tests
KT x Card Test
copy KTx diagnostics
onto your hard disk
access diagnostics
Dual-port Tests
start diagnostics
Start
