2-6 Configure the Card Hardware
1784-6.5.22 - November 1999

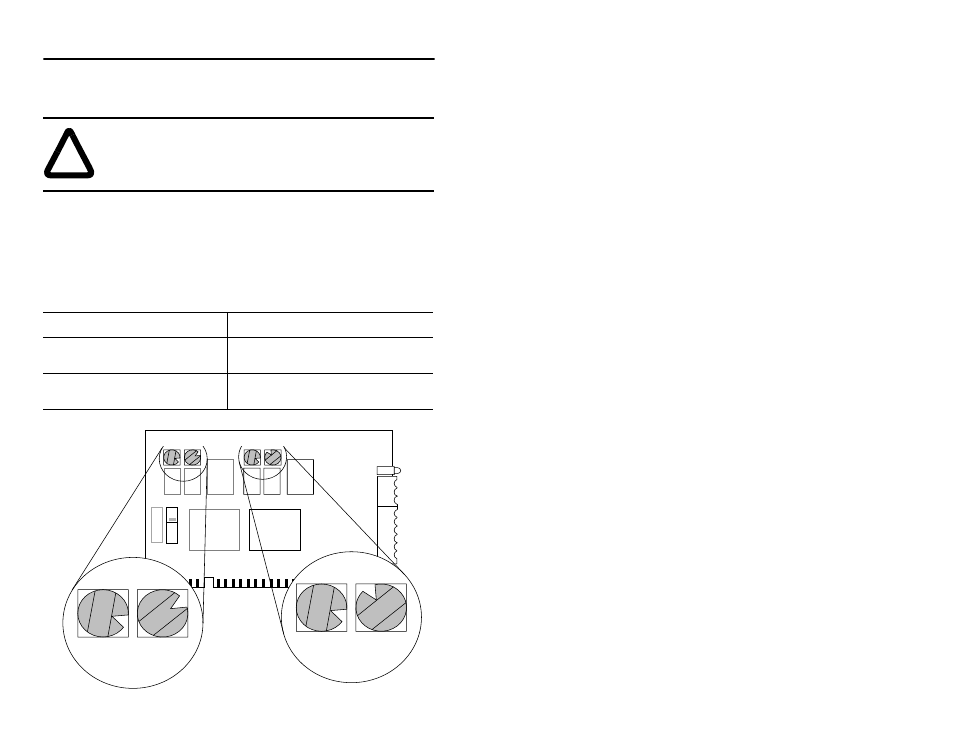

Set the Card’s Switches
To set the card’s switches, follow these steps:
1. Follow the card handling instructions on page P-2.
2. Remove the 1784-KTx card from the anti-static clamshell.
3. Use the decision table below.
!
ATTENTION: When you set the switches, be certain to avoid touching
other components on the card.
If you need to: Then:
use the card’s default memory address
settings shown on page 2-1 go to the next section, Selecting the Interrupt
Setting
set a new base memory address turn the knobs to reflect the address(es) from
Table 2.C on page 2-5
012 34 56 789ABC
D EF 012 34 56 789ABC
D EF 012 34 56 789ABC
D EF 012 34 56 789ABC
D EF
012
34
56
789A BC
D
EF 012
34
56
789A BC
D
EF
012
34
56
789A BC
D
EF
012
34
56
789A BC
D
EF
Channel 1
SW3 SW4 Channel 2
SW1 SW2
D B
Channel 2 address
shown in DB00: position
SW1 SW2
SW3 SW4
D 7
Channel 1 address
shown in D700: position
INTERRUPTS
CH2 CH1
Your switches might
resemble the
switches shown here.
