Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers 81
6. Expand the + next to Other to use the 1769 generic selection for the
1769-BOOLEAN module.
7. Click OK.

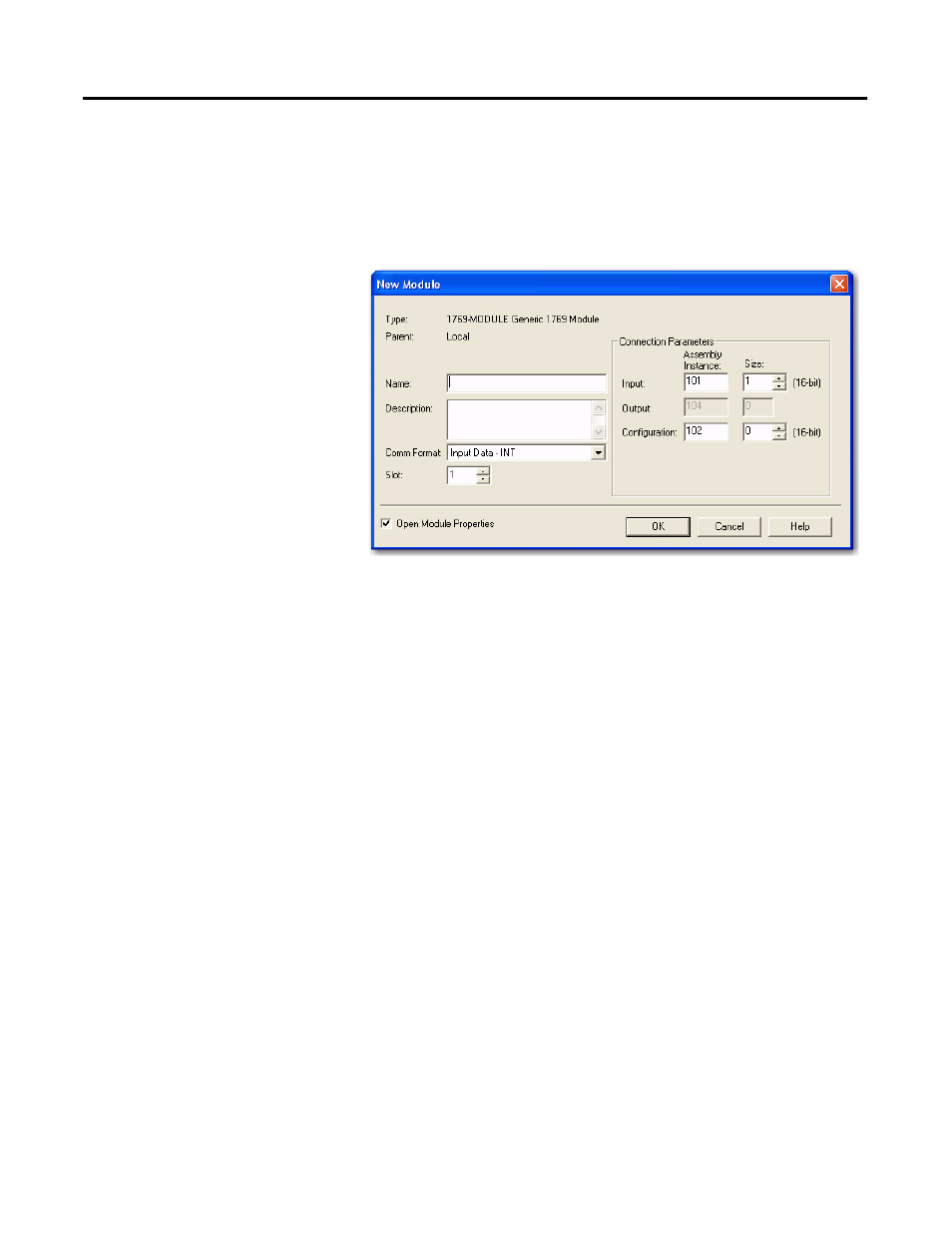

The New Module default Generic Profile screen appears.
This is the default Generic Profile screen.
8. (optional) Fill in the Generic Profile screen name.
This helps to easily identify the module type configured on your local
Compact Bus. The Description field is optional and may be used to
provide more details concerning this I/O module in your application.
The next parameter to configure is the Comm Format.
9. Click the down arrow for the Comm Format parameter menu list and
select Data - INT.
10. Select the slot number.
The slot number begins with the first available slot number, 1, and
increments automatically for each subsequent Generic Profile you
configure.
