Installation and Wiring 31
System Assembly The module can be attached to the controller or an adjacent I/O module
before or after mounting.
Refer to Panel Mounting Using the Dimensional Template on page 33, for
mounting instructions, or to DIN Rail Mount on page 34.
Refer to Replace a Single Module Within a System on page 34, for information
on working with a system that is already mounted.

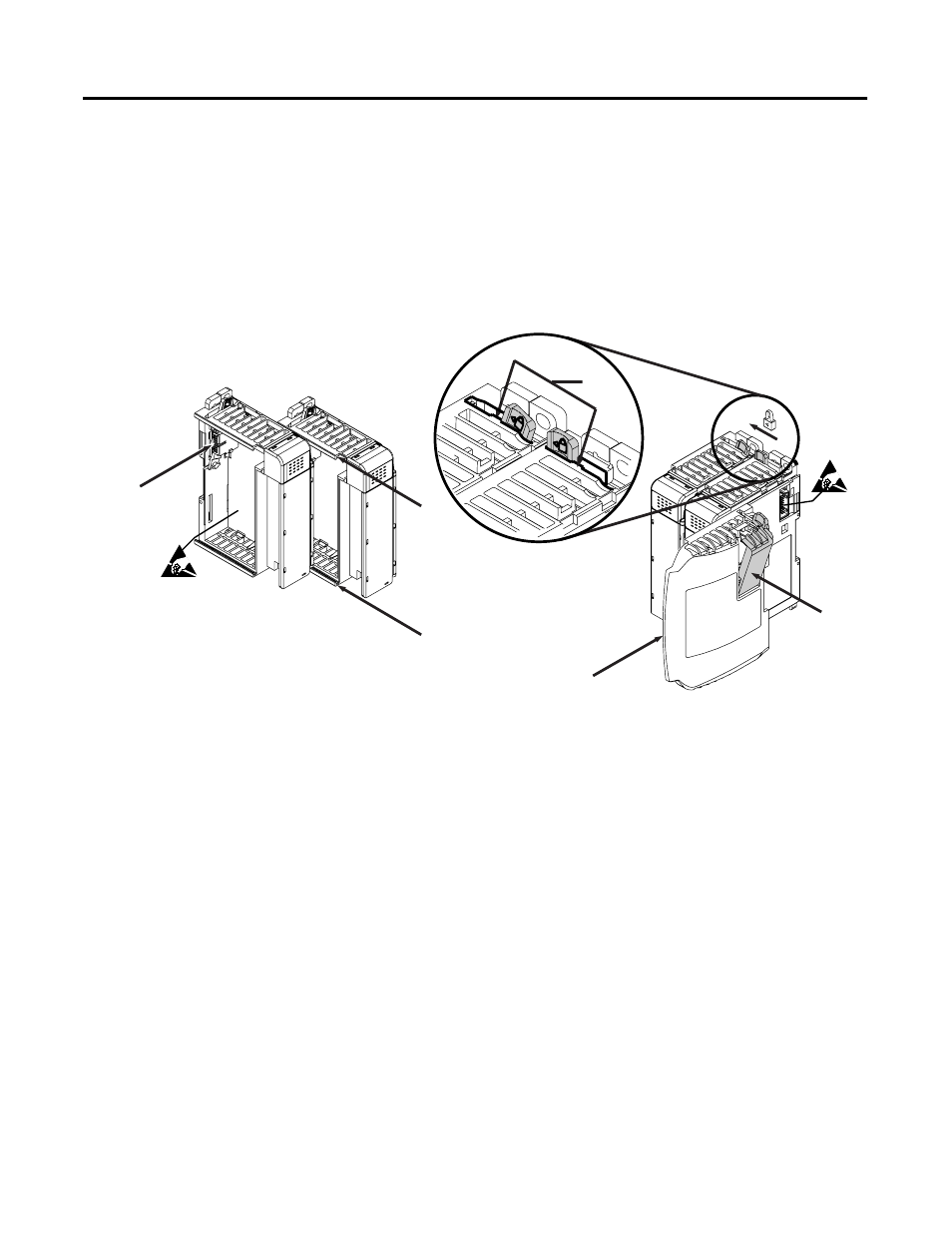

1. Disconnect power.
2. Check that the bus lever of the module to be installed is in the unlocked
(fully right) position.
3. Use the upper and lower tongue-and-groove slots (1) to secure the
modules together (or to a controller).
4. Move the module back along the tongue-and-groove slots until the bus
connectors (2) line up with each other.
5. Push the bus lever back slightly to clear the positioning tab (3), using
your fingers or a small screwdriver.
6
5
4
3
1
1
2
