Publication 1404-IN007D-EN-P - October 2004
Powermonitor 3000 37

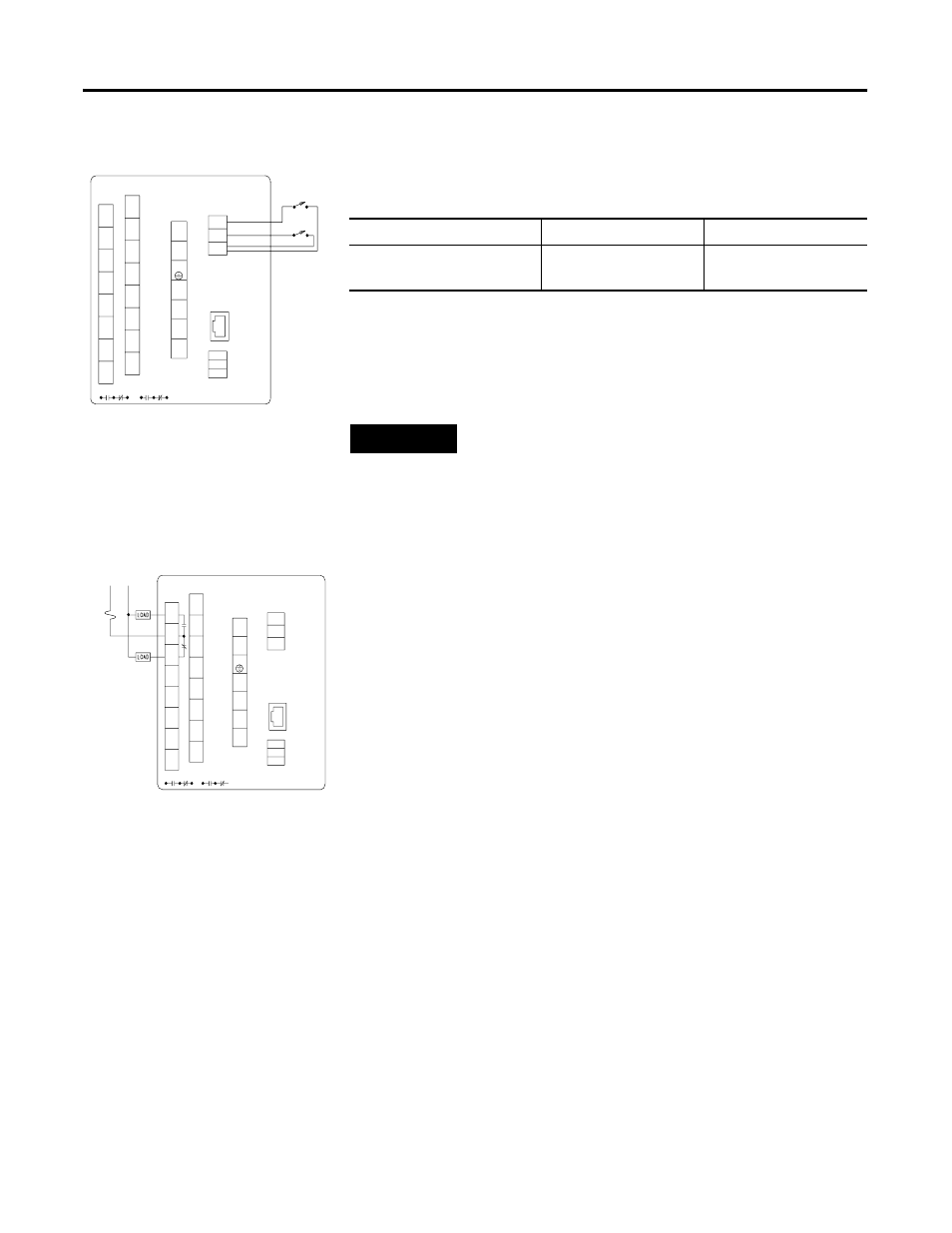

Figure 28 Status Input Connections
Isolation Voltage 500V status input to case; 500V status input to
internal digital circuitry.
Figure 30 Control Relay Connections
Relay and KYZ Outputs
Figure 30 shows the Form C relay output connections and an example
of customer wiring to a supply voltage and two loads. Terminal R11 is
the common connection, R14 is the normally-open connection and
R12 is the normally-closed connection. You must supply the wetting
voltage and overcurrent protection for the circuit connected to the
relay output. Refer to Technical Specifications on page 59 for further
information.
The KYZ output is a solid-state relay designed for low-current
switching and long life. Its normal application is to provide a pulse
based on energy usage (or one of five other parameters) to an
external pulse accumulator. Terminal K is common, Y is
normally-open, and Z is normally-closed.
Refer to Powermonitor 3000 User Manual, publication 1404-UM001,
for further information on the application and operation of relay and
KYZ outputs.
Powermonitor 3000
MASTER MODULE
-
+
R14 R14
R11
R12
N/C
N/C
I1-
I1+
I2-
I2+
I3-
I3+
I4-
I4+
Y
K
Z
R14 R11 R12 Y K Z
L1
(+)
L2
(-)
GRD
V1
S1
S2
SCOM
V2
V3
N
DISPLAY
MODULE
SHLD
RS-485
N.O.
Contact
N.O.
Contact
Table 29
Parameter Condition 1 Condition 2
Applied resistance verses
status state 3.5K Ohms or less = ON 5.5K Ohms or greater = Off
TIP
Status Input S2 can be configured for external
demand pulse input. See Powermonitor 3000 User
Manual, publication 1404-UM001, for more
information.
10A
Fuse
L1 N
Powermonitor 3000
MASTER MODULE
-
+
R14
R11
R12
N/C
N/C
I1-
I1+
I2-
I2+
I3-
I3+
I4-
I4+
Y
K
Z
R14 R11 R12 Y K Z
L1
(+)
L2
(-)
GRD
V1
S1
S2
SCOM
V2
V3
N
DISPLAY
MODULE
SHLD
RS-485
