8-10 Step 8 - Verify the Setup and Adjust Switches if Required
1329I-5.5 Integrated Drive/Motor — January, 2000

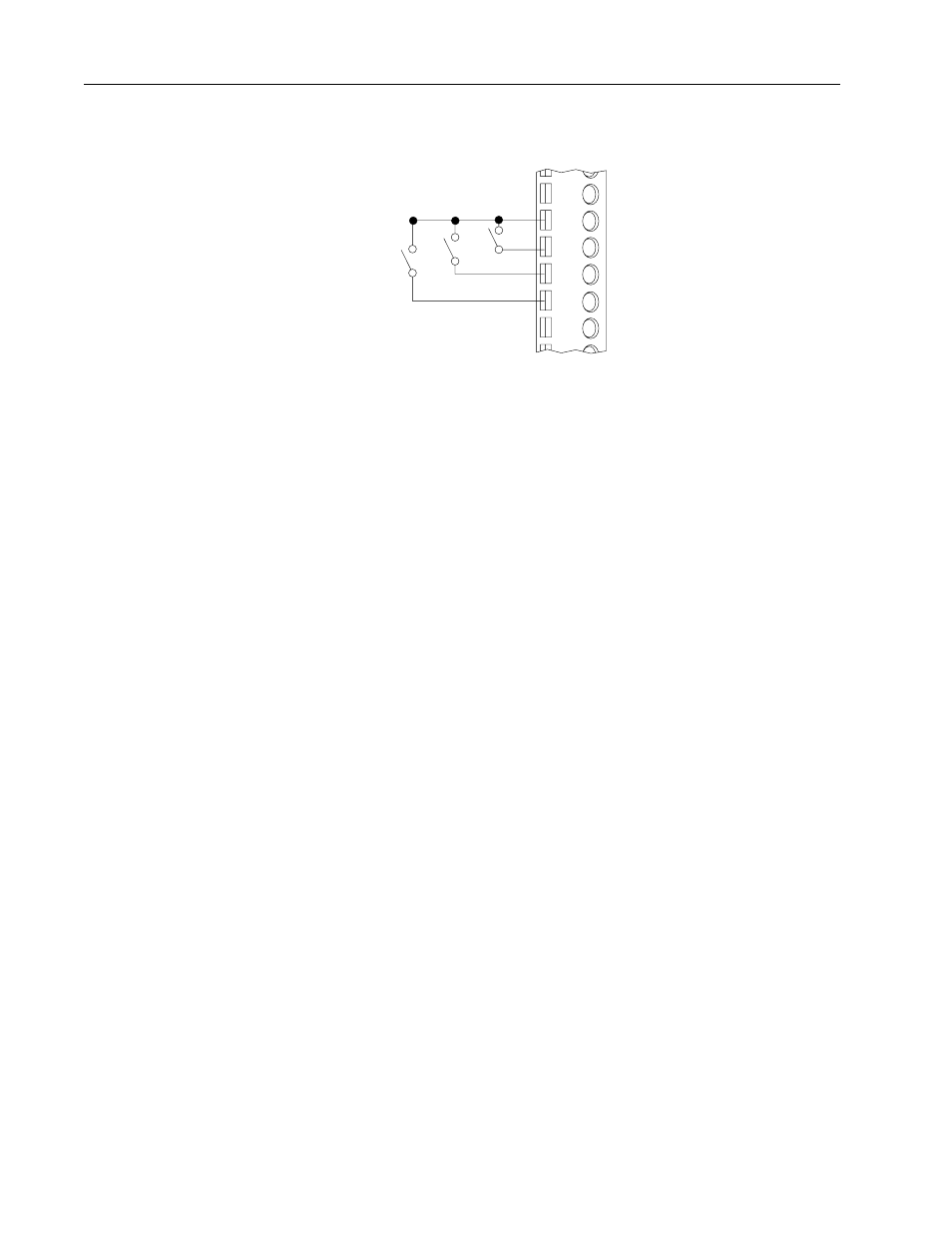

Figure 8.6
Wiring Minimum Speed
8.3.9 Start Mode Select (Position 9)
Important: This applies only to the local operator control units.
The switch at position 9 is used to select whether the unit gets its control from the
operator controls or from the terminal block. If this switch is set to the OFF position,
the control will come from the operator controls. If this switch is set to the ON position,
the control will come from the terminal block and the operator controls are not
functional.
Settings (Position 9):
OFF position (Default) = Control from the Operator Controls
ON position = Control from the terminal block
Important: The drive will not start when power is applied after changing this setting.
The Start command must be reasserted in order to start the drive.
8.3.10 Parameter Mode for DeviceNet Option (Position 10)
Important: This applies only to the DeviceNet Communication Option.
The switch at position 10 is used to select whether the unit gets its parameter settings
from the rotary switches and setup DIP switch (SW1, SW2, and SW3) or from the
EEPROM memory. If this switch is set to the OFF position, the settings will come from
the rotary switches and setup DIP switch (SW1, SW2, and SW3). If this switch is set
to the ON position, the settings will come from the EEPROM memory. Refer to the
Bulletin 1329I DeviceNet Option User Manual for information on installing and
configuring the DeviceNet Communication Option.
Settings (Position 10):
OFF position (Default) = Parameter settings from the rotary switches and setup DIP
switches (SW1, SW2, and SW3)
ON position = Parameter settings from the EEPROM memory
This switch setting is read when power is applied.
68
7
9
10
11
24 Volt DC
Min Speed 2
Min Speed 1
Min Speed 0
