Balancing Extension Module Chapter 2
Saving, Loading, and
Reviewing Balance
Measurements With the Dynamix 2500 data collector you can save, load (recall), and review the
balance measurements you have taken.
Save a Balance Measurement
The Balancing application lets you save your balance measurements for quick and
easy rebalancing of the same machine at future dates, or to review past balancing
data. The measurement settings and run data are stored with a filename for later
retrieval.
You can save your balancing measurement at any time from the Balance Setup
screen, or from the Correction and Trim Weight Solution screens. Only screens
that have been accessed during the measurement are saved.
Follow these steps to save your balancing measurement.
1. From any screen on which it is available, press F3 (Save).

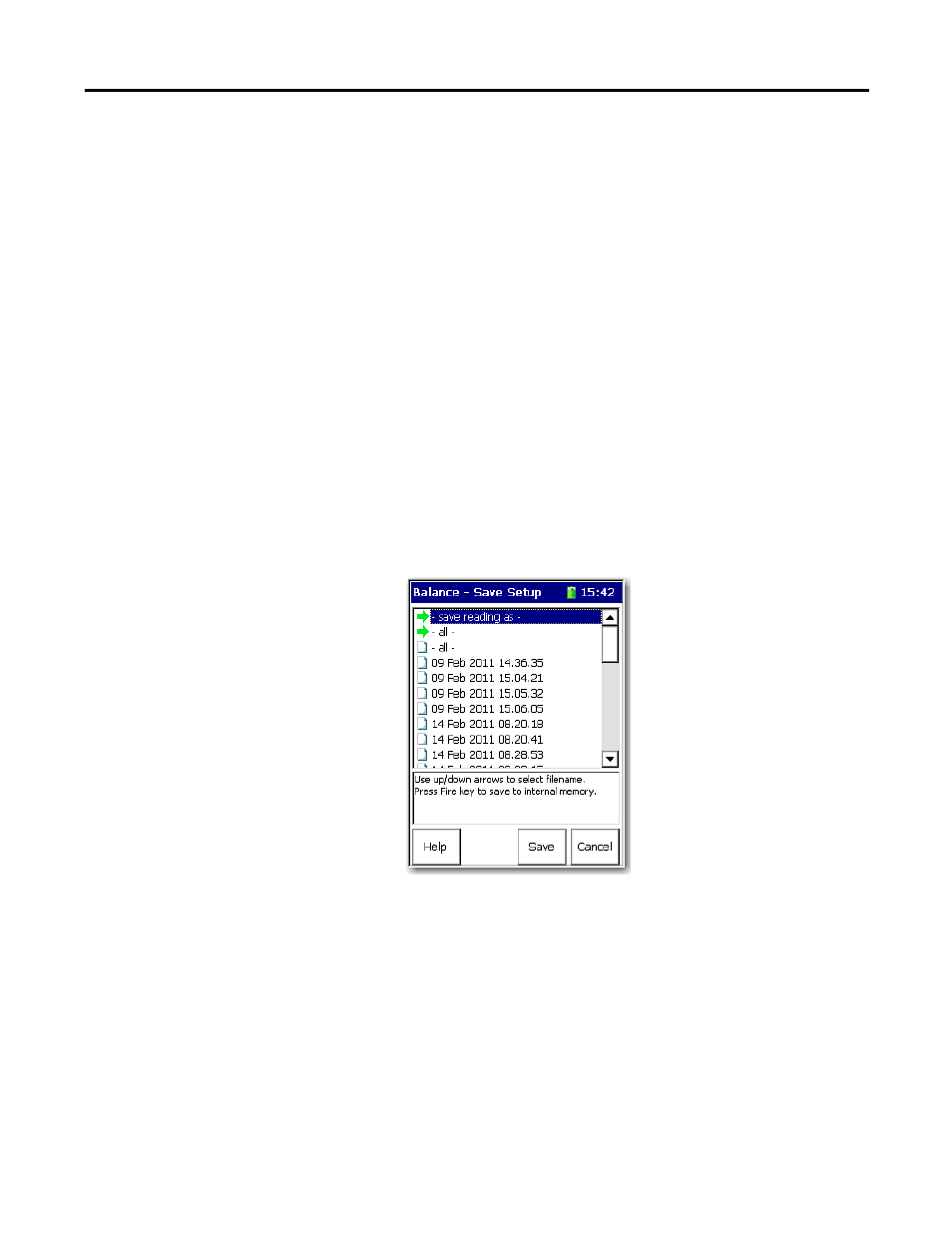

The Balance - Save Setup screen displays the names and dates of all
previously saved balance measurements.
2. Select the –save reading as- line and press F3 (Save) to display the Save As
dialog box.
The current date timestamp is the default filename. Alternatively, you can
highlight an existing filename to overwrite the existing measurement with
the current measurement.
3. Modify the file name as necessary and press OK.
You are returned to the Balance – Save Setup screen, which displays the
new measurement’s filename and date.
