46 Rockwell Automation Publication 1441-UM004A-EN-P - May 2011
Chapter 2 Balancing Extension Module
Two Plane Balancing Procedure Overview
This is an overview of the steps you need to take when performing a two plane
balancing measurement.
1. How to Set Up a Two-Plane Procedure on page 46 .
2. Set-up Options Specific to Two-plane Balancing on page 47 .
3. How to Perform Two-plane Balancing on page 50 .
4. Perform the Initial Runs on page 50 .
5. Two-plane Balancing with One Transducer on page 51 .
6. Perform Trial Run 1 on Both Planes on page 53 .
7. Perform Trial Run 2 on Both Planes on page 54 .
8. Perform Correction Weight Runs on Both Planes on page 55 .
9. Perform Trim Runs on both Planes on page 58 .
How to Set Up a Two-Plane Procedure
Specific differences exist between single and two-plane balancing measurement
field settings. Setup options specific to two-plane procedures are detailed below.
See Single Plane Balancing on page 26 section for all other settings that apply to
both single and two-plane balancing.

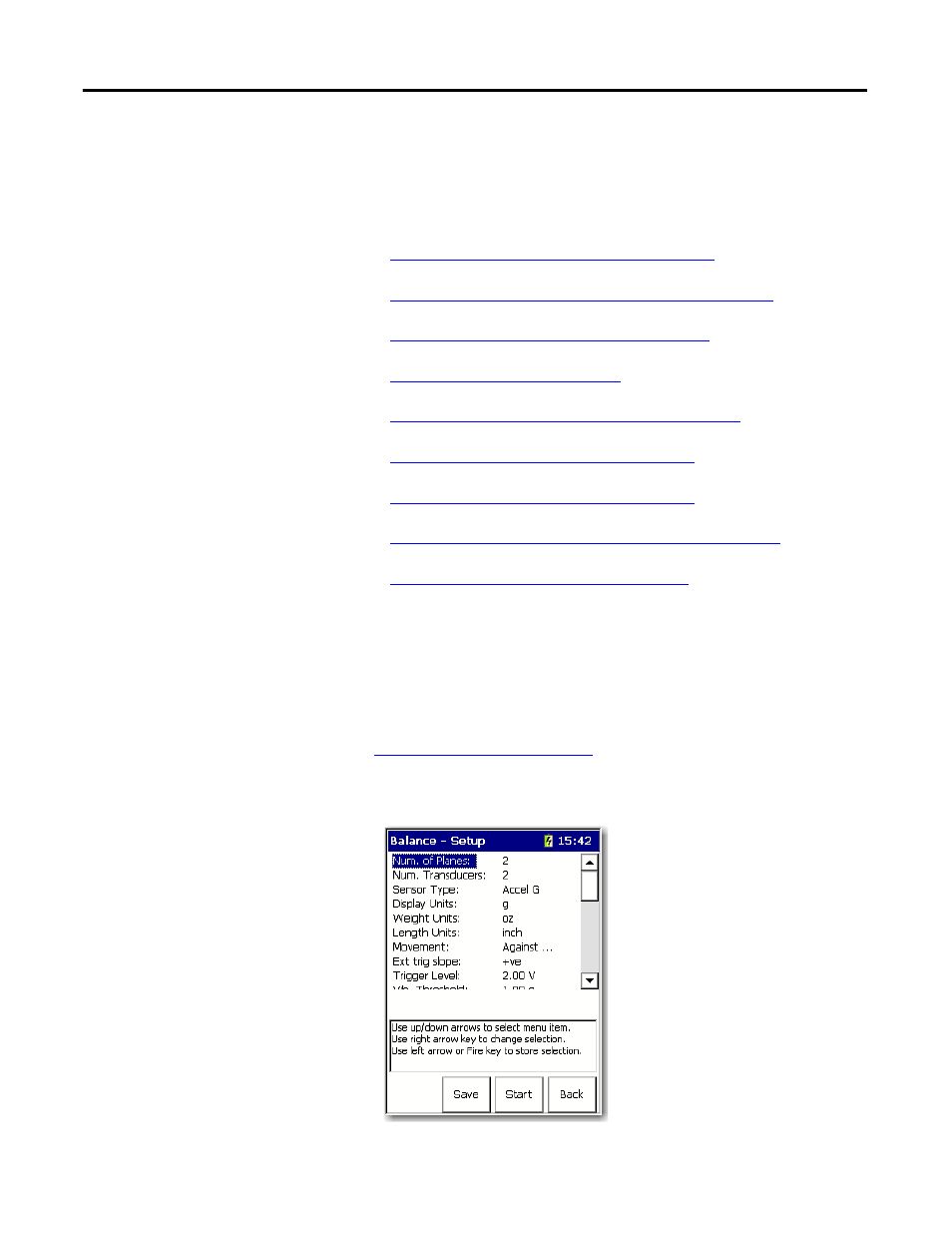

Figure 1 - Balance Setup Screen with 2 Planes Selected.
