Rockwell Automation Publication 1441-UM004A-EN-P - May 2011 37
Balancing Extension Module Chapter 2
Perform a Trim Run
You can repeat trim runs until you are satisfied that you have the finished the
balancing measurement.
Follow these instructions to perform a Trim Run.
1. With the trim weight securely attached, start the machine and press an
Enter button to perform the trim run.
The Trim Run 1 screen displays the amount of residual unbalance with the
trim weight attached.
2. Verify whether the amount of residual unbalance is within specifications
for the machine.
If the amount of residual unbalance is within specifications, you can end
the balance measurement, if not, you should proceed with another trim
run.
3. Press Enter to proceed.
When you press No to the Trim Residual? prompt, the Vibration Summary
screen automatically displays a summary of your measurement’s balancing data.
The Summary function button is available from all balancing screens.
4. Press F2 (Summary) to display your procedure’s Vibration Summary Table.

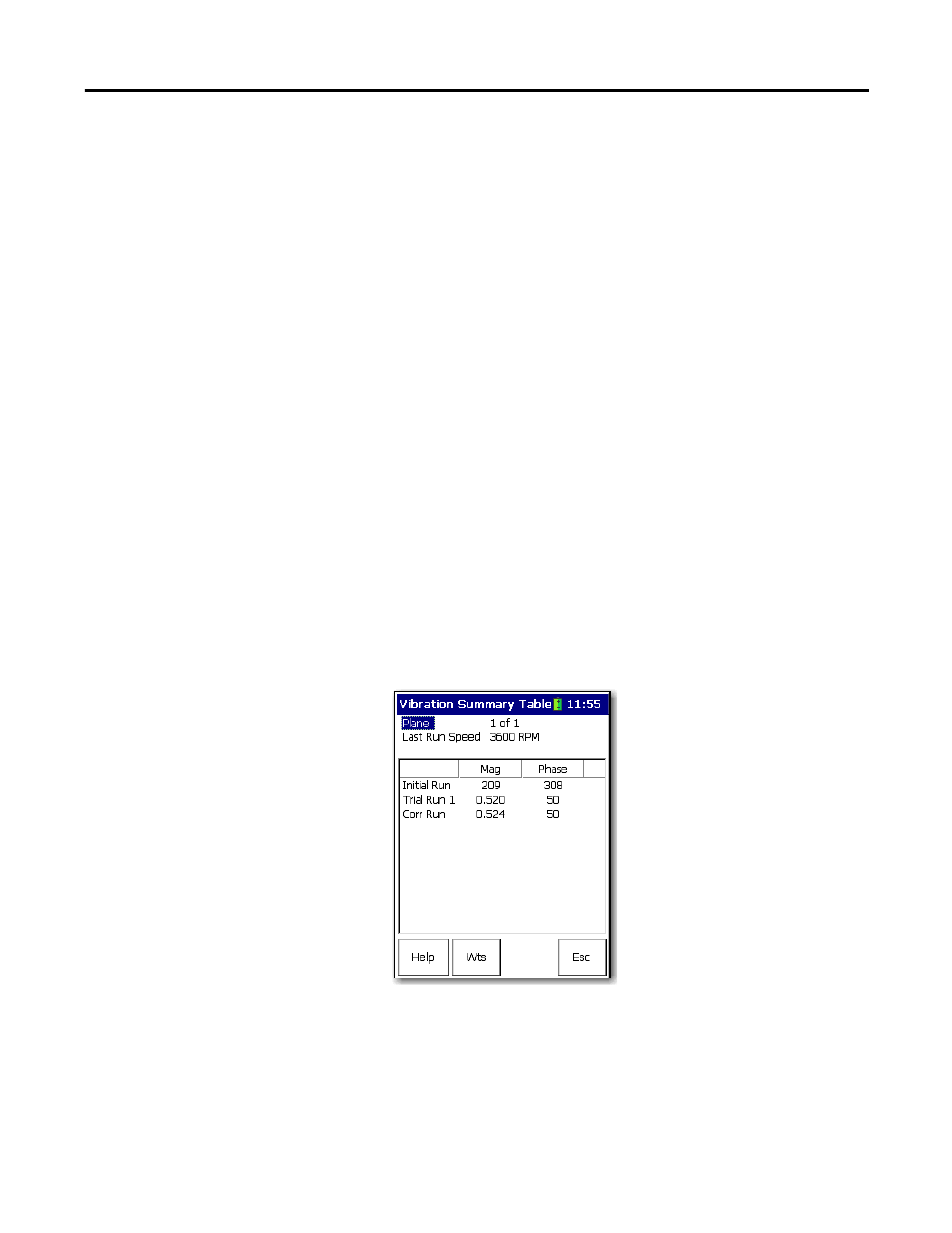

The Vibration Summary Table screen displays all magnitude and phase
values for each run performed during your balancing procedure.
