20 Rockwell Automation Publication 1441-UM004A-EN-P - May 2011
Chapter 2 Balancing Extension Module
Set Up the Balancing
Parameters All balancing measurement parameters are set up from Balance Setup screen.
Follow these steps to go to the Balancing extension module.
1. From the Main Menu, select Balancing and press Enter.

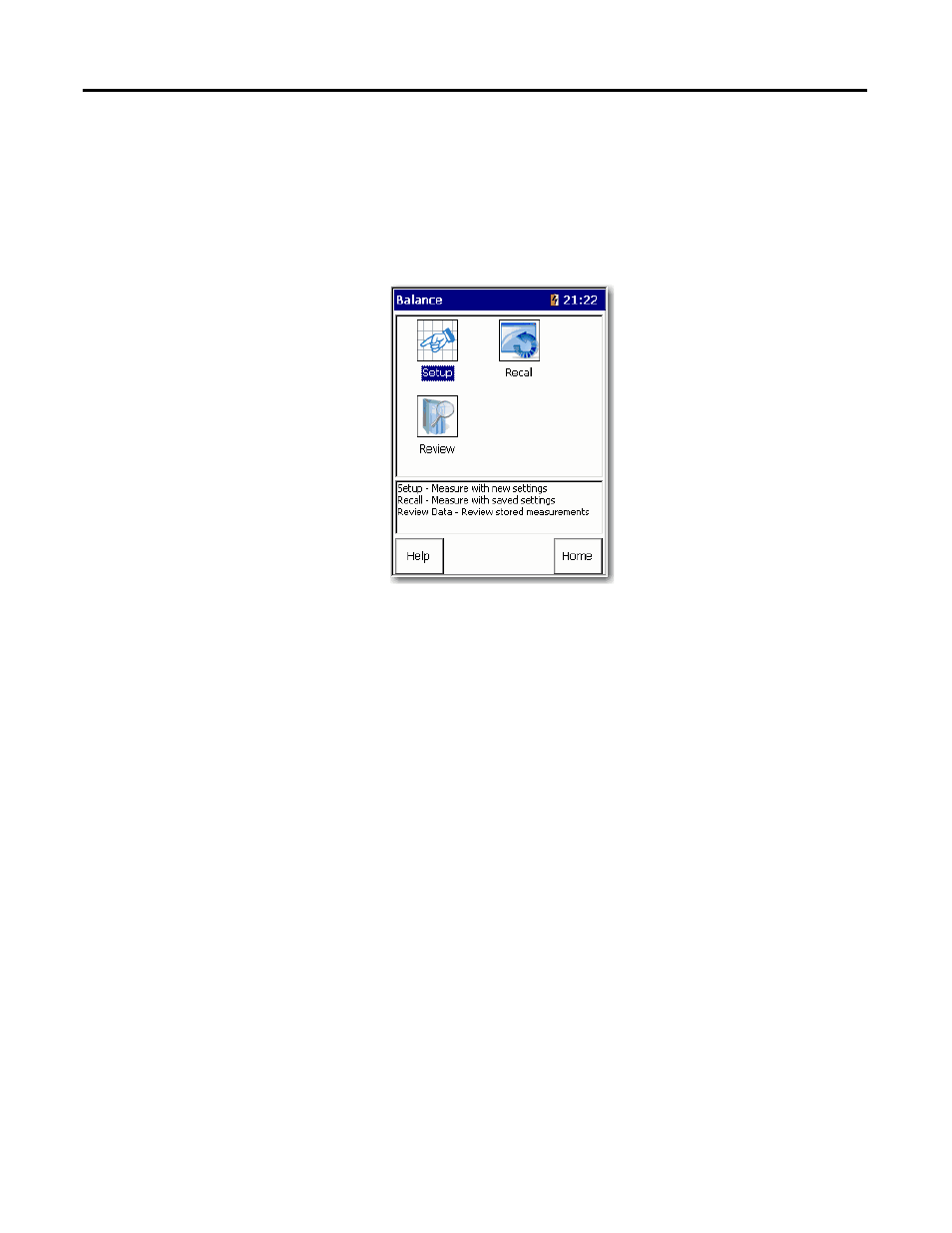

The Balance menu displays.
These are the Balance menu options:
• Setup
Access the Balance - Setup screen where you can set up and perform a new
balancing run.
• Recall
Access the Balance - Load Setup screen where you can select a previously
saved balancing run and perform a new run by using the saved settings.
• Review
Review Data screen where you can review previously stored measurements
or resume a previous balance measurement from the last completed run.
