52 Rockwell Automation Publication 1441-UM004A-EN-P - May 2011
Chapter 2 Balancing Extension Module

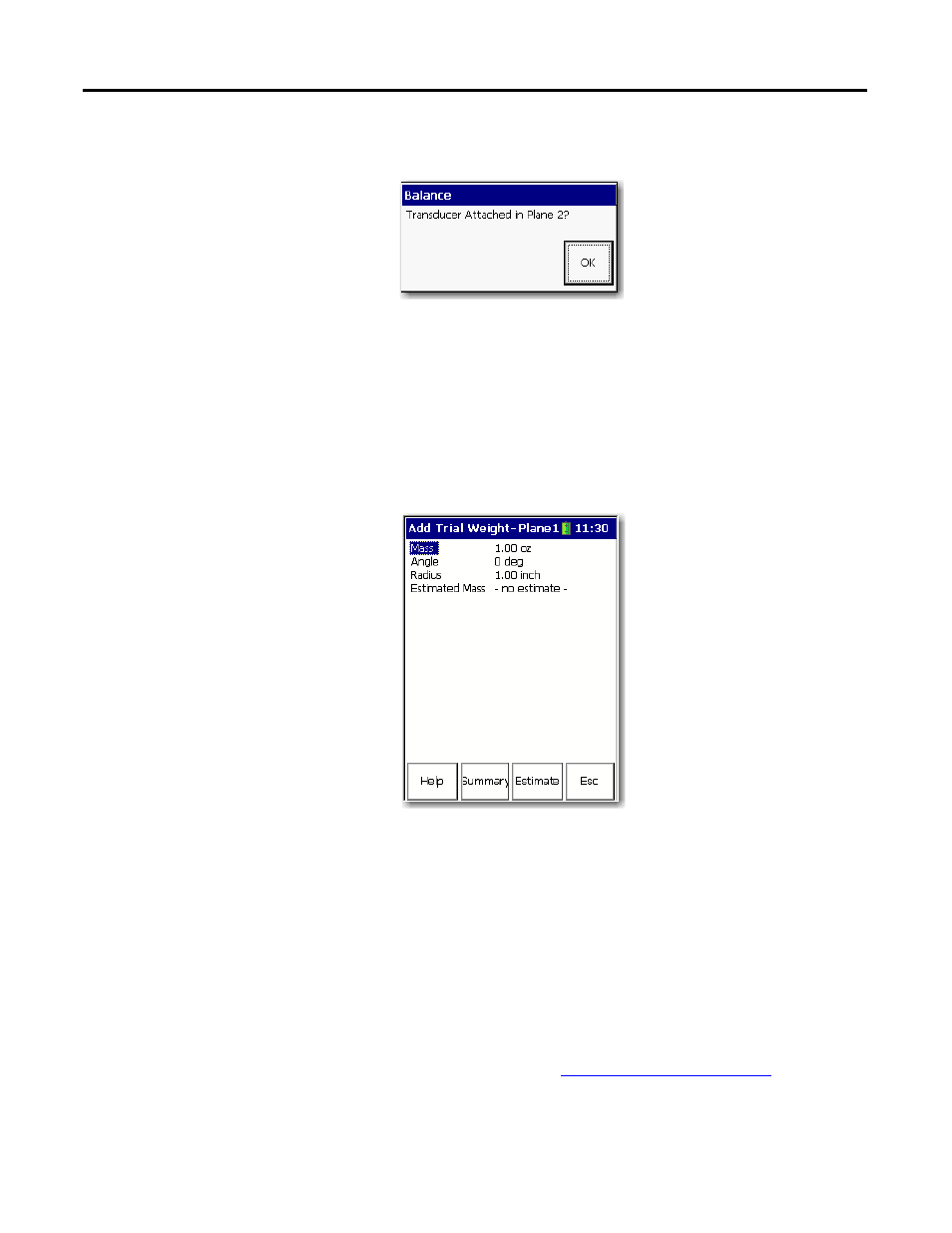

You are prompted to verify the transducer is attached to the bearing
nearest Plane 2.
5. Verify the transducer and Plane 2 and press OK.
The data collector initiates the initial run measurements for Plane 2. The
Initial Run – Plane 2 screen displays the measurement results.
6. From the Initial Run – Plane 2 screen, press Enter.
7. Attach a Trial Weight to Plane 1.
The Add Trial Weight – Plane 1 screen appears.
8. Stop the machine.
9. On the data collector, enter the Mass, Angle and Radius for the trial weight
you are attaching to Plane 1.
• A negative number can be entered if trial weight is removed, instead of
added.
• Trial weights are typically attached at 0°.
• Unless you wish the data collector to estimate a trial weight, the Radius
entry is not necessary, so long as you position the trial, correction, and
trim weights at the same radius.
For more information, see Add the Trial Weight on page 28 .
