9. Buffer Time
The buffer time depends on the capacity and performance of the battery as well as the load current. The diagram
below shows the typical buffer times of the 24V output with the standard battery modules at 20°C.
Buffer time with battery module 1606-XLSBATASSY1 min.
18’30’’
At 5A output current *)
min.
5’30’’
At 10A output current *)
typ.
20’50’’
At 5A output current, see Fig. 9-1 **)
typ.
6’30’’
At 10A output current, see Fig. 9-1 **)
Buffer time with battery module 1606-XLSBATASSY2 min.
96’30’’
At 5A output current *)
min.
37’50”
At 10A output current *)
typ.
126’
At 5A output current, see Fig. 9-1 **)
typ.
53’20”
At 10A output current, see Fig. 9-1 **)
*) Minimum value includes 20% aging of the battery and a cable length of 1.5m with a cross section of 2.5mm
2
between the
battery and the DC-UPS and requires a fully charged (min. 24h) battery.
**) Typical value includes 10% aging of the battery and a cable length of 0.3m with a cross section of 2.5mm
2
between the battery
and the DC-UPS and requires a fully charged (min. 24h) battery.

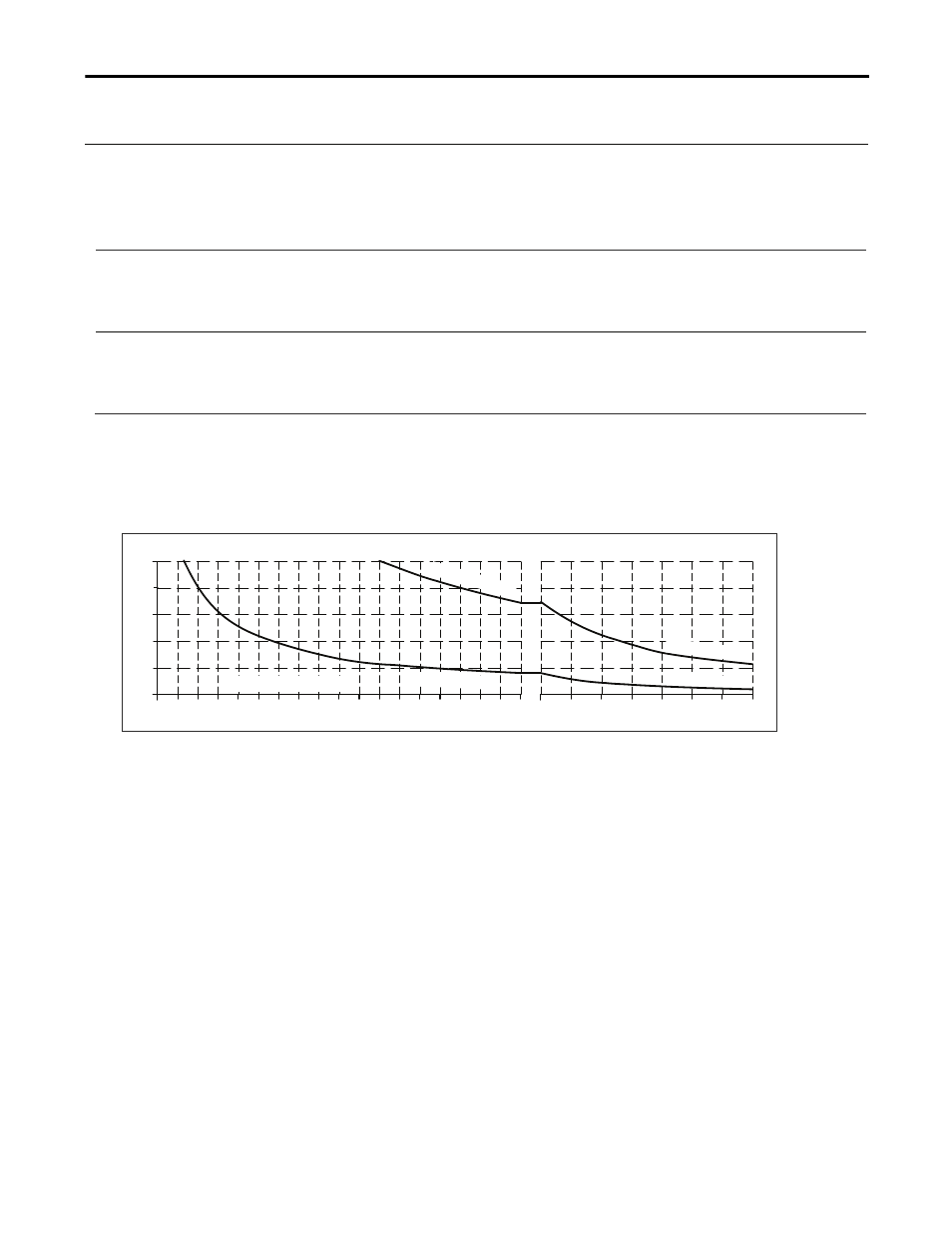

Fig. 9-1 Buffer time vs. 24V output current with the battery modules 1606-XLSBATASSY1 and 1606-XLSBATASSY2
Buffer Current
5
15
2
4
6
8
10A
20
10
25 30 35
45 50
40
55 60 65 70 75 80 85
Buffer Time (Minutes)
1606-XLSBATASSY2 typ.
1606-XLSBATASSY1 typ.
.
12V 7Ah battery
12V 26
A h batt
ery
120 150
210
240
300
Min.
180
270
90
1606-XLSBATASSY1 typ.
1606-XLSBATASSY2 typ.
90
The buffer time is reduced if the 12V output is loaded.
This can be calculated according to the following
example:
Example:
24V, 5A and 12V, 4A load
Step1:
Convert the 12V current to a virtual 22.3V level:
Ratio: 12V/22.3V= 0.54 12V, 4A output converted to 22.3V level: 0.54*4A=2.15A
Step 2: Add the computed current to the actual 24V current:
2.15A+ 5A = 7.15A
Step 3: Determine the buffer time by using the standard buffer time curve
(
)
Fig. 9-1 :
7.15A load with 1606-XLSBATASSY2: Approx. 12 minutes buffer time.
The battery capacity is usually specified in amp-hours (Ah) for a 20h discharging event. The battery discharge is non-
linear (due to the battery chemistry). The higher the discharging current, the lower the appropriable battery capacity.
The magnitude of the reduction depends on the discharging cu rrent as well as on the type of battery. High current
battery types can have up to 50% longer buffer times co mpared to regular batteries when batteries will be
discharged in less than 1 hour. High discharging currents do not necessarily mean high power losses as the
appropriable battery capacity is reduced with such currents. When the battery begins to recharge after a discharging
