22. Environmental Compliance
The unit does not release any silicone and is suitable for use in paint shops.
The unit conforms to the RoHS directive 2002/96/EC.
Electrolytic capacitors included in this unit do not use electrolytes such as Quaternary Ammonium Salt Systems.
Plastic housings and other molded plastic materials are free of halogens.
The materials used in our production process do not include the following toxic chemicals:
Polychlorinated Biphenyl (PCB), Pentachlorophenol (PCP), Polychlorinated naphthalene (PCN), Polybrominated
Biphenyl (PBB), Polybrominated Biphenyl Oxide (PBO), Polybrominated Diphenyl Ether (PBDE), Polychlorinated
Diphenyl Ether (PCDE), Polybrominated Diphenyl Oxid e (PBDO), Cadmium, Asbestos, Mercury, Silica
23. Physical Dimensions and Weight
Width
49mm / 1.93’’
Height
124mm / 4.88’’
Plus height of signal and 12V output connector plug (see Fig. 24-1)
Depth
117mm / 4.61’’
Plus depth of DIN rail
Weight
650g / 1.43lb
DIN Rail
Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.
The DIN rail height must be added to the depth (117mm) to calculate the total required installation
depth.

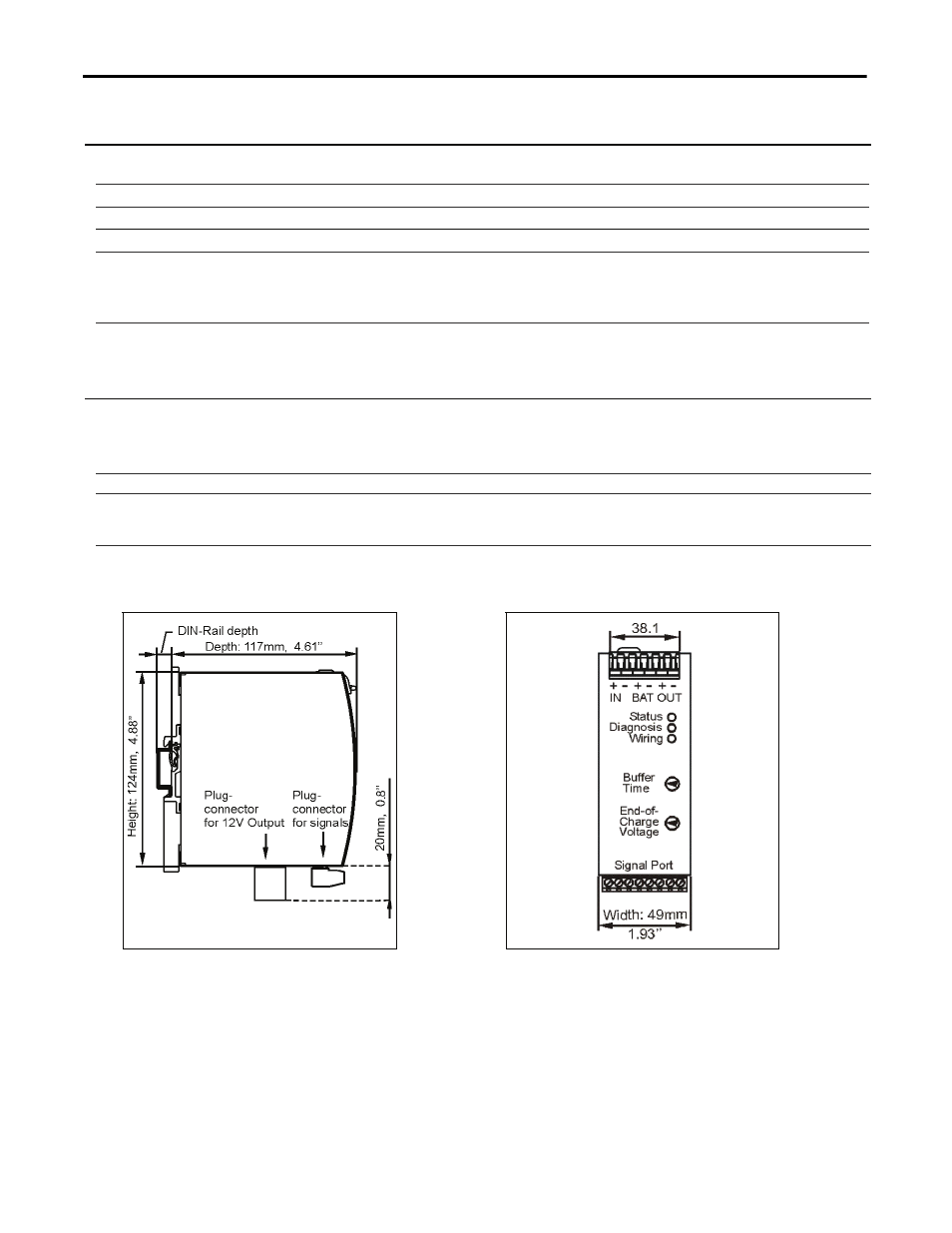

Fig. 23-1 Side view
Fig. 23-2 Front view
