Bulletin 1606 Switched Mode Power Supplies

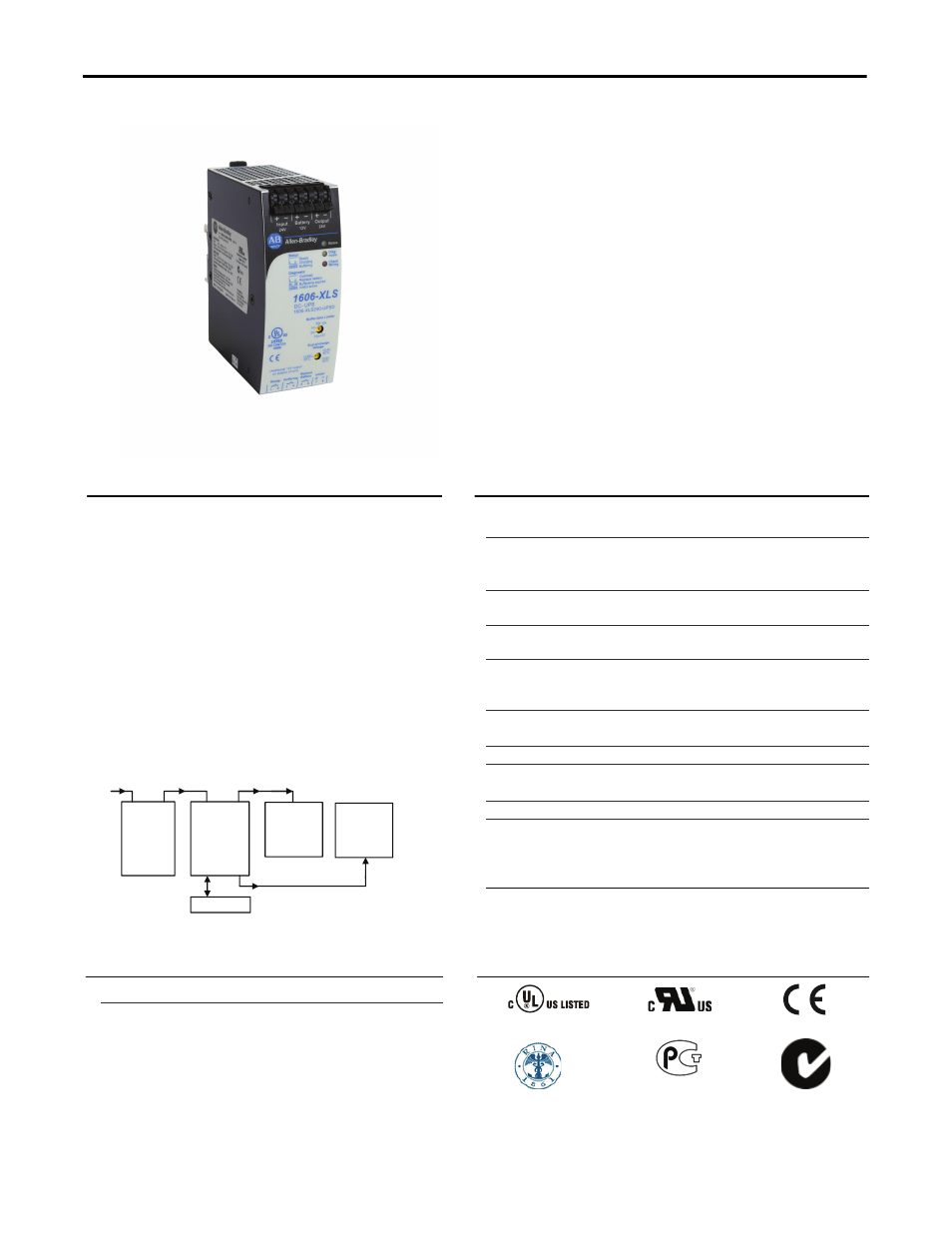

DC-UPS, Dual Output
■
24V DC-UPS With an Additional 12V Output for
Various Applications
■
Only One 12V Battery Required
■
Stable Output Voltage in Buffer Mode
■
Superior Battery Management for Longest Battery Life
■
Comprehensive Diagnostic and Monitoring Functions
■
Replace Battery Signal Included
■
Electronically Overload and Short Circuit Protected
■
50% Power Reserves
■
3 Year Warranty
1.
Description
2.
Specification Quick Reference
Input voltage
24Vdc
Nominal
22.5-30Vdc Input
range
Output voltage
(normal mode)
0.23V lower as
input voltage
Typ., 24V output
12V
12V
output
Output voltage
(buffer mode)
22.25V
12V
24V output at 10A
12V output at 5A
Output current
(normal mode)
0 - 15A
0 - 5A
24V output
12V output
Output current
(buffer mode)
0 - 10A
10 – 15A for 5s
0 - 5A
24V output
24V output
12V output
Total output
power
360W
240W
Normal mode
Buffer mode
Allowed batteries
3.9Ah to 40Ah
VRLA lead acid
Temperature range -25 to +70°C
Operational
Derating 6W/°C +50
to
+70°C
Dimensions 49x124x117mm
WxHxD
typ. 6’30”
7Ah battery module
24V 7A, 12V 5A
Buffer time
typ. 54’
26Ah module
24V 7A, 12V 5A
The 1606-XLS240-UPSD uninterruptible power
supply (UPS) controller along with a standard 24V
power supply and one 12V battery can bridge power
failures or voltage fluctuations. This unit can supply
and bridge both a 24V load as well as a 12V load at
the same time. The 12V is generated by a DC/DC
converter from the 24V output. Therefore, systems that
use 24V control circuits and require 12V for e.g.
remote radio telemetry can be supplied with
only one 1606-XLS240-UPSD DC-UPS controller.
The DC-UPS includes a professional battery
management system which charges and monitors
the battery to achieve the longest battery service life
as well as many diagnostic functions that ensure a
reliable operation of the entire system.
24V
Power
Supply
12V Battery
1606-
XLS240-
UPSD
DC-UPS
Dual
output
24V
Load
AC
24VDC
e.g.: PLC
e.g.: radio
transmitter
12V
Load
12VDC
3.
Catalog Numbers
4.
Certification Marks
DC-UPS
1606-XLS240-UPSD
24V and 12V output
IND. CONT. EQ.
UL 508
UL 60950-1
EMC, LVD
Accessories
1606-XLSBATBR1
1606-XLSBATASSY2
1606-XLSBARBR2
1606-XLB
Battery module 12V 7Ah
Mounting kit w/o battery
Battery module 12V 26Ah
Mounting kit w/o battery
Panel/Wall mount bracket
Marine RINA
GOST R
C-TICK
1606-XLSBATASSY1
