13. Relay Contacts and Inhibit Input
The DC-UPS is equipped with relay contacts and signal inputs for remote monitoring and control of the unit.
Relay contacts:
Ready:
Contact is closed when battery is charged more than 85%, no wiring failure is recognized, input
voltage is sufficient and inhibit signal is inactive.
Buffering:
Contact is closed when unit is buffering.
Replace Battery:
Contact is closed when the unit is powered from the input and the battery quality test (SoH test)
reports a negative result.
Relay contact ratings
max
60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A resistive load
min
1mA at 5Vdc min.
Isolation voltage
max
500Vac, signal port to power port

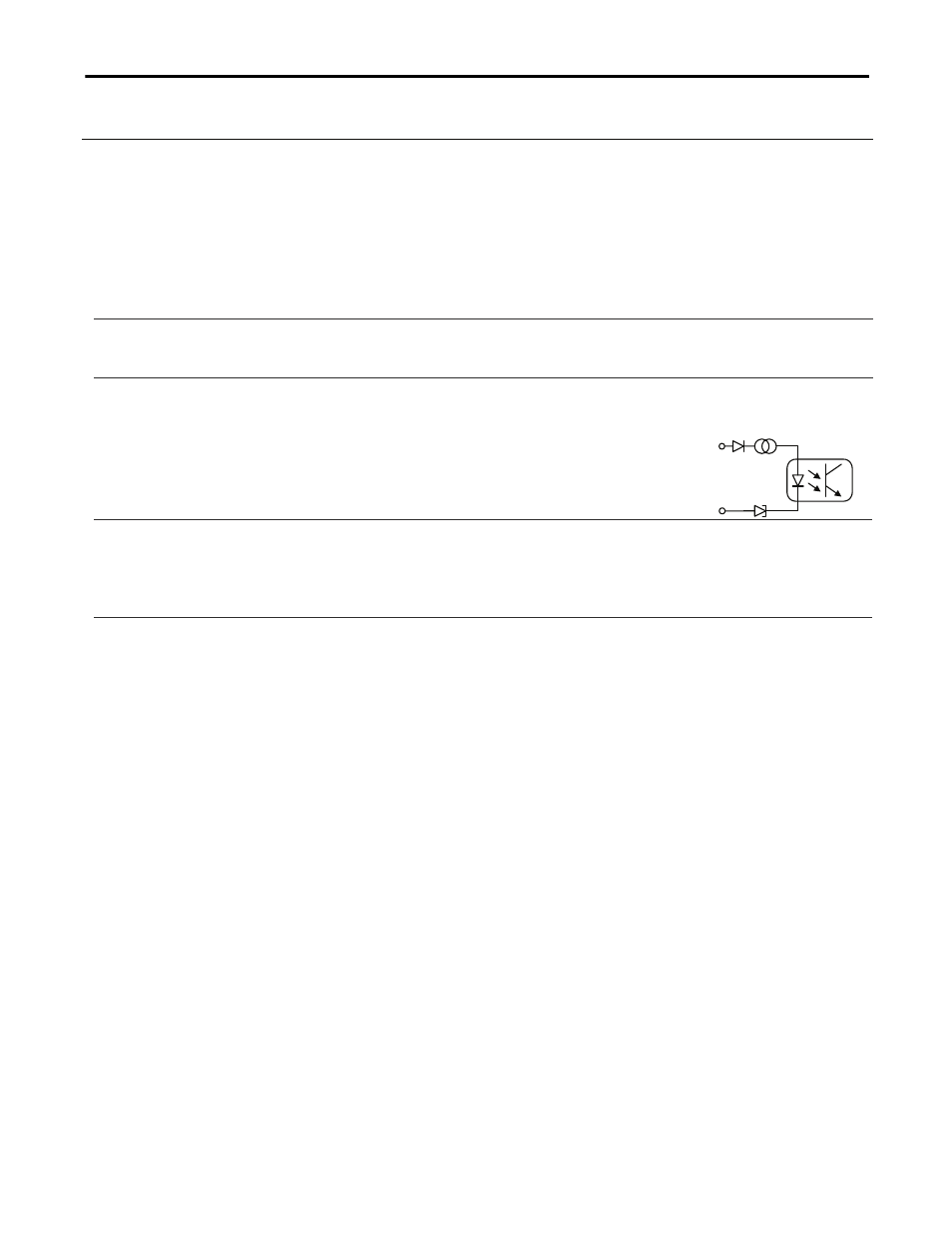

Signal input:
7 +
5,1V
3mA
Inhibit
8 -
Inhibit:
The inhibit input disables buffering. In normal mode, a static signal is
required. In buffer mode, a pulse with a minimum length of 250ms is
required to stop buffering. The inhibit is stored and can be reset by
cycling the input voltage. See also section 26.1 for application hints.
Signal voltage
max. 35Vdc
Signal current
max. 6mA, current limited
Inhibit threshold
min.
6Vdc, buffering is disabled above this threshold level
max. 10Vdc
Isolation
nom. 500Vac, signal port to power port
