Ethernet, Communication, Ethernet communication – Rockwell Automation 1408-EMxx PowerMonitor 1000 Unit User Manual

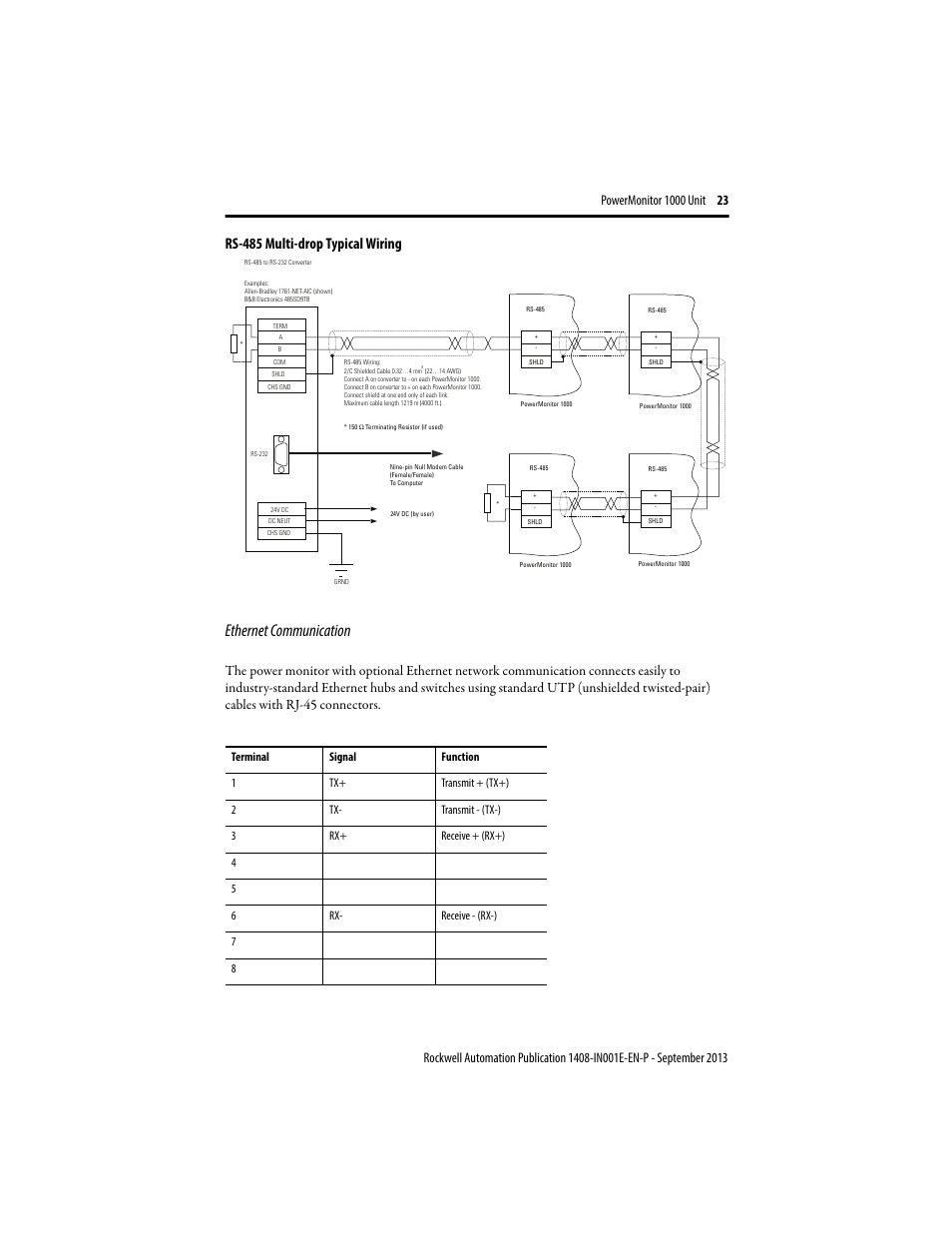

Page 23: Rs-485 multi-drop typical wiring
